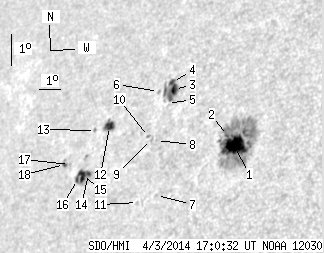

SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.35 | 195.92 | 40.24 | 148.13 | 10.81 | 2.06 | -46.17 | 69.66 | 0.7572 | -166.0 | -170.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 29.86 | 137.08 | 21.86 | 100.23 | 10.51 | 3.71 | -44.51 | 69.38 | 0.7388 | -861.0 | -325.4 | |
| 1.23 | -1.00 | 0.91 | -1.00 | 10.85 | 3.35 | -44.88 | 69.10 | 0.7441 | -241.4 | 999999 | |
| 4.57 | 21.25 | 3.59 | 16.76 | 12.52 | 0.63 | -47.59 | 68.17 | 0.7788 | 875.1 | 325.4 | |
| 1.49 | -3.00 | 1.18 | -3.00 | 12.75 | 0.48 | -47.74 | 67.94 | 0.7812 | 523.5 | 999999 | |
| 0.00 | 0.61 | 0.00 | 0.48 | 12.10 | 0.41 | -47.81 | 68.77 | 0.7795 | -277.0 | -402.3 | |
| 0.00 | 1.41 | 0.00 | 1.12 | 12.52 | 359.89 | -48.33 | 68.46 | 0.7862 | -444.0 | -315.6 | |
| 0.00 | 0.79 | 0.00 | 0.61 | 9.22 | 0.50 | -47.72 | 72.28 | 0.7689 | 591.0 | 607.0 | |
| 0.00 | 0.79 | 0.00 | 0.62 | 10.96 | 0.16 | -48.06 | 70.26 | 0.7782 | -247.0 | -277.6 | |
| 0.00 | 1.58 | 0.00 | 1.25 | 11.01 | 359.92 | -48.30 | 70.28 | 0.7808 | -502.0 | -326.7 | |
| 0.00 | 1.32 | 0.00 | 1.04 | 11.12 | 359.76 | -48.47 | 70.21 | 0.7828 | -441.0 | -329.1 | |
| 0.00 | 0.88 | 0.00 | 0.69 | 9.08 | 359.66 | -48.56 | 72.76 | 0.7774 | 446.0 | 404.8 | |
| 5.80 | 9.13 | 4.80 | 7.57 | 11.61 | 357.80 | -50.42 | 70.36 | 0.8039 | 555.8 | 209.7 | |
| 0.00 | 1.41 | 0.00 | 1.18 | 11.54 | 357.14 | -51.09 | 70.67 | 0.8101 | -554.0 | -467.0 | |
| 1.67 | 15.19 | 1.39 | 12.73 | 10.20 | 357.11 | -51.11 | 72.27 | 0.8065 | 784.1 | 450.2 | |
| 5.71 | -14.00 | 4.79 | -14.00 | 10.17 | 356.83 | -51.40 | 72.41 | 0.8092 | 722.2 | 999999 | |
| 0.97 | -14.00 | 0.81 | -14.00 | 10.06 | 356.60 | -51.62 | 72.61 | 0.8110 | 370.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.13 | 10.58 | 356.09 | -52.14 | 72.17 | 0.8174 | 570.0 | 394.1 | |
| 1.05 | 3.16 | 0.91 | 2.72 | 10.60 | 355.83 | -52.39 | 72.22 | 0.8199 | 490.7 | 364.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
