SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.84 | 26.88 | 0.99 | 14.64 | 5.06 | 26.76 | -21.46 | 62.56 | 0.4130 | -237.4 | -454.5 | |
|
previous
or next observation for the same group /

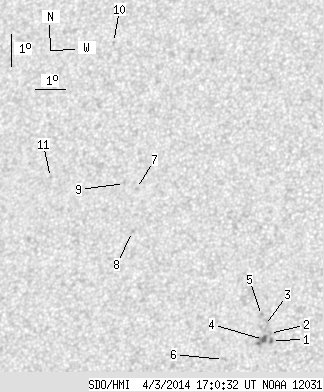

back to the solar disc SDO HMI 2014-04-03 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.08 | 3.64 | 28.29 | -19.94 | 63.77 | 0.3810 | -1109.0 | -911.5 | |
| 0.00 | 1.58 | 0.00 | 0.85 | 3.85 | 28.22 | -20.01 | 63.35 | 0.3836 | -827.0 | -814.8 | |
| 0.00 | 7.03 | 0.00 | 3.77 | 4.10 | 28.05 | -20.17 | 62.97 | 0.3878 | -212.0 | -615.5 | |
| 1.84 | 6.50 | 0.99 | 3.49 | 3.68 | 28.03 | -20.19 | 63.98 | 0.3850 | -1163.2 | -847.7 | |
| 0.00 | 1.84 | 0.00 | 0.99 | 4.41 | 27.95 | -20.28 | 62.39 | 0.3916 | -795.0 | -750.0 | |
| 0.00 | 1.84 | 0.00 | 1.00 | 3.12 | 26.76 | -21.47 | 66.65 | 0.3997 | -663.0 | -607.4 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 8.51 | 23.67 | -24.55 | 58.96 | 0.4815 | 792.0 | 676.4 | |
| 0.00 | 1.76 | 0.00 | 0.99 | 7.18 | 23.62 | -24.60 | 61.44 | 0.4722 | 768.0 | 508.8 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 8.68 | 23.26 | -24.96 | 59.08 | 0.4883 | 534.0 | 446.0 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 13.14 | 22.48 | -25.74 | 52.57 | 0.5347 | -608.0 | -486.7 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 9.00 | 20.73 | -27.49 | 60.96 | 0.5236 | 663.0 | 499.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
