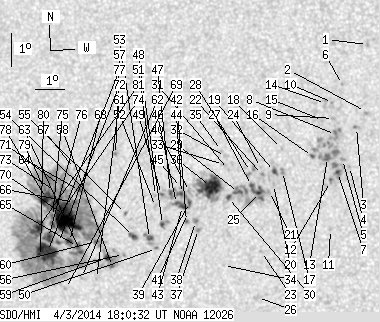

SDO HMI 2014-04-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 198.72 | 907.65 | 114.31 | 520.98 | -11.30 | 17.51 | -30.16 | 101.50 | 0.5041 | -262.9 | -145.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.49 | 0.00 | 0.79 | -6.62 | 26.69 | -20.98 | 91.79 | 0.3574 | 901.0 | 742.6 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -8.62 | 26.52 | -21.15 | 97.37 | 0.3613 | 703.0 | 742.9 | |
| 0.00 | 2.28 | 0.00 | 1.22 | -9.09 | 26.20 | -21.47 | 98.58 | 0.3671 | 1035.0 | 836.5 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -10.25 | 25.89 | -21.78 | 101.60 | 0.3744 | 859.0 | 651.0 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -10.03 | 25.68 | -21.99 | 100.94 | 0.3772 | 1022.0 | 886.6 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -7.78 | 25.82 | -21.85 | 94.96 | 0.3717 | 741.0 | 601.5 | |
| 1.32 | 11.06 | 0.71 | 5.92 | -10.41 | 25.48 | -22.19 | 101.87 | 0.3812 | 1149.9 | 868.4 | |
| 0.00 | 7.46 | 0.00 | 3.99 | -9.27 | 25.50 | -22.17 | 98.88 | 0.3786 | 1072.0 | 862.3 | |
| 0.00 | 1.93 | 0.00 | 1.03 | -8.79 | 25.47 | -22.20 | 97.60 | 0.3784 | 868.0 | 675.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -8.31 | 25.46 | -22.21 | 96.32 | 0.3779 | 850.0 | 721.7 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -12.11 | 25.11 | -22.56 | 106.04 | 0.3920 | 793.0 | 626.5 | |
| 0.00 | 2.20 | 0.00 | 1.18 | -10.67 | 25.23 | -22.44 | 102.44 | 0.3858 | 872.0 | 777.9 | |
| 2.28 | 30.21 | 1.22 | 16.20 | -9.95 | 25.19 | -22.48 | 100.56 | 0.3848 | 1064.6 | 797.7 | |
| 0.00 | 3.86 | 0.00 | 2.07 | -8.33 | 25.23 | -22.44 | 96.34 | 0.3816 | 680.0 | 575.7 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -8.83 | 25.10 | -22.57 | 97.64 | 0.3843 | 700.0 | 614.2 | |
| 0.61 | 1.76 | 0.33 | 0.95 | -9.90 | 24.70 | -22.97 | 100.27 | 0.3924 | 873.0 | 736.7 | |
| 0.00 | 2.81 | 0.00 | 1.52 | -10.30 | 23.67 | -24.00 | 100.96 | 0.4094 | 985.0 | 877.3 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -9.61 | 23.69 | -23.98 | 99.28 | 0.4078 | 741.0 | 603.3 | |
| 1.67 | 3.16 | 0.91 | 1.72 | -10.29 | 23.40 | -24.27 | 100.85 | 0.4135 | 1019.8 | 828.5 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -10.68 | 23.34 | -24.33 | 101.76 | 0.4154 | 763.0 | 636.9 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -10.88 | 23.18 | -24.49 | 102.19 | 0.4182 | 114.0 | 140.1 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -10.36 | 22.99 | -24.68 | 100.90 | 0.4200 | 1007.0 | 765.4 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -12.67 | 22.74 | -24.93 | 106.18 | 0.4300 | 676.0 | 570.2 | |
| 0.00 | 0.79 | 0.00 | 0.43 | -10.15 | 22.95 | -24.73 | 100.38 | 0.4203 | 634.0 | 497.7 | |
| 1.93 | 34.86 | 1.06 | 19.10 | -10.90 | 22.85 | -24.82 | 102.11 | 0.4234 | 1077.5 | 606.2 | |
| 0.00 | 3.42 | 0.00 | 1.89 | -14.05 | 22.45 | -25.22 | 109.13 | 0.4394 | 691.0 | 538.1 | |
| 0.97 | -25.00 | 0.53 | -25.00 | -10.67 | 22.60 | -25.07 | 101.51 | 0.4268 | 900.4 | 999999 | |
| 0.00 | 5.53 | 0.00 | 3.03 | -10.25 | 22.60 | -25.07 | 100.53 | 0.4259 | 493.0 | 729.2 | |
| 2.20 | -25.00 | 1.21 | -25.00 | -10.86 | 22.14 | -25.53 | 101.80 | 0.4342 | 779.5 | 999999 | |
| 1.49 | -25.00 | 0.82 | -25.00 | -11.00 | 21.79 | -25.88 | 102.00 | 0.4399 | 562.7 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -10.16 | 21.87 | -25.80 | 100.11 | 0.4371 | 618.0 | 469.0 | |
| 0.00 | 2.81 | 0.00 | 1.55 | -9.76 | 21.80 | -25.87 | 99.20 | 0.4375 | 668.0 | 610.3 | |
| 0.00 | 2.72 | 0.00 | 1.50 | -10.00 | 21.71 | -25.96 | 99.72 | 0.4392 | 779.0 | 587.5 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -13.03 | 21.40 | -26.27 | 106.37 | 0.4513 | 598.0 | 443.1 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -9.58 | 21.68 | -25.99 | 98.75 | 0.4390 | 701.0 | 609.7 | |
| 28.54 | 54.36 | 15.80 | 30.10 | -10.64 | 21.21 | -26.46 | 101.02 | 0.4480 | 998.1 | 401.9 | |
| 0.00 | 2.37 | 0.00 | 1.32 | -11.90 | 20.67 | -27.00 | 103.64 | 0.4590 | -1027.0 | -767.1 | |
| 0.00 | 3.16 | 0.00 | 1.76 | -11.66 | 20.59 | -27.08 | 103.08 | 0.4596 | -944.0 | -703.1 | |
| 1.14 | 30.47 | 0.64 | 17.05 | -11.08 | 20.45 | -27.22 | 101.79 | 0.4605 | 842.1 | 451.1 | |
| 0.00 | 3.25 | 0.00 | 1.81 | -10.75 | 20.48 | -27.19 | 101.08 | 0.4593 | 607.0 | 321.6 | |
| 0.00 | 0.88 | 0.00 | 0.49 | -11.41 | 20.35 | -27.33 | 102.46 | 0.4627 | 504.0 | 408.2 | |
| 0.61 | 1.67 | 0.34 | 0.93 | -11.64 | 20.29 | -27.39 | 102.95 | 0.4642 | 530.7 | 367.9 | |
| 2.72 | -39.00 | 1.52 | -39.00 | -11.19 | 20.20 | -27.47 | 101.95 | 0.4645 | 822.0 | 999999 | |
| 1.14 | -39.00 | 0.64 | -39.00 | -10.80 | 20.20 | -27.47 | 101.11 | 0.4637 | 852.0 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.88 | -10.62 | 20.22 | -27.45 | 100.72 | 0.4631 | 396.0 | 388.6 | |
| 1.05 | -39.00 | 0.59 | -39.00 | -11.09 | 20.00 | -27.67 | 101.68 | 0.4673 | 581.3 | 999999 | |
| 1.41 | -39.00 | 0.79 | -39.00 | -10.75 | 19.83 | -27.84 | 100.91 | 0.4692 | 732.1 | 999999 | |
| 1.41 | 4.48 | 0.79 | 2.52 | -11.69 | 19.45 | -28.22 | 102.79 | 0.4768 | -931.2 | -561.4 | |
| 0.61 | -39.00 | 0.35 | -39.00 | -10.79 | 19.51 | -28.16 | 100.92 | 0.4741 | 461.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.79 | -12.40 | 19.16 | -28.51 | 104.17 | 0.4828 | 614.0 | 431.5 | |
| 0.00 | 0.53 | 0.00 | 0.30 | -10.81 | 19.30 | -28.37 | 100.91 | 0.4773 | 411.0 | 200.5 | |
| 0.00 | 1.93 | 0.00 | 1.09 | -11.14 | 19.27 | -28.40 | 101.59 | 0.4784 | -274.0 | -113.3 | |
| 2.20 | 8.43 | 1.24 | 4.77 | -12.09 | 18.95 | -28.72 | 103.46 | 0.4851 | -1004.6 | -651.6 | |
| 2.99 | 4.83 | 1.70 | 2.75 | -12.00 | 18.40 | -29.27 | 103.11 | 0.4931 | -1025.9 | -809.0 | |
| 0.35 | 1.32 | 0.20 | 0.75 | -11.29 | 18.20 | -29.47 | 101.64 | 0.4946 | -772.5 | -609.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -12.52 | 17.98 | -29.69 | 104.03 | 0.5004 | 453.0 | 369.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -9.50 | 18.04 | -29.63 | 98.00 | 0.4944 | -968.0 | -854.7 | |
| 0.97 | 644.02 | 0.55 | 376.02 | -12.86 | 17.55 | -30.12 | 104.56 | 0.5076 | 242.9 | -380.2 | |
| 2.90 | -58.00 | 1.67 | -58.00 | -12.58 | 17.41 | -30.27 | 103.97 | 0.5089 | -1107.6 | 999999 | |
| 1.23 | -58.00 | 0.71 | -58.00 | -12.07 | 17.08 | -30.59 | 102.90 | 0.5126 | -1075.9 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.41 | -13.19 | 16.93 | -30.74 | 105.00 | 0.5173 | 483.0 | 431.2 | |
| 0.00 | 1.49 | 0.00 | 0.87 | -13.12 | 16.40 | -31.27 | 104.72 | 0.5248 | -671.0 | -530.5 | |
| 1.67 | -58.00 | 0.97 | -58.00 | -12.34 | 16.47 | -31.20 | 103.26 | 0.5220 | -1077.3 | 999999 | |
| 1.84 | -58.00 | 1.06 | -58.00 | -10.51 | 16.66 | -31.01 | 99.78 | 0.5161 | -1103.8 | 999999 | |
| 2.63 | -58.00 | 1.53 | -58.00 | -12.19 | 16.38 | -31.29 | 102.94 | 0.5229 | -1105.6 | 999999 | |
| 2.02 | -58.00 | 1.17 | -58.00 | -10.86 | 16.44 | -31.23 | 100.42 | 0.5198 | -986.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -9.84 | 16.56 | -31.11 | 98.47 | 0.5168 | -670.0 | -549.5 | |
| 3.60 | -58.00 | 2.09 | -58.00 | -12.02 | 16.12 | -31.55 | 102.56 | 0.5264 | -986.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.82 | -13.42 | 15.78 | -31.90 | 105.09 | 0.5344 | -684.0 | -532.6 | |
| 53.83 | -58.00 | 31.31 | -58.00 | -11.23 | 16.04 | -31.63 | 101.04 | 0.5262 | -1216.2 | 999999 | |
| 1.58 | -58.00 | 0.92 | -58.00 | -10.35 | 16.04 | -31.63 | 99.38 | 0.5250 | -826.8 | 999999 | |
| 1.32 | -58.00 | 0.77 | -58.00 | -12.03 | 15.72 | -31.95 | 102.48 | 0.5322 | -959.1 | 999999 | |
| 1.05 | -58.00 | 0.61 | -58.00 | -10.46 | 15.77 | -31.90 | 99.54 | 0.5290 | -698.1 | 999999 | |
| 2.81 | -58.00 | 1.64 | -58.00 | -11.47 | 15.58 | -32.09 | 101.41 | 0.5333 | -676.7 | 999999 | |
| 1.41 | -58.00 | 0.82 | -58.00 | -11.23 | 15.61 | -32.06 | 100.97 | 0.5325 | -664.8 | 999999 | |
| 6.85 | -58.00 | 4.01 | -58.00 | -11.85 | 15.38 | -32.29 | 102.08 | 0.5368 | -941.9 | 999999 | |
| 23.97 | -58.00 | 14.07 | -58.00 | -12.27 | 15.29 | -32.38 | 102.83 | 0.5389 | -953.0 | 999999 | |
| 11.24 | -58.00 | 6.57 | -58.00 | -10.68 | 15.46 | -32.21 | 99.91 | 0.5339 | -809.3 | 999999 | |
| 0.97 | -58.00 | 0.56 | -58.00 | -10.41 | 15.42 | -32.25 | 99.39 | 0.5341 | -753.7 | 999999 | |
| 5.53 | -58.00 | 3.26 | -58.00 | -12.41 | 15.01 | -32.66 | 103.02 | 0.5430 | -864.9 | 999999 | |
| 14.66 | -58.00 | 8.63 | -58.00 | -11.56 | 15.02 | -32.65 | 101.46 | 0.5414 | -766.0 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
