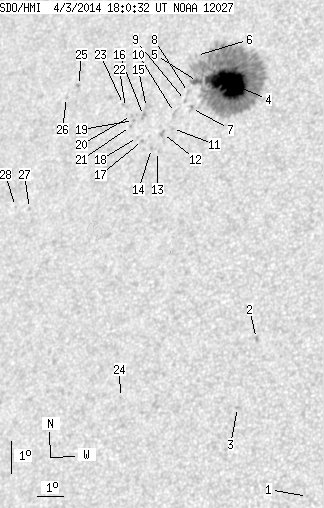

SDO HMI 2014-04-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 62.26 | 392.46 | 39.37 | 248.82 | 12.28 | 13.75 | -33.92 | 61.04 | 0.6256 | -626.7 | -314.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 18:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.61 | -0.44 | 17.67 | -30.00 | 79.91 | 0.5099 | -603.0 | -504.2 | |
| 0.00 | 1.67 | 0.00 | 0.99 | 4.46 | 15.78 | -31.89 | 71.95 | 0.5561 | 769.0 | 662.2 | |
| 0.00 | 1.41 | 0.00 | 0.84 | 2.40 | 15.18 | -32.49 | 75.82 | 0.5557 | 674.0 | 494.3 | |
| 59.36 | 356.08 | 37.51 | 225.35 | 12.47 | 14.04 | -33.63 | 60.56 | 0.6232 | -1320.4 | -392.7 | |
| 2.90 | -4.00 | 1.86 | -4.00 | 12.61 | 12.83 | -34.84 | 61.22 | 0.6384 | -642.7 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.85 | 13.44 | 12.66 | -35.01 | 60.18 | 0.6455 | 185.0 | 155.8 | |
| 0.00 | 2.11 | 0.00 | 1.35 | 11.77 | 12.73 | -34.94 | 62.48 | 0.6345 | -486.0 | -276.8 | |
| 0.00 | 2.20 | 0.00 | 1.41 | 12.28 | 12.54 | -35.13 | 61.88 | 0.6398 | -268.0 | -254.5 | |
| 0.00 | 1.58 | 0.00 | 1.02 | 12.04 | 12.47 | -35.20 | 62.28 | 0.6392 | -527.0 | -308.6 | |
| 0.00 | 3.34 | 0.00 | 2.15 | 11.68 | 12.10 | -35.57 | 63.01 | 0.6415 | -283.0 | -148.5 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 11.18 | 12.10 | -35.57 | 63.73 | 0.6387 | 323.0 | 278.9 | |
| 0.00 | 2.63 | 0.00 | 1.70 | 11.05 | 11.74 | -35.93 | 64.15 | 0.6422 | 471.0 | 590.2 | |
| 0.00 | 0.70 | 0.00 | 0.45 | 10.49 | 11.63 | -36.04 | 65.01 | 0.6406 | 402.0 | 440.1 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 10.60 | 11.39 | -36.28 | 65.00 | 0.6441 | 572.0 | 515.8 | |
| 0.00 | 0.97 | 0.00 | 0.63 | 11.92 | 11.00 | -36.67 | 63.39 | 0.6558 | 747.0 | 634.6 | |
| 0.00 | 2.90 | 0.00 | 1.90 | 11.67 | 10.93 | -36.74 | 63.78 | 0.6554 | 814.0 | 705.9 | |
| 0.00 | 1.14 | 0.00 | 0.74 | 10.88 | 11.01 | -36.66 | 64.84 | 0.6502 | 678.0 | 539.2 | |
| 0.00 | 1.23 | 0.00 | 0.80 | 10.99 | 10.80 | -36.87 | 64.81 | 0.6532 | 512.0 | 433.1 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 11.54 | 10.56 | -37.11 | 64.19 | 0.6589 | 727.0 | 600.2 | |
| 0.00 | 1.41 | 0.00 | 0.92 | 11.70 | 10.46 | -37.21 | 64.02 | 0.6610 | 627.0 | 536.4 | |
| 0.00 | 1.14 | 0.00 | 0.75 | 11.36 | 10.48 | -37.19 | 64.49 | 0.6590 | 568.0 | 448.0 | |
| 0.00 | 0.44 | 0.00 | 0.29 | 11.97 | 10.19 | -37.48 | 63.81 | 0.6657 | 482.0 | 447.4 | |
| 0.00 | 1.05 | 0.00 | 0.70 | 12.08 | 10.09 | -37.58 | 63.73 | 0.6673 | 494.0 | 438.8 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 2.98 | 10.89 | -36.78 | 76.74 | 0.6166 | 455.0 | 359.0 | |
| 0.00 | 1.49 | 0.00 | 1.02 | 12.81 | 8.19 | -39.48 | 63.86 | 0.6929 | 666.0 | 564.1 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 12.47 | 7.78 | -39.89 | 64.55 | 0.6959 | 568.0 | 500.8 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 9.07 | 6.84 | -40.83 | 69.61 | 0.6912 | 634.0 | 511.5 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 9.18 | 6.26 | -41.41 | 69.74 | 0.6984 | 554.0 | 449.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
