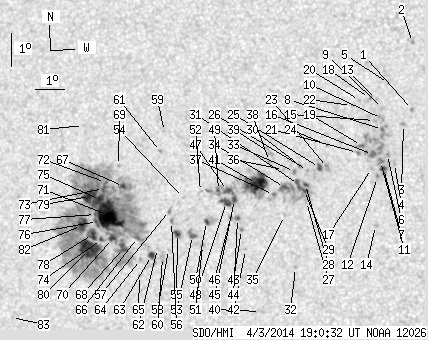

SDO HMI 2014-04-03 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 186.45 | 913.71 | 106.29 | 521.31 | -11.30 | 17.64 | -29.48 | 101.64 | 0.4940 | -165.6 | -154.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.88 | -8.65 | 26.58 | -20.54 | 97.59 | 0.3514 | 931.0 | 822.1 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -6.64 | 26.69 | -20.43 | 91.84 | 0.3485 | 931.0 | 792.6 | |
| 0.00 | 2.46 | 0.00 | 1.30 | -9.09 | 26.26 | -20.85 | 98.74 | 0.3572 | 1013.0 | 803.9 | |
| 0.00 | 2.28 | 0.00 | 1.21 | -10.24 | 25.89 | -21.23 | 101.80 | 0.3655 | 838.0 | 664.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -7.84 | 25.85 | -21.27 | 95.18 | 0.3624 | 672.0 | 569.0 | |
| 0.00 | 1.93 | 0.00 | 1.03 | -9.96 | 25.68 | -21.43 | 100.96 | 0.3682 | 1123.0 | 899.0 | |
| 1.93 | 5.36 | 1.03 | 2.86 | -10.38 | 25.52 | -21.60 | 102.01 | 0.3717 | 1098.6 | 846.4 | |
| 0.53 | 39.87 | 0.28 | 21.28 | -9.21 | 25.57 | -21.55 | 98.88 | 0.3685 | 1077.5 | 832.5 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -8.58 | 25.61 | -21.51 | 97.18 | 0.3670 | 831.0 | 702.8 | |
| 0.00 | 3.42 | 0.00 | 1.82 | -8.88 | 25.56 | -21.56 | 97.98 | 0.3682 | 739.0 | 684.0 | |
| 0.00 | 3.60 | 0.00 | 1.92 | -10.16 | 25.44 | -21.68 | 101.41 | 0.3725 | 1094.0 | 965.8 | |
| 0.00 | 1.84 | 0.00 | 0.99 | -10.64 | 25.31 | -21.81 | 102.62 | 0.3758 | 885.0 | 783.8 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.30 | 25.43 | -21.69 | 96.39 | 0.3695 | 877.0 | 739.4 | |
| 0.00 | 2.20 | 0.00 | 1.18 | -12.08 | 25.12 | -22.00 | 106.26 | 0.3832 | 756.0 | 576.4 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -8.93 | 25.33 | -21.79 | 98.06 | 0.3720 | 735.0 | 590.2 | |
| 2.02 | -8.00 | 1.08 | -8.00 | -9.94 | 25.19 | -21.92 | 100.73 | 0.3759 | 1087.9 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -10.36 | 25.13 | -21.99 | 101.81 | 0.3779 | 636.0 | 488.8 | |
| 0.00 | 2.72 | 0.00 | 1.45 | -8.26 | 25.21 | -21.91 | 96.24 | 0.3731 | 784.0 | 612.7 | |
| 0.79 | -8.00 | 0.42 | -8.00 | -9.66 | 24.85 | -22.27 | 99.87 | 0.3808 | 767.3 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -8.31 | 24.88 | -22.24 | 96.31 | 0.3785 | 764.0 | 512.2 | |
| 0.00 | 2.02 | 0.00 | 1.08 | -9.86 | 24.71 | -22.41 | 100.36 | 0.3835 | 931.0 | 752.0 | |
| 0.00 | 1.05 | 0.00 | 0.56 | -8.45 | 24.61 | -22.51 | 96.64 | 0.3829 | 631.0 | 522.1 | |
| 0.00 | 3.25 | 0.00 | 1.76 | -10.27 | 23.68 | -23.44 | 101.06 | 0.4005 | 969.0 | 872.5 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -9.61 | 23.73 | -23.38 | 99.43 | 0.3984 | 743.0 | 581.2 | |
| 2.11 | 3.51 | 1.14 | 1.90 | -10.26 | 23.42 | -23.70 | 100.94 | 0.4046 | 1000.9 | 801.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -10.33 | 23.01 | -24.11 | 100.99 | 0.4111 | 998.0 | 849.7 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -11.26 | 22.90 | -24.22 | 103.18 | 0.4150 | 275.0 | 300.9 | |
| 1.49 | 37.85 | 0.81 | 20.63 | -10.75 | 22.91 | -24.21 | 101.96 | 0.4136 | 1100.6 | 550.6 | |
| 2.28 | -28.00 | 1.24 | -28.00 | -10.92 | 22.86 | -24.26 | 102.37 | 0.4147 | 1078.9 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.96 | -10.17 | 22.76 | -24.36 | 100.52 | 0.4147 | 819.0 | 733.8 | |
| 2.72 | -28.00 | 1.48 | -28.00 | -10.73 | 22.68 | -24.44 | 101.86 | 0.4172 | 964.0 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.63 | -13.22 | 22.33 | -24.79 | 107.51 | 0.4298 | 865.0 | 683.1 | |
| 0.00 | 2.28 | 0.00 | 1.24 | -10.34 | 22.58 | -24.54 | 100.88 | 0.4179 | 903.0 | 769.5 | |
| 2.90 | -28.00 | 1.58 | -28.00 | -10.80 | 22.20 | -24.92 | 101.86 | 0.4247 | 803.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.67 | -11.64 | 22.12 | -25.00 | 103.79 | 0.4280 | 635.0 | 457.4 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -10.26 | 22.21 | -24.90 | 100.59 | 0.4233 | 683.0 | 490.1 | |
| 0.53 | 4.13 | 0.29 | 2.26 | -10.99 | 21.81 | -25.31 | 102.18 | 0.4311 | 712.2 | 278.3 | |
| 0.00 | 1.49 | 0.00 | 0.82 | -10.00 | 21.77 | -25.35 | 99.86 | 0.4298 | 821.0 | 678.4 | |
| 0.00 | 4.74 | 0.00 | 2.60 | -9.73 | 21.79 | -25.33 | 99.24 | 0.4290 | 755.0 | 662.0 | |
| 0.00 | 3.16 | 0.00 | 1.76 | -14.49 | 20.98 | -26.14 | 109.59 | 0.4546 | 655.0 | 383.6 | |
| 28.01 | 87.02 | 15.43 | 48.12 | -10.64 | 21.27 | -25.85 | 101.19 | 0.4387 | 996.4 | 428.2 | |
| 0.00 | 1.23 | 0.00 | 0.68 | -12.60 | 20.69 | -26.43 | 105.36 | 0.4523 | 680.0 | 503.1 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -11.99 | 20.62 | -26.50 | 104.01 | 0.4517 | -951.0 | -822.8 | |
| 0.88 | 2.20 | 0.49 | 1.22 | -11.65 | 20.52 | -26.60 | 103.23 | 0.4523 | -902.4 | -628.2 | |
| 2.28 | -41.00 | 1.27 | -41.00 | -11.08 | 20.48 | -26.64 | 101.95 | 0.4517 | 966.1 | 999999 | |
| 0.53 | 1.76 | 0.29 | 0.98 | -11.61 | 20.29 | -26.83 | 103.06 | 0.4558 | 490.8 | 327.4 | |
| 2.99 | -41.00 | 1.66 | -41.00 | -10.80 | 20.27 | -26.85 | 101.27 | 0.4543 | 874.1 | 999999 | |
| 5.18 | -41.00 | 2.88 | -41.00 | -11.16 | 20.20 | -26.92 | 102.04 | 0.4561 | 761.2 | 999999 | |
| 0.97 | -41.00 | 0.54 | -41.00 | -10.78 | 19.96 | -27.16 | 101.16 | 0.4590 | 759.1 | 999999 | |
| 1.58 | 8.08 | 0.89 | 4.52 | -11.69 | 19.45 | -27.67 | 102.96 | 0.4685 | -858.8 | -444.0 | |
| 0.00 | 1.58 | 0.00 | 0.89 | -12.40 | 19.23 | -27.89 | 104.39 | 0.4736 | 785.0 | 496.7 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -10.78 | 19.34 | -27.78 | 100.99 | 0.4683 | 486.0 | 363.1 | |
| 2.02 | 5.80 | 1.14 | 3.26 | -12.09 | 18.92 | -28.20 | 103.62 | 0.4774 | -981.2 | -853.4 | |
| 0.00 | 0.44 | 0.00 | 0.25 | -10.93 | 18.73 | -28.38 | 101.16 | 0.4777 | 483.0 | 313.2 | |
| 2.81 | 4.65 | 1.59 | 2.63 | -12.00 | 18.41 | -28.71 | 103.28 | 0.4848 | -1015.8 | -772.6 | |
| 0.00 | 1.49 | 0.00 | 0.85 | -11.63 | 18.24 | -28.88 | 102.47 | 0.4865 | -923.0 | -719.2 | |
| 0.00 | 2.46 | 0.00 | 1.39 | -11.29 | 18.21 | -28.91 | 101.78 | 0.4863 | -852.0 | -645.5 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -12.46 | 18.03 | -29.08 | 104.11 | 0.4914 | 464.0 | 368.2 | |
| 0.00 | 0.79 | 0.00 | 0.45 | -8.92 | 18.27 | -28.85 | 96.88 | 0.4821 | 433.0 | 347.9 | |
| 0.00 | 5.71 | 0.00 | 3.25 | -12.69 | 17.79 | -29.33 | 104.49 | 0.4955 | -197.0 | -158.8 | |
| 0.00 | 1.49 | 0.00 | 0.84 | -9.51 | 18.08 | -29.04 | 98.08 | 0.4855 | -1012.0 | -843.6 | |
| 0.00 | 0.70 | 0.00 | 0.40 | -12.41 | 17.65 | -29.47 | 103.88 | 0.4969 | -575.0 | -548.6 | |
| 3.07 | 630.25 | 1.76 | 366.06 | -12.61 | 17.42 | -29.70 | 104.21 | 0.5008 | -1106.9 | -394.2 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -12.71 | 17.01 | -30.11 | 104.27 | 0.5070 | -890.0 | -716.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -13.19 | 16.91 | -30.21 | 105.18 | 0.5096 | 528.0 | 419.1 | |
| 1.41 | -63.00 | 0.81 | -63.00 | -12.04 | 16.99 | -30.13 | 102.96 | 0.5057 | -963.6 | 999999 | |
| 2.55 | -63.00 | 1.46 | -63.00 | -10.48 | 16.68 | -30.44 | 99.83 | 0.5076 | -1071.6 | 999999 | |
| 5.53 | -63.00 | 3.19 | -63.00 | -12.34 | 16.45 | -30.66 | 103.40 | 0.5142 | -1062.0 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.71 | -9.85 | 16.57 | -30.55 | 98.55 | 0.5084 | -791.0 | -627.5 | |
| 3.78 | -63.00 | 2.18 | -63.00 | -12.02 | 16.10 | -31.02 | 102.69 | 0.5187 | -974.1 | 999999 | |
| 39.34 | -63.00 | 22.75 | -63.00 | -11.32 | 16.05 | -31.07 | 101.34 | 0.5182 | -1311.1 | 999999 | |
| 0.61 | -63.00 | 0.36 | -63.00 | -10.33 | 16.06 | -31.06 | 99.42 | 0.5166 | -831.9 | 999999 | |
| 2.90 | -63.00 | 1.68 | -63.00 | -10.50 | 15.97 | -31.15 | 99.74 | 0.5182 | -837.5 | 999999 | |
| 1.32 | -63.00 | 0.77 | -63.00 | -12.03 | 15.71 | -31.41 | 102.61 | 0.5244 | -916.9 | 999999 | |
| 3.16 | -63.00 | 1.83 | -63.00 | -10.83 | 15.79 | -31.33 | 100.33 | 0.5212 | -961.8 | 999999 | |
| 2.20 | -63.00 | 1.28 | -63.00 | -11.48 | 15.63 | -31.48 | 101.55 | 0.5245 | -756.1 | 999999 | |
| 0.26 | -63.00 | 0.15 | -63.00 | -11.27 | 15.59 | -31.53 | 101.13 | 0.5248 | -719.3 | 999999 | |
| 7.38 | -63.00 | 4.30 | -63.00 | -11.86 | 15.41 | -31.71 | 102.22 | 0.5285 | -940.5 | 999999 | |
| 10.54 | -63.00 | 6.13 | -63.00 | -10.71 | 15.44 | -31.68 | 100.06 | 0.5261 | -797.7 | 999999 | |
| 25.20 | -63.00 | 14.72 | -63.00 | -12.30 | 15.24 | -31.88 | 103.01 | 0.5317 | -966.2 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.51 | -8.58 | 15.45 | -31.67 | 95.98 | 0.5240 | -609.0 | -489.5 | |
| 12.65 | -63.00 | 7.39 | -63.00 | -11.57 | 15.05 | -32.07 | 101.59 | 0.5331 | -803.4 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.69 | -14.17 | 12.06 | -35.06 | 105.53 | 0.5803 | -581.0 | -466.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
