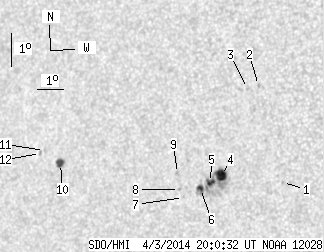

SDO HMI 2014-04-03 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 20.46 | 62.54 | 12.81 | 38.90 | -8.23 | 9.15 | -37.41 | 95.21 | 0.6056 | 465.8 | 387.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.58 | -8.73 | 12.50 | -34.07 | 96.14 | 0.5590 | 802.0 | 634.1 | |
| 0.00 | 1.32 | 0.00 | 0.79 | -5.78 | 11.88 | -34.69 | 90.89 | 0.5684 | 693.0 | 545.3 | |
| 0.00 | 1.23 | 0.00 | 0.74 | -5.84 | 11.47 | -35.10 | 91.04 | 0.5742 | 624.0 | 432.4 | |
| 9.57 | 47.07 | 5.86 | 28.95 | -8.38 | 10.27 | -36.30 | 95.45 | 0.5905 | 954.3 | 482.4 | |
| 3.95 | -4.00 | 2.43 | -4.00 | -8.56 | 9.83 | -36.73 | 95.75 | 0.5966 | 953.1 | 999999 | |
| 2.55 | -4.00 | 1.58 | -4.00 | -8.71 | 9.44 | -37.13 | 95.99 | 0.6022 | 748.7 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.33 | -8.94 | 8.76 | -37.81 | 96.35 | 0.6116 | 473.0 | 358.7 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -8.69 | 8.63 | -37.93 | 95.93 | 0.6132 | 553.0 | 485.5 | |
| 0.00 | 2.02 | 0.00 | 1.26 | -8.21 | 8.61 | -37.95 | 95.14 | 0.6134 | 630.0 | 509.9 | |
| 4.39 | 6.15 | 2.94 | 4.11 | -7.57 | 4.03 | -42.53 | 94.22 | 0.6743 | -805.3 | -621.2 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -7.13 | 3.43 | -43.14 | 93.60 | 0.6822 | -424.0 | -422.2 | |
| 0.00 | 1.58 | 0.00 | 1.07 | -7.21 | 3.25 | -43.32 | 93.72 | 0.6844 | -382.0 | -316.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
