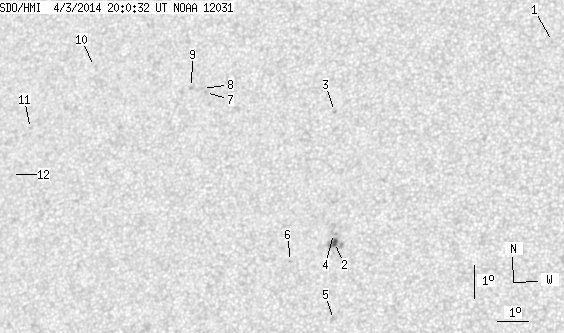

SDO HMI 2014-04-03 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.90 | 24.14 | 1.54 | 13.02 | 5.01 | 26.65 | -19.92 | 60.60 | 0.3919 | -18.1 | -290.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 20:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.42 | 9.68 | 34.83 | -11.74 | 36.12 | 0.3416 | 558.0 | 504.3 | |
| 2.90 | 9.22 | 1.54 | 4.89 | 3.70 | 28.19 | -18.38 | 61.65 | 0.3591 | -1121.5 | -784.8 | |
| 0.00 | 1.41 | 0.00 | 0.76 | 7.72 | 28.06 | -18.51 | 52.86 | 0.3963 | -793.0 | -588.8 | |
| 0.00 | 2.63 | 0.00 | 1.40 | 3.98 | 28.15 | -18.42 | 61.03 | 0.3618 | -784.0 | -712.0 | |
| 0.00 | 3.07 | 0.00 | 1.62 | 1.37 | 28.19 | -18.38 | 67.67 | 0.3423 | -753.0 | -583.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 3.18 | 26.80 | -19.77 | 64.67 | 0.3752 | -787.0 | -619.9 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 8.48 | 23.84 | -22.73 | 56.98 | 0.4576 | 827.0 | 565.1 | |
| 0.00 | 0.61 | 0.00 | 0.34 | 8.61 | 23.73 | -22.83 | 56.87 | 0.4601 | 650.0 | 576.3 | |
| 0.00 | 1.76 | 0.00 | 0.98 | 8.66 | 23.37 | -23.20 | 57.20 | 0.4652 | 729.0 | 604.3 | |
| 0.00 | 0.61 | 0.00 | 0.35 | 9.48 | 20.06 | -26.51 | 59.23 | 0.5144 | 672.0 | 588.9 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 7.67 | 18.01 | -28.56 | 64.14 | 0.5286 | 527.0 | 431.6 | |
| 0.00 | 0.61 | 0.00 | 0.36 | 6.28 | 17.45 | -29.12 | 66.97 | 0.5277 | 654.0 | 525.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
