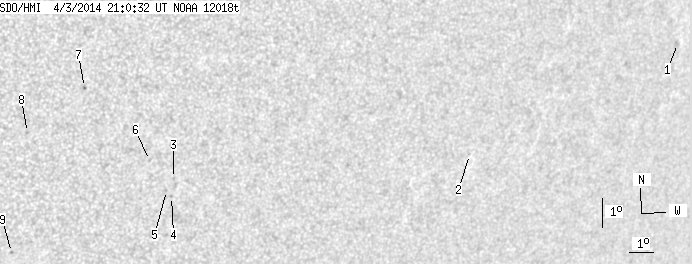

SDO HMI 2014-04-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.50 | 0.00 | 6.17 | -27.20 | 80.91 | 34.89 | 232.11 | 0.6361 | -383.6 | -246.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 21:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.02 | 0.00 | 1.60 | -23.19 | 96.56 | 50.55 | 245.32 | 0.7834 | 237.0 | 228.7 | |
| 0.00 | 0.53 | 0.00 | 0.37 | -27.38 | 88.57 | 42.56 | 237.40 | 0.7152 | 598.0 | 493.2 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -28.90 | 76.59 | 30.58 | 228.34 | 0.5984 | -636.0 | -481.1 | |
| 0.00 | 1.05 | 0.00 | 0.65 | -29.49 | 76.70 | 30.69 | 227.60 | 0.6039 | -543.0 | -433.8 | |
| 0.00 | 0.97 | 0.00 | 0.60 | -29.31 | 76.44 | 30.43 | 227.65 | 0.5998 | -520.0 | -328.1 | |
| 0.00 | 0.97 | 0.00 | 0.59 | -28.37 | 75.48 | 29.46 | 228.21 | 0.5827 | -603.0 | -487.9 | |
| 0.00 | 1.14 | 0.00 | 0.67 | -26.16 | 72.39 | 26.38 | 228.84 | 0.5317 | -650.0 | -589.7 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -27.69 | 70.63 | 24.62 | 224.76 | 0.5260 | -662.0 | -542.3 | |
| 0.00 | 0.88 | 0.00 | 0.53 | -31.61 | 71.06 | 25.04 | 219.66 | 0.5670 | -673.0 | -602.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
