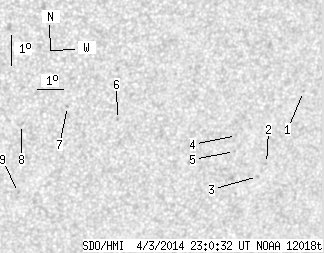

SDO HMI 2014-04-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.35 | 0.00 | 5.00 | -28.31 | 72.25 | 27.34 | 226.10 | 0.5607 | -645.2 | -529.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.79 | 0.00 | 0.49 | -26.50 | 77.38 | 32.47 | 233.22 | 0.6022 | -517.0 | -421.0 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -28.88 | 76.68 | 31.77 | 229.28 | 0.6106 | -484.0 | -398.8 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -29.31 | 76.47 | 31.56 | 228.50 | 0.6116 | -653.0 | -482.5 | |
| 0.00 | 0.53 | 0.00 | 0.32 | -28.04 | 75.21 | 30.31 | 229.37 | 0.5891 | -777.0 | -683.7 | |
| 0.00 | 0.79 | 0.00 | 0.49 | -28.56 | 75.30 | 30.39 | 228.68 | 0.5938 | -666.0 | -585.3 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -27.75 | 70.55 | 25.65 | 225.71 | 0.5372 | -752.0 | -639.5 | |
| 0.00 | 0.97 | 0.00 | 0.56 | -27.41 | 68.61 | 23.70 | 224.21 | 0.5138 | -688.0 | -535.6 | |
| 0.00 | 1.67 | 0.00 | 0.96 | -28.05 | 67.06 | 22.15 | 221.49 | 0.5043 | -563.0 | -510.2 | |
| 0.00 | 0.79 | 0.00 | 0.46 | -30.26 | 67.45 | 22.55 | 218.81 | 0.5306 | -707.0 | -596.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
