SDO HMI 2014-04-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.68 | 193.46 | 34.29 | 138.46 | 10.71 | 1.92 | -42.99 | 68.38 | 0.7220 | -221.2 | -113.0 | |
|
previous
or next observation for the same group /

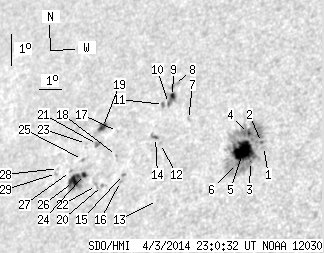

back to the solar disc SDO HMI 2014-04-03 23:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.20 | 0.00 | 1.50 | 10.57 | 4.76 | -40.15 | 67.22 | 0.6897 | -604.0 | -520.0 | |
| 0.44 | 123.96 | 0.30 | 85.61 | 10.71 | 4.66 | -40.25 | 67.10 | 0.6915 | -864.0 | -311.1 | |
| 0.35 | -2.00 | 0.24 | -2.00 | 10.14 | 4.31 | -40.60 | 68.04 | 0.6931 | -876.5 | 999999 | |
| 1.67 | -2.00 | 1.15 | -2.00 | 11.03 | 4.08 | -40.82 | 66.96 | 0.6996 | -545.7 | 999999 | |
| 27.23 | -2.00 | 18.80 | -2.00 | 10.51 | 3.97 | -40.94 | 67.72 | 0.6986 | -926.1 | 999999 | |
| 0.53 | -2.00 | 0.36 | -2.00 | 10.12 | 3.79 | -41.12 | 68.33 | 0.6990 | -530.7 | 999999 | |
| 0.00 | 1.76 | 0.00 | 1.27 | 11.67 | 1.48 | -43.42 | 67.39 | 0.7315 | -632.0 | -481.1 | |
| 0.00 | 3.69 | 0.00 | 2.73 | 12.84 | 0.64 | -44.27 | 66.30 | 0.7455 | 578.0 | 462.7 | |
| 2.37 | 9.75 | 1.75 | 7.20 | 12.46 | 0.64 | -44.27 | 66.78 | 0.7440 | 722.0 | 205.8 | |
| 0.61 | -9.00 | 0.45 | -9.00 | 12.25 | 0.51 | -44.40 | 67.10 | 0.7445 | -391.9 | 999999 | |
| 0.61 | 2.02 | 0.46 | 1.50 | 12.24 | 0.30 | -44.61 | 67.22 | 0.7467 | -468.6 | -334.8 | |
| 0.00 | 1.41 | 0.00 | 1.03 | 11.01 | 0.42 | -44.49 | 68.73 | 0.7405 | -522.0 | -362.6 | |
| 0.00 | 0.70 | 0.00 | 0.51 | 9.22 | 0.60 | -44.31 | 70.96 | 0.7317 | 592.0 | 536.9 | |
| 1.05 | 3.78 | 0.78 | 2.79 | 11.22 | 0.16 | -44.75 | 68.57 | 0.7441 | -678.0 | -441.0 | |
| 0.00 | 1.41 | 0.00 | 1.05 | 10.16 | 358.97 | -45.94 | 70.42 | 0.7531 | 798.0 | 688.2 | |
| 0.00 | 0.97 | 0.00 | 0.72 | 9.95 | 358.88 | -46.03 | 70.72 | 0.7533 | 661.0 | 457.9 | |
| 0.00 | 0.70 | 0.00 | 0.54 | 11.55 | 358.43 | -46.48 | 68.90 | 0.7638 | 442.0 | 376.2 | |
| 0.00 | 1.05 | 0.00 | 0.80 | 10.79 | 358.54 | -46.37 | 69.80 | 0.7599 | -404.0 | -337.0 | |
| 3.95 | 6.24 | 3.07 | 4.84 | 11.73 | 357.71 | -47.20 | 68.96 | 0.7720 | 584.1 | 259.2 | |
| 0.00 | 1.32 | 0.00 | 1.00 | 9.89 | 358.09 | -46.82 | 71.10 | 0.7616 | 642.0 | 545.3 | |
| 0.70 | 3.25 | 0.54 | 2.52 | 11.21 | 357.60 | -47.31 | 69.65 | 0.7713 | -588.5 | -499.8 | |
| 0.00 | 2.72 | 0.00 | 2.09 | 9.92 | 357.82 | -47.09 | 71.18 | 0.7646 | 588.0 | 502.9 | |
| 0.00 | 0.61 | 0.00 | 0.48 | 11.29 | 357.08 | -47.83 | 69.76 | 0.7769 | -308.0 | -249.1 | |
| 2.20 | 20.91 | 1.71 | 16.32 | 10.31 | 357.20 | -47.71 | 70.93 | 0.7724 | 753.7 | 583.4 | |
| 0.00 | 1.32 | 0.00 | 1.03 | 10.79 | 357.01 | -47.90 | 70.40 | 0.7760 | -271.0 | -178.9 | |
| 5.97 | -24.00 | 4.68 | -24.00 | 10.13 | 356.73 | -48.18 | 71.32 | 0.7767 | 754.4 | 999999 | |
| 0.00 | 1.32 | 0.00 | 1.04 | 10.46 | 356.52 | -48.39 | 70.99 | 0.7799 | 537.0 | 508.1 | |
| 0.00 | 0.88 | 0.00 | 0.70 | 10.61 | 355.94 | -48.97 | 71.03 | 0.7863 | 390.0 | 401.5 | |
| 0.00 | 1.49 | 0.00 | 1.19 | 10.46 | 355.87 | -49.03 | 71.24 | 0.7865 | 477.0 | 376.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
