SDO HMI 2014-04-04 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 61.36 | 250.37 | 42.67 | 173.10 | 10.70 | 1.29 | -40.87 | 67.36 | 0.6979 | -148.4 | -87.2 | |
|
previous
or next observation for the same group /

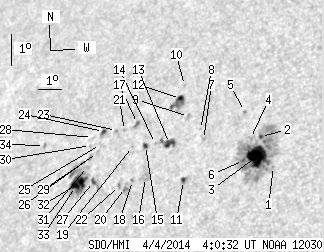

back to the solar disc SDO HMI 2014-04-04 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.63 | 10.12 | 4.77 | -37.39 | 66.37 | 0.6548 | -854.0 | -725.6 | |
| 1.23 | 127.30 | 0.82 | 84.23 | 11.10 | 4.12 | -38.04 | 65.37 | 0.6675 | -638.9 | -345.3 | |
| 27.43 | -2.00 | 18.14 | -2.00 | 10.48 | 4.06 | -38.10 | 66.27 | 0.6651 | -979.1 | 999999 | |
| 0.00 | 2.37 | 0.00 | 1.58 | 11.07 | 3.74 | -38.42 | 65.64 | 0.6718 | -398.0 | -190.2 | |
| 0.00 | 1.23 | 0.00 | 0.83 | 11.94 | 3.36 | -38.80 | 64.66 | 0.6806 | 639.0 | 578.3 | |
| 1.05 | -2.00 | 0.70 | -2.00 | 10.39 | 3.57 | -38.59 | 66.67 | 0.6705 | -287.4 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.09 | 11.17 | 1.86 | -40.30 | 66.51 | 0.6942 | -707.0 | -504.7 | |
| 0.00 | 0.79 | 0.00 | 0.55 | 11.50 | 1.68 | -40.48 | 66.17 | 0.6977 | -470.0 | -505.7 | |
| 0.00 | 3.16 | 0.00 | 2.21 | 11.95 | 1.11 | -41.05 | 65.87 | 0.7063 | -607.0 | -494.7 | |
| 0.00 | 0.97 | 0.00 | 0.68 | 12.96 | 0.75 | -41.40 | 64.74 | 0.7150 | 555.0 | 432.9 | |
| 1.49 | 3.16 | 1.03 | 2.18 | 9.94 | 1.25 | -40.91 | 68.49 | 0.6957 | -667.9 | -450.2 | |
| 2.64 | 14.15 | 1.86 | 9.98 | 12.55 | 0.67 | -41.49 | 65.31 | 0.7140 | 886.2 | 202.9 | |
| 5.27 | 10.73 | 3.70 | 7.53 | 11.15 | 0.48 | -41.68 | 67.24 | 0.7098 | -644.1 | -288.7 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 11.20 | 359.89 | -42.27 | 67.47 | 0.7166 | -360.0 | -319.1 | |
| 1.67 | 2.90 | 1.19 | 2.07 | 11.17 | 359.48 | -42.68 | 67.71 | 0.7211 | -488.2 | -251.4 | |
| 0.00 | 7.91 | 0.00 | 5.59 | 10.16 | 359.66 | -42.50 | 68.95 | 0.7149 | 337.0 | 321.6 | |
| 0.79 | 2.90 | 0.57 | 2.09 | 11.90 | 359.01 | -43.15 | 66.99 | 0.7294 | 792.9 | 664.3 | |
| 0.00 | 1.14 | 0.00 | 0.81 | 10.10 | 359.12 | -43.03 | 69.27 | 0.7207 | 764.0 | 725.6 | |
| 0.00 | 1.14 | 0.00 | 0.82 | 11.18 | 358.93 | -43.22 | 67.95 | 0.7272 | 169.0 | 146.1 | |
| 0.00 | 4.04 | 0.00 | 2.89 | 9.91 | 358.86 | -43.30 | 69.64 | 0.7229 | 763.0 | 609.9 | |
| 0.00 | 1.14 | 0.00 | 0.83 | 11.72 | 358.49 | -43.67 | 67.46 | 0.7343 | 647.0 | 606.6 | |
| 0.00 | 1.85 | 0.00 | 1.33 | 9.99 | 358.60 | -43.56 | 69.65 | 0.7262 | 388.0 | 482.1 | |
| 0.00 | 1.58 | 0.00 | 1.16 | 11.75 | 358.15 | -44.01 | 67.59 | 0.7382 | 705.0 | 613.1 | |
| 1.23 | 4.31 | 0.91 | 3.18 | 11.76 | 357.59 | -44.57 | 67.82 | 0.7443 | 611.1 | 314.7 | |
| 0.00 | 1.41 | 0.00 | 1.04 | 11.36 | 357.54 | -44.62 | 68.36 | 0.7432 | -497.0 | -385.9 | |
| 0.00 | 1.67 | 0.00 | 1.23 | 11.11 | 357.46 | -44.70 | 68.70 | 0.7431 | -317.0 | -308.4 | |
| 1.32 | 5.19 | 0.97 | 3.80 | 10.21 | 357.45 | -44.71 | 69.86 | 0.7397 | 730.1 | 572.1 | |
| 0.00 | 0.62 | 0.00 | 0.46 | 11.61 | 357.14 | -45.02 | 68.21 | 0.7485 | -524.0 | -405.7 | |
| 0.00 | 1.67 | 0.00 | 1.24 | 10.98 | 357.18 | -44.98 | 68.99 | 0.7456 | -339.0 | -235.9 | |
| 0.00 | 0.97 | 0.00 | 0.72 | 11.36 | 357.10 | -45.06 | 68.54 | 0.7479 | -403.0 | -377.1 | |
| 0.00 | 1.76 | 0.00 | 1.30 | 10.70 | 357.10 | -45.06 | 69.38 | 0.7454 | 279.0 | 201.4 | |
| 9.06 | 39.39 | 6.71 | 29.27 | 10.25 | 356.92 | -45.23 | 70.03 | 0.7457 | 834.5 | 330.4 | |
| 8.18 | -32.00 | 6.07 | -32.00 | 10.12 | 356.69 | -45.47 | 70.30 | 0.7477 | 719.8 | 999999 | |
| 0.00 | 1.58 | 0.00 | 1.22 | 11.53 | 355.03 | -47.13 | 69.20 | 0.7705 | -562.0 | -372.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
