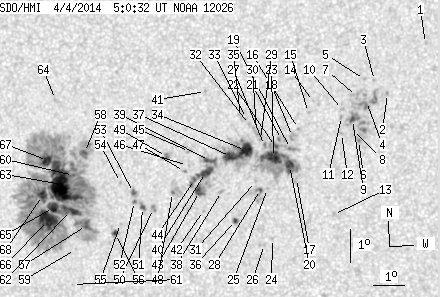

SDO HMI 2014-04-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 209.44 | 987.61 | 113.65 | 535.63 | -11.29 | 18.09 | -23.52 | 103.67 | 0.4038 | -186.2 | -113.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 05:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.72 | -7.50 | 27.86 | -13.75 | 95.53 | 0.2378 | 906.0 | 651.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -8.97 | 26.62 | -14.99 | 100.85 | 0.2613 | 978.0 | 812.3 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -8.56 | 26.23 | -15.38 | 99.13 | 0.2669 | 721.0 | 624.0 | |
| 0.00 | 20.84 | 0.00 | 10.73 | -9.19 | 25.95 | -15.66 | 101.27 | 0.2730 | 511.0 | 904.0 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -8.53 | 25.91 | -15.70 | 98.84 | 0.2720 | 855.0 | 694.1 | |
| 0.00 | 1.41 | 0.00 | 0.73 | -10.35 | 25.64 | -15.97 | 105.20 | 0.2818 | 973.0 | 838.0 | |
| 0.00 | 5.36 | 0.00 | 2.76 | -9.03 | 25.64 | -15.97 | 100.53 | 0.2776 | 863.0 | 718.8 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.01 | 25.50 | -16.11 | 103.93 | 0.2829 | 700.0 | 574.1 | |
| 2.11 | 22.07 | 1.09 | 11.38 | -9.71 | 25.48 | -16.13 | 102.86 | 0.2822 | 1114.3 | 916.5 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -9.40 | 25.18 | -16.43 | 101.60 | 0.2862 | 750.0 | 624.6 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.61 | 25.14 | -16.47 | 102.30 | 0.2875 | 831.0 | 647.5 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -10.12 | 25.11 | -16.50 | 104.03 | 0.2895 | 798.0 | 593.7 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -12.55 | 24.70 | -16.91 | 111.57 | 0.3066 | 780.0 | 590.4 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -9.13 | 24.27 | -17.34 | 100.23 | 0.3003 | 665.0 | 514.1 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.46 | 24.10 | -17.52 | 101.21 | 0.3040 | 900.0 | 597.0 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.93 | 23.75 | -17.86 | 102.54 | 0.3109 | 843.0 | 752.8 | |
| 0.00 | 3.08 | 0.00 | 1.61 | -11.43 | 23.59 | -18.02 | 107.12 | 0.3187 | 727.0 | 518.6 | |
| 0.00 | 3.96 | 0.00 | 2.06 | -10.16 | 23.54 | -18.07 | 103.16 | 0.3149 | 891.0 | 924.6 | |
| 0.00 | 7.91 | 0.00 | 4.13 | -10.52 | 23.46 | -18.15 | 104.23 | 0.3174 | 1067.0 | 754.3 | |
| 7.47 | 211.46 | 3.91 | 111.45 | -11.03 | 23.39 | -18.22 | 105.76 | 0.3202 | 1140.7 | 343.9 | |
| 0.00 | 3.60 | 0.00 | 1.88 | -10.24 | 23.19 | -18.42 | 103.20 | 0.3209 | 343.0 | 774.4 | |
| 1.14 | -20.00 | 0.60 | -20.00 | -10.44 | 22.98 | -18.63 | 103.71 | 0.3248 | 1069.0 | 999999 | |
| 17.94 | -20.00 | 9.40 | -20.00 | -10.77 | 22.89 | -18.72 | 104.65 | 0.3273 | 1078.1 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -13.20 | 22.68 | -18.93 | 111.56 | 0.3411 | 697.0 | 379.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.69 | 22.64 | -18.97 | 107.21 | 0.3348 | 877.0 | 586.0 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -13.38 | 22.41 | -19.20 | 111.79 | 0.3461 | 834.0 | 626.8 | |
| 0.00 | 2.81 | 0.00 | 1.48 | -10.40 | 22.63 | -18.98 | 103.38 | 0.3303 | 833.0 | 575.2 | |
| 0.97 | 9.23 | 0.51 | 4.86 | -11.71 | 22.41 | -19.20 | 107.11 | 0.3384 | 876.9 | 93.5 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -10.21 | 22.51 | -19.10 | 102.76 | 0.3316 | 964.0 | 659.2 | |
| 0.00 | 4.31 | 0.00 | 2.26 | -9.97 | 22.40 | -19.21 | 101.98 | 0.3328 | 676.0 | 791.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -11.47 | 22.26 | -19.35 | 106.30 | 0.3397 | 779.0 | 552.7 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -9.75 | 22.19 | -19.43 | 101.23 | 0.3356 | 816.0 | 648.4 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -9.57 | 22.10 | -19.51 | 100.65 | 0.3366 | 663.0 | 517.4 | |
| 15.56 | -20.00 | 8.20 | -20.00 | -10.52 | 22.01 | -19.60 | 103.42 | 0.3406 | 1146.4 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.30 | -9.50 | 21.91 | -19.70 | 100.38 | 0.3395 | 688.0 | 586.2 | |
| 1.67 | 2.55 | 0.89 | 1.35 | -12.62 | 21.52 | -20.09 | 108.99 | 0.3560 | -971.4 | -767.8 | |
| 9.06 | -20.00 | 4.78 | -20.00 | -10.69 | 21.51 | -20.10 | 103.62 | 0.3490 | 941.5 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -11.73 | 21.14 | -20.47 | 106.30 | 0.3584 | -189.0 | -164.3 | |
| 3.69 | -20.00 | 1.96 | -20.00 | -10.78 | 20.82 | -20.79 | 103.53 | 0.3603 | 976.1 | 999999 | |
| 8.70 | -20.00 | 4.63 | -20.00 | -11.13 | 20.66 | -20.95 | 104.42 | 0.3638 | 873.0 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -8.70 | 20.83 | -20.79 | 97.76 | 0.3556 | 663.0 | 595.9 | |
| 0.00 | 1.06 | 0.00 | 0.56 | -12.27 | 20.50 | -21.11 | 107.37 | 0.3703 | -921.0 | -771.7 | |
| 5.01 | -20.00 | 2.67 | -20.00 | -11.70 | 20.42 | -21.19 | 105.79 | 0.3695 | -1059.1 | 999999 | |
| 1.14 | -20.00 | 0.61 | -20.00 | -11.33 | 20.28 | -21.33 | 104.74 | 0.3704 | 675.1 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.31 | -10.48 | 20.18 | -21.43 | 102.43 | 0.3694 | 651.0 | 552.6 | |
| 0.00 | 0.44 | 0.00 | 0.23 | -10.90 | 20.09 | -21.52 | 103.50 | 0.3721 | 503.0 | 550.6 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -11.08 | 19.97 | -21.64 | 103.92 | 0.3744 | 769.0 | 575.6 | |
| 0.35 | 8.09 | 0.19 | 4.33 | -11.69 | 19.53 | -22.08 | 105.29 | 0.3833 | -726.0 | -230.8 | |
| 0.00 | 4.75 | 0.00 | 2.54 | -10.60 | 19.42 | -22.19 | 102.42 | 0.3818 | 775.0 | 617.5 | |
| 0.00 | 3.17 | 0.00 | 1.71 | -12.15 | 18.86 | -22.75 | 106.08 | 0.3952 | -1026.0 | -841.2 | |
| 1.41 | 4.22 | 0.76 | 2.28 | -12.10 | 18.50 | -23.12 | 105.78 | 0.4006 | -1091.9 | -847.2 | |
| 0.62 | 1.49 | 0.33 | 0.81 | -11.91 | 18.25 | -23.36 | 105.19 | 0.4038 | -1141.3 | -992.6 | |
| 1.41 | 4.57 | 0.76 | 2.47 | -11.64 | 18.24 | -23.37 | 104.52 | 0.4031 | -1001.9 | -596.9 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -11.32 | 17.83 | -23.78 | 103.56 | 0.4084 | -896.0 | -740.4 | |
| 0.00 | 1.06 | 0.00 | 0.57 | -12.55 | 17.72 | -23.90 | 106.46 | 0.4140 | -757.0 | -639.2 | |
| 1.76 | 3.17 | 0.96 | 1.72 | -12.84 | 17.52 | -24.09 | 107.05 | 0.4181 | -955.8 | -636.8 | |
| 4.57 | 619.70 | 2.51 | 342.11 | -12.56 | 16.57 | -25.04 | 105.92 | 0.4315 | -1068.4 | -404.0 | |
| 2.20 | -57.00 | 1.20 | -57.00 | -10.36 | 16.71 | -24.90 | 100.89 | 0.4236 | -1118.4 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | -13.26 | 16.11 | -25.50 | 107.29 | 0.4407 | -698.0 | -437.5 | |
| 0.79 | -57.00 | 0.43 | -57.00 | -11.03 | 16.28 | -25.33 | 102.32 | 0.4317 | -1071.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.54 | -14.31 | 15.89 | -25.73 | 109.48 | 0.4480 | 736.0 | 481.4 | |
| 10.64 | -57.00 | 5.85 | -57.00 | -12.08 | 16.07 | -25.54 | 104.62 | 0.4375 | -1025.4 | 999999 | |
| 58.56 | -57.00 | 32.25 | -57.00 | -11.28 | 15.85 | -25.76 | 102.74 | 0.4389 | -1246.1 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.77 | -8.72 | 15.87 | -25.75 | 96.89 | 0.4343 | -583.0 | -453.2 | |
| 8.62 | -57.00 | 4.76 | -57.00 | -11.96 | 15.50 | -26.11 | 104.14 | 0.4458 | -1045.5 | 999999 | |
| 28.49 | -57.00 | 15.79 | -57.00 | -12.34 | 15.26 | -26.35 | 104.88 | 0.4506 | -964.0 | 999999 | |
| 7.56 | -57.00 | 4.18 | -57.00 | -10.54 | 15.44 | -26.17 | 100.94 | 0.4435 | -962.8 | 999999 | |
| 8.00 | -57.00 | 4.43 | -57.00 | -11.58 | 15.17 | -26.44 | 103.18 | 0.4499 | -928.7 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
