SDO HMI 2014-04-04 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 68.67 | 396.32 | 40.11 | 231.78 | 12.30 | 13.79 | -26.18 | 54.37 | 0.5327 | -835.8 | -357.2 | |
|
previous
or next observation for the same group /

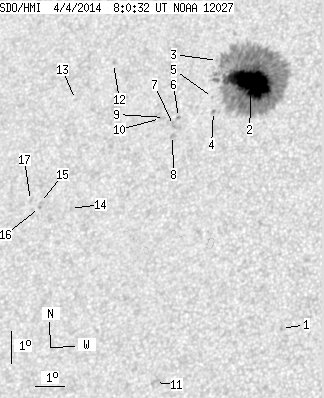

back to the solar disc SDO HMI 2014-04-04 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.97 | 0.00 | 0.54 | 4.77 | 15.53 | -24.44 | 66.05 | 0.4531 | 772.0 | 603.5 | |
| 68.67 | 373.45 | 40.11 | 218.23 | 12.48 | 13.97 | -26.00 | 53.91 | 0.5317 | -1337.7 | -413.9 | |
| 0.00 | 1.41 | 0.00 | 0.83 | 13.25 | 12.71 | -27.26 | 54.03 | 0.5530 | -181.0 | -201.6 | |
| 0.00 | 1.67 | 0.00 | 0.98 | 11.63 | 12.76 | -27.21 | 56.47 | 0.5395 | -542.0 | -376.4 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 12.08 | 12.67 | -27.30 | 55.85 | 0.5440 | -347.0 | -285.7 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 11.51 | 11.56 | -28.41 | 57.79 | 0.5532 | -372.0 | -212.9 | |
| 0.00 | 2.37 | 0.00 | 1.41 | 11.27 | 11.41 | -28.56 | 58.30 | 0.5532 | 608.0 | 489.7 | |
| 0.00 | 2.81 | 0.00 | 1.67 | 10.95 | 11.41 | -28.56 | 58.80 | 0.5509 | 846.0 | 584.8 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 11.54 | 11.06 | -28.90 | 58.19 | 0.5595 | 739.0 | 635.2 | |
| 0.00 | 1.06 | 0.00 | 0.63 | 11.51 | 10.93 | -29.04 | 58.35 | 0.5610 | 877.0 | 785.7 | |
| 0.00 | 4.40 | 0.00 | 2.52 | 3.34 | 11.34 | -28.63 | 72.05 | 0.5049 | 668.0 | 659.9 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 13.36 | 9.02 | -30.95 | 57.23 | 0.5973 | 642.0 | 454.3 | |
| 0.00 | 0.88 | 0.00 | 0.55 | 12.30 | 7.80 | -32.17 | 59.76 | 0.6044 | 551.0 | 447.8 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 8.88 | 8.02 | -31.95 | 64.79 | 0.5802 | 555.0 | 394.7 | |
| 0.00 | 0.70 | 0.00 | 0.43 | 9.13 | 6.91 | -33.06 | 65.16 | 0.5958 | 636.0 | 554.9 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 8.98 | 6.89 | -33.08 | 65.41 | 0.5952 | 708.0 | 620.6 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 9.22 | 6.53 | -33.44 | 65.28 | 0.6010 | 600.0 | 463.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
