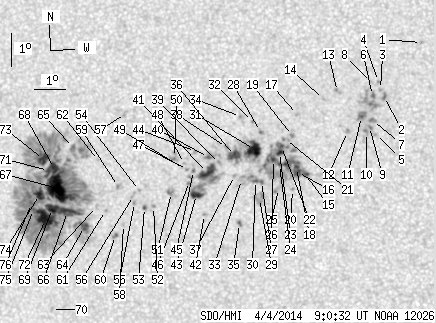

SDO HMI 2014-04-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 182.35 | 959.72 | 97.68 | 512.68 | -11.34 | 18.06 | -21.36 | 104.92 | 0.3705 | -238.7 | -123.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.67 | -7.43 | 27.63 | -11.79 | 95.97 | 0.2046 | 957.0 | 722.0 | |
| 0.44 | 2.81 | 0.22 | 1.43 | -9.03 | 26.43 | -12.99 | 102.55 | 0.2285 | 1137.6 | 948.2 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -8.81 | 26.32 | -13.11 | 101.54 | 0.2298 | 950.0 | 764.7 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -8.57 | 26.26 | -13.16 | 100.46 | 0.2300 | 892.0 | 664.3 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -10.16 | 26.10 | -13.32 | 106.99 | 0.2382 | 890.0 | 706.9 | |
| 0.53 | 19.70 | 0.27 | 10.04 | -8.99 | 26.06 | -13.36 | 102.09 | 0.2345 | 1162.7 | 878.4 | |
| 0.00 | 3.25 | 0.00 | 1.66 | -9.74 | 26.03 | -13.39 | 105.19 | 0.2376 | 993.0 | 919.1 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -8.59 | 26.04 | -13.38 | 100.42 | 0.2337 | 712.0 | 654.6 | |
| 0.00 | 2.55 | 0.00 | 1.30 | -9.91 | 25.93 | -13.49 | 105.81 | 0.2400 | 1262.0 | 960.3 | |
| 0.00 | 2.46 | 0.00 | 1.26 | -10.09 | 25.83 | -13.60 | 106.43 | 0.2424 | 940.0 | 861.6 | |
| 0.79 | 7.91 | 0.40 | 4.04 | -9.61 | 25.69 | -13.73 | 104.35 | 0.2427 | 1213.6 | 978.2 | |
| 0.00 | 2.20 | 0.00 | 1.12 | -10.04 | 25.23 | -14.19 | 105.67 | 0.2518 | 845.0 | 760.4 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -8.84 | 24.97 | -14.45 | 100.74 | 0.2521 | 904.0 | 749.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -9.06 | 24.52 | -14.90 | 101.35 | 0.2602 | 911.0 | 730.6 | |
| 1.85 | 155.99 | 0.95 | 80.86 | -11.30 | 23.84 | -15.58 | 108.90 | 0.2797 | -127.8 | 565.6 | |
| 4.48 | -15.00 | 2.32 | -15.00 | -11.23 | 23.59 | -15.83 | 108.42 | 0.2833 | 997.5 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.00 | -9.49 | 23.68 | -15.74 | 102.39 | 0.2752 | 742.0 | 542.0 | |
| 1.85 | -15.00 | 0.95 | -15.00 | -11.08 | 23.57 | -15.85 | 107.88 | 0.2830 | 1251.7 | 999999 | |
| 0.00 | 2.20 | 0.00 | 1.13 | -10.11 | 23.49 | -15.93 | 104.48 | 0.2803 | 1166.0 | 967.5 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -11.74 | 23.40 | -16.02 | 109.94 | 0.2887 | 861.0 | 672.5 | |
| 0.00 | 2.73 | 0.00 | 1.41 | -10.23 | 23.27 | -16.16 | 104.70 | 0.2844 | 850.0 | 877.3 | |
| 1.41 | -15.00 | 0.73 | -15.00 | -10.43 | 23.13 | -16.30 | 105.31 | 0.2874 | 1146.9 | 999999 | |
| 2.90 | -15.00 | 1.50 | -15.00 | -10.61 | 23.05 | -16.37 | 105.85 | 0.2892 | 1250.8 | 999999 | |
| 0.79 | -15.00 | 0.41 | -15.00 | -10.97 | 23.03 | -16.39 | 107.05 | 0.2910 | 1024.3 | 999999 | |
| 0.00 | 4.48 | 0.00 | 2.32 | -11.69 | 22.96 | -16.46 | 109.36 | 0.2955 | -158.0 | -185.0 | |
| 2.11 | -15.00 | 1.09 | -15.00 | -10.82 | 22.85 | -16.57 | 106.38 | 0.2933 | 1086.2 | 999999 | |
| 0.62 | 10.46 | 0.32 | 5.44 | -11.46 | 22.43 | -16.99 | 108.14 | 0.3028 | 990.4 | 617.9 | |
| 0.00 | 1.58 | 0.00 | 0.82 | -9.96 | 22.49 | -16.94 | 103.27 | 0.2961 | 964.0 | 910.6 | |
| 0.00 | 10.11 | 0.00 | 5.26 | -11.97 | 22.33 | -17.09 | 109.66 | 0.3067 | 410.0 | 303.5 | |
| 0.88 | -27.00 | 0.46 | -27.00 | -11.43 | 22.24 | -17.18 | 107.86 | 0.3056 | 870.2 | 999999 | |
| 13.01 | -15.00 | 6.76 | -15.00 | -10.49 | 22.26 | -17.16 | 104.88 | 0.3015 | 1173.3 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.65 | 22.25 | -17.17 | 102.10 | 0.2991 | 815.0 | 622.2 | |
| 0.00 | 4.40 | 0.00 | 2.29 | -11.38 | 21.79 | -17.63 | 107.35 | 0.3124 | 34.0 | -12.1 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -9.49 | 21.87 | -17.55 | 101.37 | 0.3047 | 793.0 | 714.7 | |
| 0.79 | 2.02 | 0.41 | 1.06 | -12.70 | 21.64 | -17.79 | 111.23 | 0.3211 | -1113.7 | -942.3 | |
| 7.65 | -15.00 | 3.99 | -15.00 | -10.65 | 21.61 | -17.81 | 104.94 | 0.3125 | 961.1 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -11.25 | 21.58 | -17.85 | 106.79 | 0.3153 | -810.0 | -567.8 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -10.40 | 21.37 | -18.05 | 104.01 | 0.3155 | 754.0 | 635.3 | |
| 0.00 | 2.20 | 0.00 | 1.15 | -10.88 | 21.12 | -18.30 | 105.30 | 0.3212 | 931.0 | 779.4 | |
| 0.79 | 8.00 | 0.41 | 4.19 | -10.68 | 20.78 | -18.65 | 104.50 | 0.3259 | 877.3 | 680.7 | |
| 11.34 | 49.42 | 5.95 | 25.92 | -11.13 | 20.71 | -18.71 | 105.81 | 0.3285 | 709.2 | -270.3 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -12.39 | 20.53 | -18.90 | 109.35 | 0.3367 | -955.0 | -808.0 | |
| 5.63 | -41.00 | 2.96 | -41.00 | -11.78 | 20.31 | -19.11 | 107.43 | 0.3374 | -1109.7 | 999999 | |
| 0.00 | 2.02 | 0.00 | 1.06 | -10.49 | 20.37 | -19.05 | 103.67 | 0.3318 | 817.0 | 610.0 | |
| 0.00 | 1.76 | 0.00 | 0.92 | -11.06 | 20.27 | -19.15 | 105.29 | 0.3353 | 777.0 | 654.0 | |
| 0.00 | 4.22 | 0.00 | 2.22 | -11.38 | 20.11 | -19.31 | 106.14 | 0.3389 | 315.0 | 115.3 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -11.02 | 20.08 | -19.35 | 105.06 | 0.3382 | 590.0 | 532.7 | |
| 0.00 | 0.88 | 0.00 | 0.46 | -10.84 | 19.99 | -19.43 | 104.48 | 0.3389 | 678.0 | 584.8 | |
| 0.00 | 1.76 | 0.00 | 0.93 | -10.99 | 19.95 | -19.47 | 104.88 | 0.3401 | 160.0 | 223.8 | |
| 0.00 | 5.89 | 0.00 | 3.11 | -10.64 | 19.68 | -19.74 | 103.75 | 0.3433 | 705.0 | 583.4 | |
| 0.00 | 7.21 | 0.00 | 3.81 | -11.69 | 19.51 | -19.92 | 106.61 | 0.3496 | -883.0 | -589.8 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -12.09 | 18.89 | -20.54 | 107.30 | 0.3608 | -1009.0 | -861.0 | |
| 0.70 | 1.93 | 0.37 | 1.03 | -12.11 | 18.59 | -20.83 | 107.16 | 0.3655 | -1005.5 | -869.4 | |
| 0.00 | 1.32 | 0.00 | 0.70 | -11.59 | 18.47 | -20.95 | 105.70 | 0.3655 | -965.0 | -742.1 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -11.95 | 18.28 | -21.15 | 106.53 | 0.3698 | -992.0 | -856.9 | |
| 0.00 | 2.55 | 0.00 | 1.36 | -11.73 | 18.26 | -21.16 | 105.96 | 0.3692 | -763.0 | -699.2 | |
| 0.00 | 3.08 | 0.00 | 1.64 | -9.26 | 18.18 | -21.24 | 99.24 | 0.3639 | -618.0 | -685.2 | |
| 0.00 | 1.58 | 0.00 | 0.85 | -12.59 | 17.86 | -21.57 | 107.96 | 0.3787 | -777.0 | -549.9 | |
| 0.00 | 2.11 | 0.00 | 1.13 | -11.44 | 17.79 | -21.63 | 104.93 | 0.3756 | -986.0 | -786.4 | |
| 0.00 | 2.90 | 0.00 | 1.56 | -12.91 | 17.56 | -21.86 | 108.58 | 0.3845 | -1030.0 | -820.8 | |
| 0.00 | 1.23 | 0.00 | 0.66 | -12.15 | 17.30 | -22.12 | 106.48 | 0.3856 | -860.0 | -751.9 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -10.63 | 17.20 | -22.23 | 102.55 | 0.3825 | -851.0 | -662.1 | |
| 0.00 | 2.11 | 0.00 | 1.13 | -12.01 | 17.01 | -22.41 | 105.99 | 0.3895 | -769.0 | -473.5 | |
| 5.10 | 567.40 | 2.75 | 308.18 | -12.60 | 16.56 | -22.86 | 107.19 | 0.3986 | -1098.4 | -407.2 | |
| 0.97 | 25.68 | 0.52 | 13.81 | -10.21 | 16.40 | -23.02 | 101.16 | 0.3940 | -863.5 | -748.8 | |
| 12.93 | -64.00 | 7.00 | -64.00 | -12.12 | 16.04 | -23.38 | 105.75 | 0.4049 | -1052.2 | 999999 | |
| 34.64 | -64.00 | 18.77 | -64.00 | -11.42 | 15.77 | -23.65 | 103.91 | 0.4069 | -1341.1 | 999999 | |
| 6.77 | -64.00 | 3.67 | -64.00 | -10.81 | 15.72 | -23.70 | 102.41 | 0.4060 | -1033.9 | 999999 | |
| 9.23 | -64.00 | 5.01 | -64.00 | -12.01 | 15.55 | -23.88 | 105.24 | 0.4121 | -1112.7 | 999999 | |
| 0.00 | 1.76 | 0.00 | 0.96 | -15.05 | 15.18 | -24.24 | 112.06 | 0.4296 | -754.0 | -559.2 | |
| 2.46 | -64.00 | 1.34 | -64.00 | -10.86 | 15.52 | -23.91 | 102.46 | 0.4093 | -853.3 | 999999 | |
| 30.95 | -64.00 | 16.85 | -64.00 | -12.33 | 15.28 | -24.14 | 105.87 | 0.4172 | -979.9 | 999999 | |
| 8.09 | -64.00 | 4.39 | -64.00 | -10.52 | 15.38 | -24.04 | 101.60 | 0.4107 | -991.4 | 999999 | |
| 8.35 | -64.00 | 4.55 | -64.00 | -11.57 | 15.15 | -24.27 | 104.01 | 0.4168 | -913.4 | 999999 | |
| 2.37 | -64.00 | 1.30 | -64.00 | -12.01 | 14.91 | -24.51 | 104.95 | 0.4218 | -500.2 | 999999 | |
| 1.93 | -64.00 | 1.06 | -64.00 | -11.83 | 14.86 | -24.56 | 104.50 | 0.4221 | -296.3 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
