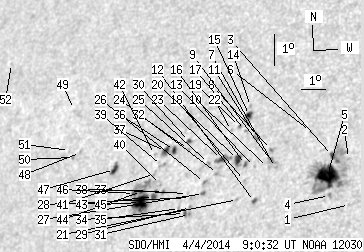

SDO HMI 2014-04-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 76.50 | 262.74 | 51.58 | 176.89 | 10.78 | 0.30 | -39.12 | 66.33 | 0.6777 | -52.8 | -52.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 09:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.66 | 9.54 | 5.00 | -34.42 | 65.45 | 0.6152 | -380.0 | -398.1 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 10.99 | 4.78 | -34.64 | 63.45 | 0.6260 | -565.0 | -512.1 | |
| 1.93 | 96.28 | 1.24 | 61.40 | 11.12 | 4.17 | -35.26 | 63.67 | 0.6343 | -608.9 | -386.9 | |
| 0.00 | 2.20 | 0.00 | 1.39 | 9.87 | 4.22 | -35.21 | 65.45 | 0.6267 | -689.0 | -564.3 | |
| 29.19 | -3.00 | 18.62 | -3.00 | 10.50 | 4.06 | -35.36 | 64.63 | 0.6321 | -957.7 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 11.94 | 3.21 | -36.21 | 63.12 | 0.6502 | 715.0 | 624.1 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 10.89 | 2.03 | -37.39 | 65.31 | 0.6586 | -741.0 | -631.4 | |
| 0.00 | 1.58 | 0.00 | 1.05 | 11.47 | 1.79 | -37.63 | 64.64 | 0.6645 | -814.0 | -690.0 | |
| 0.00 | 5.98 | 0.00 | 3.94 | 11.12 | 1.84 | -37.58 | 65.10 | 0.6621 | -565.0 | -340.6 | |
| 0.00 | 0.79 | 0.00 | 0.52 | 10.91 | 1.72 | -37.70 | 65.46 | 0.6624 | -517.0 | -406.9 | |
| 0.00 | 3.69 | 0.00 | 2.47 | 11.93 | 1.13 | -38.29 | 64.41 | 0.6746 | -546.0 | -491.0 | |
| 1.06 | 2.11 | 0.70 | 1.39 | 9.88 | 1.36 | -38.06 | 67.12 | 0.6615 | -699.2 | -511.7 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 10.98 | 1.20 | -38.22 | 65.66 | 0.6689 | -491.0 | -331.5 | |
| 0.00 | 1.23 | 0.00 | 0.83 | 12.90 | 0.72 | -38.70 | 63.33 | 0.6843 | 533.0 | 465.6 | |
| 2.73 | 7.21 | 1.84 | 4.87 | 12.62 | 0.74 | -38.69 | 63.70 | 0.6827 | 821.2 | 579.5 | |
| 0.79 | 3.34 | 0.53 | 2.23 | 11.07 | 0.84 | -38.58 | 65.75 | 0.6736 | -729.1 | -438.7 | |
| 0.00 | 1.14 | 0.00 | 0.77 | 12.15 | 0.66 | -38.76 | 64.38 | 0.6811 | -450.0 | -365.4 | |
| 0.00 | 1.32 | 0.00 | 0.88 | 10.57 | 0.88 | -38.55 | 66.42 | 0.6707 | -403.0 | -229.8 | |
| 0.00 | 1.41 | 0.00 | 0.95 | 12.30 | 0.40 | -39.02 | 64.33 | 0.6849 | -570.0 | -443.2 | |
| 4.04 | 7.47 | 2.72 | 5.02 | 11.25 | 0.49 | -38.93 | 65.69 | 0.6785 | -678.5 | -529.9 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 9.99 | 0.68 | -38.74 | 67.33 | 0.6702 | -402.0 | -341.1 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 12.19 | 0.10 | -39.32 | 64.64 | 0.6878 | -463.0 | -376.0 | |
| 2.90 | 9.14 | 1.97 | 6.20 | 11.30 | 359.85 | -39.57 | 65.98 | 0.6862 | -662.0 | -440.5 | |
| 0.00 | 2.20 | 0.00 | 1.49 | 10.87 | 359.76 | -39.66 | 66.61 | 0.6852 | 667.0 | 570.9 | |
| 0.00 | 1.58 | 0.00 | 1.08 | 11.21 | 359.35 | -40.07 | 66.37 | 0.6916 | -464.0 | -283.5 | |
| 0.00 | 2.02 | 0.00 | 1.38 | 10.62 | 359.28 | -40.14 | 67.20 | 0.6896 | 706.0 | 617.7 | |
| 0.70 | 2.20 | 0.48 | 1.50 | 10.28 | 359.30 | -40.13 | 67.66 | 0.6879 | 767.1 | 622.1 | |
| 0.00 | 0.53 | 0.00 | 0.36 | 10.19 | 358.79 | -40.63 | 68.03 | 0.6934 | 564.0 | 532.8 | |
| 0.00 | 1.76 | 0.00 | 1.20 | 9.88 | 358.84 | -40.59 | 68.44 | 0.6915 | 705.0 | 652.0 | |
| 1.32 | 2.64 | 0.92 | 1.84 | 11.97 | 358.45 | -40.97 | 65.83 | 0.7054 | 676.0 | 532.2 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 9.66 | 358.83 | -40.59 | 68.74 | 0.6906 | 794.0 | 725.9 | |
| 0.00 | 0.97 | 0.00 | 0.67 | 11.72 | 358.45 | -40.97 | 66.16 | 0.7042 | 676.0 | 509.3 | |
| 0.00 | 0.88 | 0.00 | 0.60 | 10.33 | 358.65 | -40.78 | 67.92 | 0.6957 | -152.0 | -84.2 | |
| 0.53 | 2.20 | 0.36 | 1.51 | 9.71 | 358.62 | -40.80 | 68.78 | 0.6933 | 779.2 | 637.0 | |
| 0.00 | 2.29 | 0.00 | 1.57 | 9.88 | 358.39 | -41.03 | 68.65 | 0.6967 | 372.0 | 383.6 | |
| 2.29 | 9.85 | 1.60 | 6.94 | 11.73 | 357.88 | -41.54 | 66.44 | 0.7107 | 678.7 | 268.2 | |
| 3.34 | -36.00 | 2.36 | -36.00 | 11.73 | 357.51 | -41.91 | 66.63 | 0.7149 | 326.2 | 999999 | |
| 0.62 | 1.67 | 0.43 | 1.17 | 10.47 | 357.65 | -41.78 | 68.23 | 0.7078 | 716.3 | 620.4 | |
| 0.00 | 2.64 | 0.00 | 1.86 | 11.30 | 357.42 | -42.00 | 67.24 | 0.7139 | -715.0 | -578.4 | |
| 0.00 | 1.14 | 0.00 | 0.80 | 10.70 | 357.48 | -41.94 | 68.00 | 0.7106 | 700.0 | 557.2 | |
| 0.00 | 2.20 | 0.00 | 1.55 | 11.07 | 357.17 | -42.25 | 67.66 | 0.7157 | -244.0 | -227.8 | |
| 0.00 | 0.79 | 0.00 | 0.56 | 11.67 | 357.06 | -42.36 | 66.93 | 0.7196 | -537.0 | -422.0 | |
| 2.11 | 61.37 | 1.48 | 43.45 | 10.34 | 357.26 | -42.17 | 68.58 | 0.7117 | 905.4 | 418.2 | |
| 1.23 | -43.00 | 0.87 | -43.00 | 10.54 | 356.73 | -42.70 | 68.57 | 0.7185 | 654.8 | 999999 | |
| 16.53 | -43.00 | 11.71 | -43.00 | 10.19 | 356.74 | -42.68 | 69.01 | 0.7169 | 880.1 | 999999 | |
| 1.76 | -43.00 | 1.25 | -43.00 | 10.50 | 356.44 | -42.98 | 68.75 | 0.7216 | 520.8 | 999999 | |
| 3.43 | 6.42 | 2.50 | 4.68 | 11.33 | 355.44 | -43.98 | 68.13 | 0.7360 | -606.8 | -445.4 | |
| 0.00 | 1.23 | 0.00 | 0.93 | 11.99 | 353.83 | -45.59 | 68.00 | 0.7559 | 712.0 | 619.6 | |
| 0.00 | 0.44 | 0.00 | 0.34 | 13.40 | 353.24 | -46.18 | 66.53 | 0.7675 | 562.0 | 590.6 | |
| 0.00 | 1.49 | 0.00 | 1.13 | 11.86 | 353.51 | -45.91 | 68.31 | 0.7588 | 558.0 | 495.4 | |
| 0.00 | 0.53 | 0.00 | 0.40 | 12.10 | 353.32 | -46.10 | 68.09 | 0.7617 | 433.0 | 353.7 | |
| 0.00 | 1.14 | 0.00 | 0.95 | 15.15 | 349.82 | -49.60 | 65.89 | 0.8076 | 390.0 | 279.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
