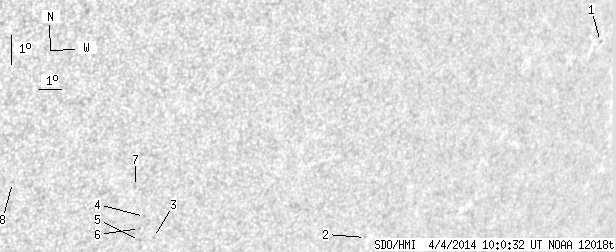

SDO HMI 2014-04-04 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 7.12 | 0.00 | 5.02 | -27.31 | 80.23 | 41.35 | 235.99 | 0.7032 | -274.9 | -191.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 10:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 1.02 | -21.67 | 95.02 | 56.14 | 248.13 | 0.8337 | 376.0 | 317.8 | |
| 0.00 | 0.62 | 0.00 | 0.48 | -28.71 | 86.53 | 47.65 | 237.55 | 0.7704 | 459.0 | 393.0 | |
| 0.00 | 0.79 | 0.00 | 0.53 | -29.39 | 76.91 | 38.03 | 232.51 | 0.6789 | -80.0 | -146.3 | |
| 0.00 | 0.88 | 0.00 | 0.58 | -28.74 | 76.24 | 37.36 | 233.01 | 0.6685 | -688.0 | -524.5 | |
| 0.00 | 1.06 | 0.00 | 0.71 | -29.52 | 76.36 | 37.48 | 232.02 | 0.6741 | -614.0 | -515.0 | |
| 0.00 | 0.70 | 0.00 | 0.47 | -29.14 | 76.19 | 37.32 | 232.44 | 0.6702 | -501.0 | -406.6 | |
| 0.00 | 0.79 | 0.00 | 0.52 | -27.80 | 75.48 | 36.60 | 233.86 | 0.6553 | -469.0 | -363.2 | |
| 0.00 | 1.14 | 0.00 | 0.71 | -27.96 | 70.48 | 31.61 | 230.41 | 0.6029 | -682.0 | -484.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
