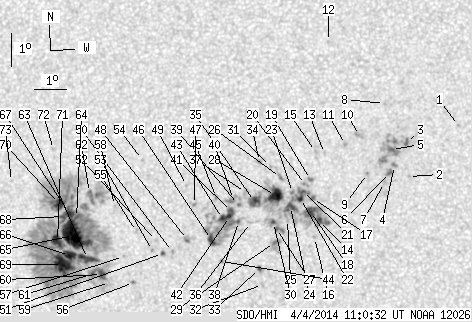

SDO HMI 2014-04-04 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 176.21 | 957.19 | 93.51 | 507.78 | -11.28 | 18.12 | -20.21 | 105.47 | 0.3523 | -206.4 | -125.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.53 | -8.55 | 28.14 | -10.19 | 102.92 | 0.1802 | 821.0 | 632.7 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.04 | 26.55 | -11.78 | 108.37 | 0.2128 | 900.0 | 678.3 | |
| 0.79 | 34.90 | 0.40 | 17.71 | -9.05 | 26.52 | -11.81 | 103.76 | 0.2090 | 1168.1 | 904.8 | |
| 0.00 | 2.55 | 0.00 | 1.29 | -9.70 | 26.12 | -12.20 | 106.31 | 0.2181 | 1050.0 | 940.3 | |
| 1.41 | -3.00 | 0.71 | -3.00 | -9.22 | 26.05 | -12.28 | 104.07 | 0.2174 | 1193.9 | 999999 | |
| 0.00 | 3.87 | 0.00 | 1.96 | -9.91 | 25.96 | -12.37 | 107.04 | 0.2217 | 1036.0 | 959.4 | |
| 0.00 | 2.11 | 0.00 | 1.07 | -10.20 | 25.79 | -12.54 | 108.11 | 0.2258 | 931.0 | 737.9 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -7.83 | 25.88 | -12.45 | 97.61 | 0.2165 | 872.0 | 767.1 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -9.92 | 25.27 | -13.06 | 106.32 | 0.2329 | 958.0 | 845.9 | |
| 0.00 | 5.10 | 0.00 | 2.60 | -8.77 | 25.07 | -13.26 | 101.30 | 0.2322 | 924.0 | 708.1 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -9.03 | 24.62 | -13.71 | 102.06 | 0.2404 | 989.0 | 787.0 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -5.93 | 24.20 | -14.13 | 89.08 | 0.2440 | 739.0 | 616.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -9.28 | 23.95 | -14.37 | 102.58 | 0.2522 | 910.0 | 760.8 | |
| 2.64 | 77.89 | 1.35 | 40.07 | -11.29 | 23.70 | -14.63 | 109.91 | 0.2646 | 1025.6 | 586.2 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.22 | 23.67 | -14.65 | 102.12 | 0.2566 | 831.0 | 681.7 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -11.80 | 23.51 | -14.81 | 111.50 | 0.2702 | 778.0 | 596.9 | |
| 0.97 | 3.16 | 0.50 | 1.63 | -10.62 | 23.51 | -14.81 | 107.29 | 0.2644 | 1070.0 | 757.5 | |
| 6.95 | -14.00 | 3.57 | -14.00 | -11.01 | 23.43 | -14.90 | 108.62 | 0.2675 | 1196.3 | 999999 | |
| 0.00 | 2.37 | 0.00 | 1.22 | -10.05 | 23.48 | -14.85 | 105.14 | 0.2626 | 1161.0 | 943.9 | |
| 0.00 | 2.46 | 0.00 | 1.26 | -10.20 | 23.31 | -15.01 | 105.54 | 0.2658 | 1017.0 | 926.1 | |
| 1.14 | -14.00 | 0.59 | -14.00 | -10.40 | 23.21 | -15.12 | 106.20 | 0.2684 | 1206.3 | 999999 | |
| 2.73 | -14.00 | 1.40 | -14.00 | -10.61 | 23.13 | -15.19 | 106.89 | 0.2704 | 1249.4 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.00 | -10.42 | 22.89 | -15.44 | 106.00 | 0.2735 | 950.0 | 789.2 | |
| 3.52 | -14.00 | 1.81 | -14.00 | -10.84 | 22.81 | -15.52 | 107.40 | 0.2767 | 977.2 | 999999 | |
| 0.00 | 2.99 | 0.00 | 1.54 | -11.23 | 22.69 | -15.64 | 108.64 | 0.2803 | 235.0 | 232.5 | |
| 0.00 | 2.99 | 0.00 | 1.54 | -9.96 | 22.54 | -15.79 | 104.07 | 0.2776 | 889.0 | 792.9 | |
| 0.88 | 14.51 | 0.45 | 7.50 | -11.49 | 22.32 | -16.00 | 109.16 | 0.2873 | 881.5 | 527.5 | |
| 13.54 | 57.76 | 6.99 | 29.86 | -10.50 | 22.35 | -15.98 | 105.80 | 0.2826 | 1142.9 | 475.8 | |
| 0.53 | 11.17 | 0.27 | 5.78 | -11.91 | 22.23 | -16.09 | 110.46 | 0.2908 | 659.3 | 243.6 | |
| 1.23 | -27.00 | 0.64 | -27.00 | -11.31 | 22.24 | -16.09 | 108.47 | 0.2878 | 877.2 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -9.62 | 22.24 | -16.09 | 102.67 | 0.2814 | 841.0 | 626.6 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -13.16 | 21.77 | -16.56 | 113.93 | 0.3050 | 771.0 | 562.3 | |
| 1.14 | 2.20 | 0.59 | 1.14 | -12.68 | 21.70 | -16.62 | 112.36 | 0.3031 | -951.5 | -797.9 | |
| 0.00 | 2.55 | 0.00 | 1.32 | -9.46 | 21.90 | -16.43 | 101.90 | 0.2864 | 810.0 | 680.2 | |
| 6.86 | -28.00 | 3.55 | -28.00 | -10.66 | 21.67 | -16.66 | 105.81 | 0.2941 | 962.3 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.00 | -11.28 | 21.51 | -16.82 | 107.73 | 0.2993 | -497.0 | -401.4 | |
| 0.00 | 4.22 | 0.00 | 2.19 | -10.38 | 21.40 | -16.93 | 104.68 | 0.2974 | 691.0 | 606.0 | |
| 0.70 | 69.45 | 0.37 | 36.23 | -11.24 | 21.13 | -17.20 | 107.27 | 0.3051 | 507.1 | -172.1 | |
| 0.35 | 1.41 | 0.18 | 0.73 | -10.73 | 21.16 | -17.17 | 105.66 | 0.3026 | 945.0 | 847.2 | |
| 0.00 | 7.47 | 0.00 | 3.88 | -10.58 | 21.01 | -17.32 | 105.05 | 0.3044 | 960.0 | 717.6 | |
| 2.46 | -38.00 | 1.28 | -38.00 | -10.93 | 20.92 | -17.41 | 106.13 | 0.3071 | 1051.1 | 999999 | |
| 3.43 | -38.00 | 1.79 | -38.00 | -11.08 | 20.85 | -17.48 | 106.55 | 0.3089 | 866.4 | 999999 | |
| 3.52 | -38.00 | 1.83 | -38.00 | -11.13 | 20.62 | -17.71 | 106.54 | 0.3127 | 567.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -12.43 | 20.50 | -17.83 | 110.39 | 0.3204 | -833.0 | -729.4 | |
| 0.00 | 2.20 | 0.00 | 1.15 | -10.50 | 20.47 | -17.86 | 104.44 | 0.3128 | 780.0 | 638.6 | |
| 4.92 | -38.00 | 2.57 | -38.00 | -11.75 | 20.22 | -18.10 | 108.13 | 0.3215 | -1107.0 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -10.68 | 19.75 | -18.58 | 104.55 | 0.3249 | 748.0 | 595.5 | |
| 0.00 | 4.31 | 0.00 | 2.26 | -11.73 | 19.45 | -18.88 | 107.45 | 0.3335 | -871.0 | -694.3 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -10.10 | 19.53 | -18.80 | 102.67 | 0.3266 | 570.0 | 417.8 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -12.07 | 18.94 | -19.39 | 108.06 | 0.3430 | -958.0 | -805.2 | |
| 0.79 | 1.85 | 0.42 | 0.97 | -12.12 | 18.61 | -19.72 | 107.96 | 0.3483 | -961.9 | -845.7 | |
| 0.00 | 1.41 | 0.00 | 0.74 | -11.72 | 18.45 | -19.88 | 106.73 | 0.3492 | -819.0 | -600.4 | |
| 0.00 | 1.49 | 0.00 | 0.79 | -12.01 | 18.29 | -20.04 | 107.45 | 0.3528 | -915.0 | -776.4 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -9.27 | 18.16 | -20.17 | 99.62 | 0.3466 | -837.0 | -677.2 | |
| 0.00 | 2.02 | 0.00 | 1.07 | -11.42 | 17.82 | -20.51 | 105.52 | 0.3580 | -811.0 | -665.3 | |
| 0.00 | 1.49 | 0.00 | 0.80 | -12.95 | 17.59 | -20.74 | 109.48 | 0.3676 | -1016.0 | -851.1 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -12.16 | 17.33 | -21.00 | 107.20 | 0.3683 | -929.0 | -674.3 | |
| 0.00 | 1.14 | 0.00 | 0.61 | -10.61 | 17.16 | -21.17 | 102.97 | 0.3658 | -810.0 | -599.7 | |
| 0.00 | 0.97 | 0.00 | 0.52 | -12.92 | 16.80 | -21.53 | 108.84 | 0.3795 | -255.0 | -242.7 | |
| 4.84 | 572.32 | 2.59 | 308.41 | -12.67 | 16.56 | -21.77 | 108.04 | 0.3822 | -1055.0 | -402.3 | |
| 2.20 | -60.00 | 1.18 | -60.00 | -12.63 | 16.30 | -22.03 | 107.77 | 0.3860 | -900.6 | 999999 | |
| 0.53 | 28.57 | 0.28 | 15.24 | -10.19 | 16.37 | -21.96 | 101.51 | 0.3772 | -845.3 | -665.6 | |
| 9.67 | -60.00 | 5.19 | -60.00 | -12.17 | 16.14 | -22.19 | 106.52 | 0.3867 | -1070.0 | 999999 | |
| 2.29 | -60.00 | 1.23 | -60.00 | -10.92 | 15.88 | -22.44 | 103.21 | 0.3867 | -1070.0 | 999999 | |
| 41.06 | -60.00 | 22.07 | -60.00 | -11.46 | 15.74 | -22.59 | 104.51 | 0.3905 | -1268.4 | 999999 | |
| 8.53 | -60.00 | 4.59 | -60.00 | -12.05 | 15.55 | -22.77 | 105.91 | 0.3953 | -1120.1 | 999999 | |
| 6.15 | -60.00 | 3.31 | -60.00 | -10.79 | 15.66 | -22.67 | 102.79 | 0.3898 | -1021.7 | 999999 | |
| 2.90 | -60.00 | 1.56 | -60.00 | -10.87 | 15.46 | -22.87 | 102.91 | 0.3933 | -809.5 | 999999 | |
| 21.10 | -60.00 | 11.39 | -60.00 | -12.31 | 15.30 | -23.03 | 106.41 | 0.4002 | -1026.3 | 999999 | |
| 7.21 | -60.00 | 3.88 | -60.00 | -10.48 | 15.36 | -22.97 | 101.87 | 0.3938 | -983.4 | 999999 | |
| 9.23 | -60.00 | 4.98 | -60.00 | -11.62 | 15.19 | -23.13 | 104.64 | 0.3995 | -942.7 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.99 | -8.85 | 15.28 | -23.05 | 97.72 | 0.3921 | -600.0 | -450.4 | |
| 0.00 | 1.14 | 0.00 | 0.62 | -9.75 | 13.82 | -24.51 | 99.60 | 0.4165 | -521.0 | -399.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
