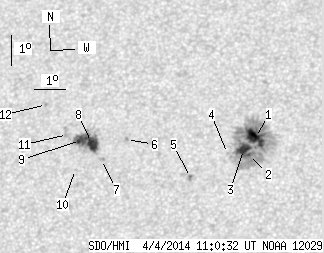

SDO HMI 2014-04-04 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.31 | 205.18 | 27.04 | 112.13 | 17.03 | 29.66 | -8.67 | 19.86 | 0.4240 | -82.1 | -251.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.02 | 152.00 | 9.82 | 82.68 | 17.15 | 31.12 | -7.21 | 16.78 | 0.4173 | -1110.3 | -454.3 | |
| 1.05 | -1.00 | 0.57 | -1.00 | 16.60 | 30.91 | -7.41 | 17.64 | 0.4098 | -1329.3 | 999999 | |
| 9.23 | -1.00 | 5.02 | -1.00 | 16.76 | 30.75 | -7.58 | 17.87 | 0.4132 | -1135.5 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.48 | 16.64 | 30.25 | -8.08 | 19.07 | 0.4138 | -571.0 | -455.3 | |
| 0.00 | 2.37 | 0.00 | 1.29 | 15.88 | 29.11 | -9.21 | 22.22 | 0.4089 | -971.0 | -749.2 | |
| 0.00 | 1.32 | 0.00 | 0.73 | 17.17 | 27.01 | -11.32 | 25.29 | 0.4408 | 862.0 | 723.5 | |
| 0.00 | 2.20 | 0.00 | 1.21 | 16.53 | 26.25 | -12.08 | 27.43 | 0.4372 | 808.0 | 730.3 | |
| 14.68 | 37.01 | 8.12 | 20.50 | 17.10 | 25.89 | -12.43 | 27.50 | 0.4476 | 1077.4 | 660.7 | |
| 6.33 | -8.00 | 3.51 | -8.00 | 17.17 | 25.53 | -12.79 | 28.09 | 0.4512 | 999.7 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 16.23 | 25.44 | -12.89 | 29.33 | 0.4391 | 764.0 | 575.8 | |
| 0.00 | 7.38 | 0.00 | 4.11 | 17.38 | 25.10 | -13.23 | 28.66 | 0.4572 | 685.0 | 585.8 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 18.39 | 24.34 | -13.99 | 28.91 | 0.4764 | 733.0 | 616.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
