SDO HMI 2014-04-04 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 191.21 | 923.40 | 101.24 | 488.14 | -11.29 | 18.13 | -19.65 | 105.86 | 0.3438 | -227.4 | -102.4 | |
|
previous
or next observation for the same group /

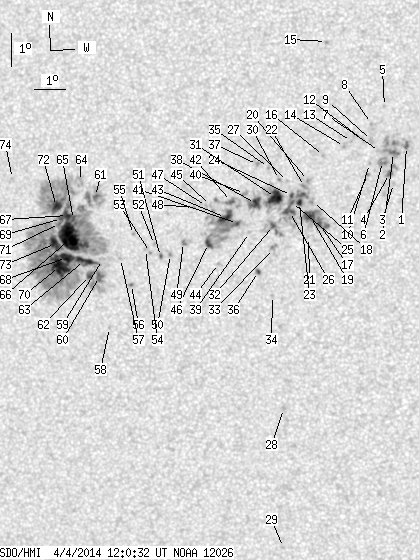

back to the solar disc SDO HMI 2014-04-04 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.79 | 24.09 | 0.40 | 12.19 | -9.06 | 26.56 | -11.22 | 104.46 | 0.1993 | 1183.6 | 868.3 | |
| 0.97 | -1.00 | 0.49 | -1.00 | -9.23 | 26.15 | -11.62 | 104.83 | 0.2067 | 1265.5 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -10.16 | 26.12 | -11.66 | 109.10 | 0.2115 | 874.0 | 597.7 | |
| 1.41 | 8.00 | 0.71 | 4.05 | -9.86 | 26.01 | -11.77 | 107.57 | 0.2118 | 1074.9 | 844.6 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -7.85 | 25.92 | -11.86 | 97.99 | 0.2065 | 880.0 | 674.0 | |
| 0.00 | 7.21 | 0.00 | 3.65 | -9.49 | 25.80 | -11.98 | 105.65 | 0.2135 | 899.0 | 943.8 | |
| 0.00 | 2.90 | 0.00 | 1.47 | -9.19 | 25.72 | -12.06 | 104.18 | 0.2137 | 667.0 | 560.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -8.35 | 25.50 | -12.28 | 100.10 | 0.2147 | 782.0 | 624.1 | |
| 0.00 | 3.25 | 0.00 | 1.65 | -8.86 | 25.49 | -12.29 | 102.43 | 0.2164 | 793.0 | 631.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -9.54 | 25.40 | -12.38 | 105.44 | 0.2204 | 845.0 | 589.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.87 | 25.32 | -12.46 | 106.79 | 0.2230 | 999.0 | 879.8 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -8.85 | 25.24 | -12.54 | 102.19 | 0.2205 | 834.0 | 751.5 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -8.87 | 24.86 | -12.92 | 101.98 | 0.2268 | 911.0 | 735.6 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -9.01 | 24.64 | -13.14 | 102.43 | 0.2310 | 928.0 | 780.7 | |
| 0.00 | 1.05 | 0.00 | 0.54 | -5.85 | 24.18 | -13.60 | 88.66 | 0.2350 | 803.0 | 669.4 | |
| 0.00 | 1.49 | 0.00 | 0.76 | -9.27 | 23.97 | -13.81 | 102.95 | 0.2428 | 905.0 | 714.4 | |
| 1.93 | 36.74 | 0.99 | 18.83 | -11.31 | 23.75 | -14.03 | 110.69 | 0.2552 | 1097.2 | 609.0 | |
| 0.00 | 2.64 | 0.00 | 1.35 | -10.64 | 23.57 | -14.21 | 107.96 | 0.2548 | 1028.0 | 843.0 | |
| 8.00 | -17.00 | 4.10 | -17.00 | -11.09 | 23.48 | -14.30 | 109.55 | 0.2584 | 1177.0 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -10.00 | 23.47 | -14.31 | 105.44 | 0.2536 | 1062.0 | 859.1 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -11.72 | 23.38 | -14.39 | 111.74 | 0.2632 | 558.0 | 439.5 | |
| 0.00 | 3.43 | 0.00 | 1.76 | -10.18 | 23.34 | -14.44 | 106.00 | 0.2565 | 1175.0 | 907.3 | |
| 2.46 | 77.44 | 1.26 | 39.82 | -10.66 | 23.16 | -14.62 | 107.61 | 0.2615 | 1211.0 | 539.4 | |
| 1.32 | -23.00 | 0.68 | -23.00 | -10.44 | 22.91 | -14.86 | 106.57 | 0.2644 | 931.9 | 999999 | |
| 1.14 | -23.00 | 0.59 | -23.00 | -10.65 | 22.90 | -14.88 | 107.33 | 0.2655 | 894.6 | 999999 | |
| 4.75 | -23.00 | 2.44 | -23.00 | -10.92 | 22.83 | -14.95 | 108.23 | 0.2679 | 963.7 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -10.02 | 22.81 | -14.97 | 104.91 | 0.2644 | 821.0 | 581.1 | |
| 0.00 | 2.11 | 0.00 | 1.10 | -16.87 | 22.22 | -15.56 | 126.01 | 0.3187 | 783.0 | 655.6 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -21.13 | 21.80 | -15.98 | 135.28 | 0.3665 | 531.0 | 445.5 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.95 | 22.56 | -15.22 | 104.47 | 0.2682 | 907.0 | 799.2 | |
| 12.92 | -23.00 | 6.65 | -23.00 | -10.48 | 22.41 | -15.37 | 106.28 | 0.2728 | 1143.4 | 999999 | |
| 1.76 | 16.26 | 0.91 | 8.38 | -11.32 | 22.30 | -15.48 | 109.13 | 0.2783 | 903.5 | 470.1 | |
| 0.00 | 4.48 | 0.00 | 2.31 | -12.02 | 22.26 | -15.52 | 111.44 | 0.2825 | 666.0 | 498.6 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -13.43 | 22.13 | -15.65 | 115.90 | 0.2929 | 800.0 | 611.2 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.58 | 22.23 | -15.55 | 102.88 | 0.2723 | 899.0 | 649.2 | |
| 0.97 | 2.29 | 0.50 | 1.18 | -12.69 | 21.74 | -16.04 | 113.07 | 0.2944 | -1012.2 | -848.2 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -9.48 | 21.89 | -15.89 | 102.29 | 0.2776 | 860.0 | 737.5 | |
| 6.77 | 16.09 | 3.50 | 8.31 | -10.65 | 21.76 | -16.01 | 106.29 | 0.2837 | 1012.9 | 629.0 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -11.51 | 21.52 | -16.26 | 108.99 | 0.2914 | 199.0 | 173.9 | |
| 0.00 | 3.25 | 0.00 | 1.68 | -10.33 | 21.43 | -16.35 | 104.96 | 0.2879 | 767.0 | 663.1 | |
| 1.41 | 72.87 | 0.73 | 37.89 | -11.23 | 21.16 | -16.62 | 107.73 | 0.2959 | 522.1 | -158.5 | |
| 1.41 | 13.71 | 0.73 | 7.11 | -10.56 | 21.01 | -16.77 | 105.41 | 0.2956 | 926.1 | 649.9 | |
| 8.97 | -41.00 | 4.66 | -41.00 | -11.04 | 20.79 | -16.99 | 106.79 | 0.3010 | 796.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -12.41 | 20.47 | -17.31 | 110.84 | 0.3123 | -845.0 | -617.9 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -10.66 | 20.33 | -17.45 | 105.24 | 0.3068 | 558.0 | 575.4 | |
| 3.60 | -41.00 | 1.88 | -41.00 | -11.80 | 20.19 | -17.59 | 108.71 | 0.3136 | -1069.2 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.96 | -10.69 | 20.20 | -17.58 | 105.23 | 0.3089 | 664.0 | 547.6 | |
| 0.00 | 1.23 | 0.00 | 0.64 | -10.70 | 19.78 | -18.00 | 104.99 | 0.3157 | 762.0 | 591.9 | |
| 0.00 | 2.55 | 0.00 | 1.33 | -11.74 | 19.39 | -18.39 | 107.88 | 0.3259 | -1003.0 | -808.8 | |
| 0.00 | 1.05 | 0.00 | 0.55 | -12.09 | 18.95 | -18.83 | 108.54 | 0.3344 | -978.0 | -843.3 | |
| 0.62 | 1.76 | 0.32 | 0.93 | -12.14 | 18.62 | -19.16 | 108.43 | 0.3397 | -940.4 | -837.6 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -11.77 | 18.45 | -19.33 | 107.25 | 0.3408 | -870.0 | -708.2 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -12.00 | 18.30 | -19.48 | 107.82 | 0.3441 | -1024.0 | -817.9 | |
| 0.00 | 1.58 | 0.00 | 0.83 | -11.91 | 18.15 | -19.63 | 107.44 | 0.3461 | -861.0 | -722.7 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -11.44 | 17.79 | -19.99 | 105.89 | 0.3499 | -965.0 | -756.4 | |
| 0.44 | 1.85 | 0.23 | 0.98 | -12.94 | 17.61 | -20.17 | 109.88 | 0.3590 | -919.2 | -739.0 | |
| 0.00 | 0.97 | 0.00 | 0.51 | -12.15 | 17.31 | -20.47 | 107.52 | 0.3600 | -852.0 | -694.1 | |
| 0.00 | 0.79 | 0.00 | 0.42 | -14.21 | 16.76 | -21.02 | 112.51 | 0.3779 | 703.0 | 459.9 | |
| 0.00 | 1.67 | 0.00 | 0.89 | -12.15 | 16.72 | -21.06 | 107.16 | 0.3692 | -140.0 | -164.7 | |
| 3.34 | 30.94 | 1.78 | 16.53 | -12.66 | 16.58 | -21.20 | 108.40 | 0.3735 | -1061.1 | -519.5 | |
| 1.32 | 22.94 | 0.70 | 12.20 | -10.25 | 16.64 | -21.14 | 102.01 | 0.3644 | -1153.1 | -701.1 | |
| 2.73 | -60.00 | 1.46 | -60.00 | -12.62 | 16.25 | -21.53 | 108.07 | 0.3783 | -910.1 | 999999 | |
| 8.35 | 519.08 | 4.47 | 278.74 | -12.16 | 16.13 | -21.65 | 106.81 | 0.3784 | -1052.2 | -372.3 | |
| 0.00 | 7.12 | 0.00 | 3.80 | -9.78 | 16.15 | -21.63 | 100.55 | 0.3711 | -361.0 | -400.4 | |
| 3.25 | -63.00 | 1.74 | -63.00 | -10.91 | 15.87 | -21.91 | 103.43 | 0.3784 | -1033.8 | 999999 | |
| 47.64 | -63.00 | 25.51 | -63.00 | -11.45 | 15.76 | -22.02 | 104.78 | 0.3817 | -1253.4 | 999999 | |
| 6.94 | -63.00 | 3.72 | -63.00 | -10.78 | 15.68 | -22.10 | 103.01 | 0.3809 | -1021.9 | 999999 | |
| 10.02 | -63.00 | 5.38 | -63.00 | -12.04 | 15.54 | -22.24 | 106.18 | 0.3870 | -1136.9 | 999999 | |
| 2.11 | -63.00 | 1.13 | -63.00 | -10.87 | 15.48 | -22.30 | 103.14 | 0.3844 | -876.3 | 999999 | |
| 25.32 | -63.00 | 13.62 | -63.00 | -12.31 | 15.29 | -22.49 | 106.69 | 0.3919 | -996.0 | 999999 | |
| 0.26 | -63.00 | 0.14 | -63.00 | -11.01 | 15.40 | -22.38 | 103.48 | 0.3860 | -773.7 | 999999 | |
| 7.74 | -63.00 | 4.15 | -63.00 | -10.50 | 15.34 | -22.44 | 102.13 | 0.3855 | -977.2 | 999999 | |
| 10.55 | -63.00 | 5.67 | -63.00 | -11.61 | 15.22 | -22.56 | 104.91 | 0.3906 | -928.6 | 999999 | |
| 0.00 | 1.05 | 0.00 | 0.57 | -9.60 | 13.95 | -23.83 | 99.41 | 0.4055 | -604.0 | -503.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
