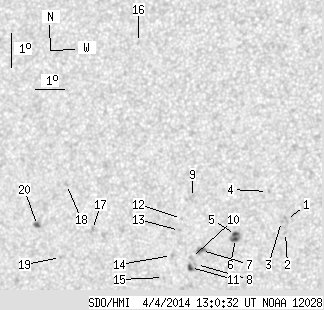

SDO HMI 2014-04-04 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.47 | 39.80 | 4.20 | 22.37 | -8.06 | 9.00 | -28.23 | 95.31 | 0.4721 | 530.7 | 499.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.46 | 0.00 | 1.34 | -7.93 | 12.59 | -24.64 | 95.22 | 0.4164 | 726.0 | 663.5 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -8.32 | 12.53 | -24.70 | 96.15 | 0.4176 | 793.0 | 600.2 | |
| 0.00 | 0.88 | 0.00 | 0.48 | -7.98 | 12.42 | -24.81 | 95.33 | 0.4191 | 713.0 | 616.8 | |
| 0.00 | 0.70 | 0.00 | 0.38 | -7.06 | 12.01 | -25.22 | 93.12 | 0.4253 | 514.0 | 548.0 | |
| 2.02 | 8.00 | 1.12 | 4.42 | -8.30 | 10.85 | -26.38 | 95.92 | 0.4439 | 969.6 | 777.4 | |
| 2.20 | -5.00 | 1.21 | -5.00 | -8.42 | 10.84 | -26.39 | 96.18 | 0.4441 | 1021.3 | 999999 | |
| 0.00 | 5.01 | 0.00 | 2.80 | -8.72 | 9.66 | -27.57 | 96.72 | 0.4626 | 1044.0 | 896.2 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -9.13 | 9.45 | -27.78 | 97.58 | 0.4661 | 598.0 | 563.0 | |
| 0.00 | 2.72 | 0.00 | 1.52 | -7.12 | 9.47 | -27.76 | 93.24 | 0.4648 | 664.0 | 631.5 | |
| 0.00 | 2.29 | 0.00 | 1.28 | -8.91 | 9.30 | -27.93 | 97.09 | 0.4682 | 690.0 | 559.8 | |
| 1.76 | 2.90 | 0.99 | 1.63 | -9.21 | 9.24 | -27.99 | 97.72 | 0.4694 | 824.5 | 777.9 | |
| 0.00 | 0.70 | 0.00 | 0.39 | -7.73 | 9.05 | -28.18 | 94.54 | 0.4714 | 668.0 | 557.4 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -8.08 | 8.96 | -28.28 | 95.29 | 0.4729 | 772.0 | 552.2 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -8.82 | 8.62 | -28.61 | 96.81 | 0.4785 | 602.0 | 568.1 | |
| 0.00 | 1.05 | 0.00 | 0.60 | -9.46 | 8.28 | -28.95 | 98.11 | 0.4842 | 621.0 | 520.5 | |
| 0.00 | 1.23 | 0.00 | 0.70 | -2.37 | 7.84 | -29.39 | 83.60 | 0.4954 | 682.0 | 563.1 | |
| 0.00 | 2.55 | 0.00 | 1.47 | -7.88 | 5.93 | -31.30 | 94.76 | 0.5184 | 741.0 | 521.9 | |
| 0.00 | 1.32 | 0.00 | 0.77 | -6.48 | 5.12 | -32.11 | 92.09 | 0.5306 | -854.0 | -696.0 | |
| 0.00 | 0.88 | 0.00 | 0.52 | -8.66 | 4.72 | -32.51 | 96.17 | 0.5366 | -657.0 | -532.7 | |
| 1.49 | 3.25 | 0.88 | 1.92 | -7.65 | 3.98 | -33.25 | 94.29 | 0.5471 | -835.5 | -705.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
