SDO HMI 2014-04-04 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.11 | 195.01 | 24.11 | 106.15 | 17.11 | 29.80 | -6.88 | 15.95 | 0.4164 | -95.5 | -344.8 | |
|
previous
or next observation for the same group /

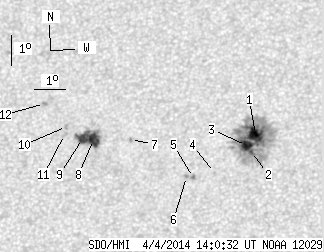

back to the solar disc SDO HMI 2014-04-04 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.97 | 151.60 | 7.59 | 82.26 | 17.25 | 31.02 | -5.67 | 13.27 | 0.4125 | -1155.1 | -475.4 | |
| 0.97 | -1.00 | 0.52 | -1.00 | 16.70 | 30.91 | -5.78 | 13.85 | 0.4043 | -1289.7 | 999999 | |
| 8.70 | -1.00 | 4.72 | -1.00 | 16.90 | 30.74 | -5.94 | 14.11 | 0.4080 | -1183.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 16.03 | 29.76 | -6.92 | 16.95 | 0.3988 | -815.0 | -609.6 | |
| 0.00 | 2.28 | 0.00 | 1.23 | 15.88 | 29.11 | -7.57 | 18.57 | 0.3997 | -993.0 | -790.5 | |
| 0.00 | 1.49 | 0.00 | 0.81 | 15.92 | 28.89 | -7.79 | 19.04 | 0.4014 | -723.0 | -600.6 | |
| 0.00 | 1.32 | 0.00 | 0.72 | 17.16 | 27.06 | -9.62 | 21.90 | 0.4299 | 797.0 | 603.0 | |
| 12.30 | 31.20 | 6.77 | 17.19 | 17.18 | 25.88 | -10.80 | 24.26 | 0.4376 | 1060.1 | 676.8 | |
| 8.17 | -8.00 | 4.51 | -8.00 | 17.22 | 25.52 | -11.16 | 24.92 | 0.4405 | 1010.3 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.17 | 17.63 | 24.99 | -11.70 | 25.55 | 0.4498 | 607.0 | 607.1 | |
| 0.00 | 2.46 | 0.00 | 1.36 | 17.37 | 24.94 | -11.74 | 25.91 | 0.4464 | 623.0 | 453.9 | |
| 0.00 | 1.76 | 0.00 | 0.98 | 18.41 | 24.22 | -12.46 | 26.19 | 0.4657 | 826.0 | 686.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
