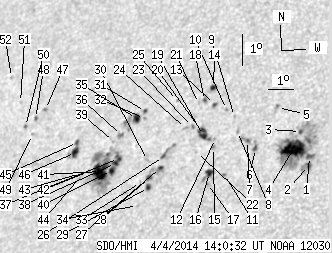

SDO HMI 2014-04-04 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 87.30 | 312.09 | 56.87 | 203.07 | 10.74 | 0.01 | -36.67 | 64.98 | 0.6485 | -76.4 | -41.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.67 | 100.54 | 1.02 | 62.02 | 10.26 | 4.60 | -32.09 | 62.76 | 0.5901 | -941.5 | -435.3 | |
| 1.49 | 7.65 | 0.91 | 4.68 | 9.98 | 4.59 | -32.09 | 63.20 | 0.5884 | -946.8 | -750.1 | |
| 0.79 | -1.00 | 0.49 | -1.00 | 11.07 | 4.17 | -32.51 | 61.85 | 0.6004 | -662.4 | 999999 | |
| 25.31 | -1.00 | 15.63 | -1.00 | 10.55 | 3.98 | -32.70 | 62.77 | 0.5995 | -951.9 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.33 | 11.88 | 3.23 | -33.45 | 61.35 | 0.6170 | 496.0 | 474.5 | |
| 1.14 | 3.87 | 0.72 | 2.43 | 10.64 | 2.58 | -34.10 | 63.62 | 0.6173 | -810.9 | -676.1 | |
| 0.44 | 5.10 | 0.28 | 3.22 | 10.91 | 2.25 | -34.43 | 63.44 | 0.6230 | -781.4 | -627.7 | |
| 0.00 | 1.85 | 0.00 | 1.17 | 11.22 | 1.84 | -34.85 | 63.27 | 0.6298 | -702.0 | -452.7 | |
| 0.00 | 1.14 | 0.00 | 0.73 | 11.70 | 1.66 | -35.03 | 62.70 | 0.6348 | -707.0 | -534.8 | |
| 0.00 | 1.23 | 0.00 | 0.79 | 11.94 | 1.32 | -35.36 | 62.58 | 0.6402 | -722.0 | -559.9 | |
| 0.00 | 1.49 | 0.00 | 0.95 | 9.89 | 1.52 | -35.16 | 65.40 | 0.6262 | -762.0 | -632.1 | |
| 0.00 | 0.79 | 0.00 | 0.51 | 11.05 | 1.03 | -35.65 | 64.03 | 0.6385 | -599.0 | -530.2 | |
| 0.97 | 2.46 | 0.63 | 1.59 | 12.13 | 0.84 | -35.84 | 62.63 | 0.6470 | -664.7 | -529.6 | |
| 2.20 | 3.34 | 1.43 | 2.18 | 12.68 | 0.71 | -35.97 | 61.95 | 0.6516 | 835.0 | 692.8 | |
| 0.00 | 1.76 | 0.00 | 1.13 | 10.77 | 1.00 | -35.68 | 64.45 | 0.6374 | -178.0 | -204.1 | |
| 3.52 | 8.26 | 2.25 | 5.28 | 10.00 | 0.95 | -35.73 | 65.61 | 0.6338 | -618.5 | -336.2 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 9.66 | 0.92 | -35.77 | 66.12 | 0.6324 | 550.0 | 530.2 | |
| 0.53 | 2.81 | 0.34 | 1.83 | 12.29 | 0.43 | -36.25 | 62.68 | 0.6526 | -519.7 | -90.2 | |
| 3.69 | 10.37 | 2.39 | 6.70 | 11.18 | 0.56 | -36.12 | 64.15 | 0.6449 | -736.2 | -534.6 | |
| 2.64 | -19.00 | 1.71 | -19.00 | 11.34 | 0.46 | -36.22 | 63.98 | 0.6470 | -736.4 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.46 | 12.21 | 0.22 | -36.47 | 62.92 | 0.6547 | -441.0 | -339.5 | |
| 0.00 | 0.97 | 0.00 | 0.62 | 10.66 | 0.37 | -36.31 | 65.01 | 0.6444 | -298.0 | -258.7 | |
| 0.00 | 1.58 | 0.00 | 1.03 | 11.49 | 0.10 | -36.58 | 64.00 | 0.6521 | -570.0 | -468.8 | |
| 0.00 | 1.85 | 0.00 | 1.21 | 11.45 | 359.84 | -36.85 | 64.22 | 0.6550 | -497.0 | -439.3 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 12.36 | 359.38 | -37.30 | 63.24 | 0.6653 | -436.0 | -365.2 | |
| 0.88 | 7.21 | 0.58 | 4.73 | 10.62 | 359.11 | -37.57 | 65.81 | 0.6593 | 774.8 | 655.9 | |
| 1.41 | 4.83 | 0.92 | 3.17 | 10.28 | 359.04 | -37.64 | 66.32 | 0.6584 | 788.4 | 549.7 | |
| 1.76 | 5.62 | 1.16 | 3.71 | 10.00 | 358.66 | -38.02 | 66.94 | 0.6616 | 780.8 | 555.6 | |
| 2.11 | 3.34 | 1.39 | 2.20 | 9.69 | 358.66 | -38.02 | 67.38 | 0.6601 | 767.2 | 609.1 | |
| 0.00 | 1.76 | 0.00 | 1.16 | 10.54 | 358.50 | -38.18 | 66.27 | 0.6661 | -343.0 | -175.4 | |
| 0.79 | 1.93 | 0.53 | 1.30 | 12.10 | 358.18 | -38.50 | 64.31 | 0.6778 | 645.7 | 570.1 | |
| 0.00 | 0.97 | 0.00 | 0.65 | 11.88 | 358.18 | -38.50 | 64.61 | 0.6767 | 854.0 | 682.5 | |
| 0.00 | 0.97 | 0.00 | 0.64 | 9.87 | 358.33 | -38.35 | 67.31 | 0.6650 | 393.0 | 345.8 | |
| 0.00 | 1.05 | 0.00 | 0.69 | 9.15 | 358.30 | -38.38 | 68.33 | 0.6619 | 534.0 | 354.8 | |
| 3.87 | 14.24 | 2.61 | 9.61 | 11.90 | 357.86 | -38.82 | 64.76 | 0.6805 | 733.3 | 283.7 | |
| 0.62 | 3.43 | 0.42 | 2.32 | 11.41 | 357.35 | -39.33 | 65.72 | 0.6839 | -680.6 | -501.7 | |
| 2.55 | 81.47 | 1.72 | 55.25 | 10.69 | 357.34 | -39.34 | 66.70 | 0.6805 | 862.9 | 420.0 | |
| 2.55 | -37.00 | 1.72 | -37.00 | 10.54 | 357.25 | -39.43 | 66.96 | 0.6809 | 903.8 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 11.24 | 357.06 | -39.62 | 66.10 | 0.6865 | -469.0 | -359.3 | |
| 2.99 | -37.00 | 2.02 | -37.00 | 10.33 | 357.12 | -39.56 | 67.31 | 0.6815 | 885.7 | 999999 | |
| 16.79 | -37.00 | 11.40 | -37.00 | 10.33 | 356.68 | -40.00 | 67.54 | 0.6866 | 836.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.66 | 10.37 | 356.20 | -40.48 | 67.74 | 0.6924 | 319.0 | 215.8 | |
| 0.00 | 0.79 | 0.00 | 0.54 | 10.33 | 355.88 | -40.80 | 67.95 | 0.6959 | 393.0 | 289.0 | |
| 0.00 | 0.44 | 0.00 | 0.30 | 10.20 | 355.86 | -40.82 | 68.12 | 0.6956 | 410.0 | 395.0 | |
| 1.14 | 12.04 | 0.79 | 8.36 | 11.32 | 355.59 | -41.09 | 66.76 | 0.7036 | -506.2 | -470.4 | |
| 4.48 | -45.00 | 3.11 | -45.00 | 11.01 | 355.57 | -41.11 | 67.19 | 0.7026 | -827.3 | 999999 | |
| 0.00 | 1.67 | 0.00 | 1.20 | 12.47 | 354.06 | -42.63 | 66.03 | 0.7260 | 684.0 | 593.6 | |
| 0.53 | 1.67 | 0.38 | 1.20 | 12.22 | 353.69 | -42.99 | 66.54 | 0.7289 | 541.7 | 488.2 | |
| 0.00 | 1.05 | 0.00 | 0.76 | 11.72 | 353.66 | -43.02 | 67.19 | 0.7270 | 625.0 | 571.4 | |
| 0.44 | 1.58 | 0.32 | 1.15 | 12.00 | 353.31 | -43.37 | 67.00 | 0.7321 | 547.6 | 453.4 | |
| 0.00 | 1.14 | 0.00 | 0.84 | 12.78 | 352.93 | -43.75 | 66.18 | 0.7395 | 530.0 | 416.6 | |
| 0.00 | 1.14 | 0.00 | 0.85 | 13.62 | 352.35 | -44.33 | 65.41 | 0.7492 | 529.0 | 412.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
