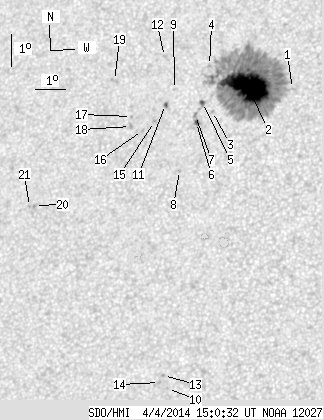

SDO HMI 2014-04-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 83.13 | 410.89 | 47.12 | 233.21 | 12.39 | 13.67 | -22.46 | 50.01 | 0.4893 | -810.0 | -351.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.69 | 12.37 | 15.38 | -20.75 | 47.80 | 0.4691 | -206.0 | -156.4 | |
| 79.88 | 378.57 | 45.26 | 214.61 | 12.50 | 13.88 | -22.25 | 49.58 | 0.4876 | -1276.3 | -405.3 | |
| 0.00 | 1.05 | 0.00 | 0.60 | 11.76 | 12.78 | -23.35 | 52.12 | 0.4936 | -593.0 | -378.6 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 13.23 | 12.54 | -23.59 | 50.08 | 0.5100 | -467.0 | -385.9 | |
| 1.05 | 3.69 | 0.60 | 2.11 | 12.06 | 12.42 | -23.71 | 52.06 | 0.5006 | -602.0 | -404.3 | |
| 1.32 | 3.08 | 0.75 | 1.75 | 11.44 | 12.28 | -23.85 | 53.24 | 0.4968 | -734.3 | -433.6 | |
| 0.00 | 2.55 | 0.00 | 1.46 | 11.66 | 12.22 | -23.91 | 52.94 | 0.4994 | -464.0 | -361.2 | |
| 0.00 | 1.14 | 0.00 | 0.65 | 9.96 | 11.83 | -24.30 | 56.23 | 0.4895 | 744.0 | 638.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 12.52 | 11.43 | -24.70 | 52.47 | 0.5164 | 391.0 | 327.6 | |
| 0.00 | 1.05 | 0.00 | 0.58 | 3.26 | 11.78 | -24.35 | 69.14 | 0.4424 | 747.0 | 610.8 | |
| 0.88 | 2.02 | 0.51 | 1.17 | 12.06 | 11.18 | -24.96 | 53.48 | 0.5155 | 856.8 | 675.2 | |
| 0.00 | 1.41 | 0.00 | 0.82 | 13.59 | 10.98 | -25.15 | 51.33 | 0.5313 | -728.0 | -563.2 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 3.66 | 11.64 | -24.49 | 68.42 | 0.4468 | 850.0 | 742.6 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 3.45 | 11.51 | -24.62 | 68.95 | 0.4474 | 840.0 | 680.6 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 11.54 | 10.85 | -25.28 | 54.66 | 0.5149 | 812.0 | 763.1 | |
| 0.00 | 1.49 | 0.00 | 0.86 | 11.28 | 10.47 | -25.66 | 55.49 | 0.5174 | 761.0 | 574.1 | |
| 0.00 | 0.70 | 0.00 | 0.41 | 11.74 | 10.05 | -26.08 | 55.19 | 0.5263 | 720.0 | 673.5 | |
| 0.00 | 2.37 | 0.00 | 1.38 | 11.42 | 10.05 | -26.08 | 55.69 | 0.5238 | 802.0 | 612.1 | |
| 0.00 | 2.90 | 0.00 | 1.71 | 12.91 | 9.34 | -26.79 | 54.09 | 0.5446 | 564.0 | 543.2 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 9.12 | 6.96 | -29.17 | 62.29 | 0.5458 | 788.0 | 600.0 | |
| 0.00 | 1.23 | 0.00 | 0.73 | 9.10 | 6.79 | -29.34 | 62.47 | 0.5478 | 743.0 | 578.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
