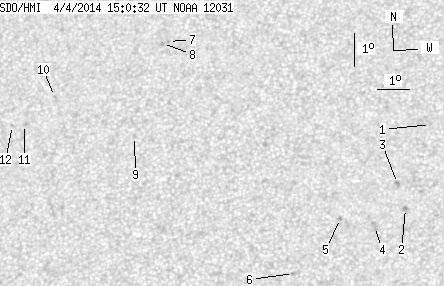

SDO HMI 2014-04-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.27 | 0.00 | 11.01 | 4.97 | 24.63 | -11.50 | 44.06 | 0.2808 | -29.6 | -180.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.58 | 6.09 | 29.80 | -6.33 | 27.08 | 0.2420 | -740.0 | -618.6 | |
| 0.00 | 2.11 | 0.00 | 1.07 | 3.53 | 29.06 | -7.07 | 35.74 | 0.2111 | -1068.0 | -903.5 | |
| 0.00 | 2.37 | 0.00 | 1.21 | 4.30 | 28.82 | -7.31 | 34.65 | 0.2243 | -873.0 | -744.5 | |
| 0.00 | 4.31 | 0.00 | 2.18 | 3.00 | 28.13 | -8.00 | 40.77 | 0.2138 | -386.0 | -583.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 3.26 | 27.10 | -9.04 | 43.47 | 0.2289 | -939.0 | -794.1 | |
| 0.00 | 1.58 | 0.00 | 0.80 | 1.62 | 25.68 | -10.46 | 53.01 | 0.2282 | -985.0 | -810.1 | |
| 0.00 | 1.14 | 0.00 | 0.61 | 8.82 | 21.67 | -14.46 | 43.70 | 0.3586 | 898.0 | 721.8 | |
| 0.00 | 1.67 | 0.00 | 0.89 | 8.77 | 21.49 | -14.64 | 44.18 | 0.3601 | 845.0 | 727.5 | |
| 0.00 | 1.76 | 0.00 | 0.92 | 5.92 | 20.71 | -15.42 | 51.76 | 0.3383 | 783.0 | 487.0 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 7.24 | 18.14 | -17.99 | 53.17 | 0.3844 | 637.0 | 528.1 | |
| 0.00 | 1.58 | 0.00 | 0.85 | 6.41 | 17.22 | -18.91 | 56.30 | 0.3888 | 796.0 | 649.7 | |
| 0.00 | 1.23 | 0.00 | 0.66 | 6.40 | 16.84 | -19.29 | 56.87 | 0.3938 | 677.0 | 558.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
