SDO HMI 2014-04-04 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.28 | 184.34 | 24.13 | 100.12 | 17.16 | 29.96 | -5.62 | 13.11 | 0.4119 | -293.3 | -354.6 | |
|
previous
or next observation for the same group /

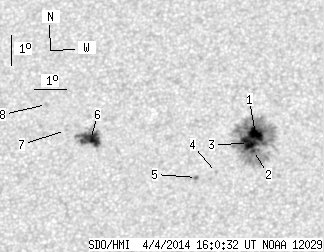

back to the solar disc SDO HMI 2014-04-04 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.06 | 151.13 | 7.63 | 81.89 | 17.31 | 30.95 | -4.63 | 10.87 | 0.4099 | -1173.2 | -461.7 | |
| 1.93 | -1.00 | 1.05 | -1.00 | 16.79 | 30.90 | -4.68 | 11.25 | 0.4018 | -1257.2 | 999999 | |
| 11.77 | -1.00 | 6.38 | -1.00 | 17.02 | 30.74 | -4.84 | 11.51 | 0.4059 | -1194.0 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 16.08 | 29.76 | -5.82 | 14.34 | 0.3949 | -743.0 | -633.6 | |
| 0.00 | 1.58 | 0.00 | 0.85 | 15.93 | 29.14 | -6.44 | 15.92 | 0.3951 | -988.0 | -867.6 | |
| 16.52 | 28.03 | 9.07 | 15.39 | 17.23 | 25.73 | -9.85 | 22.30 | 0.4323 | 1090.1 | 666.4 | |
| 0.00 | 0.70 | 0.00 | 0.39 | 17.54 | 24.92 | -10.66 | 23.64 | 0.4418 | 606.0 | 423.2 | |
| 0.00 | 1.76 | 0.00 | 0.98 | 18.41 | 24.25 | -11.33 | 24.09 | 0.4583 | 877.0 | 677.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
