SDO HMI 2014-04-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.92 | 186.36 | 25.54 | 101.14 | 17.19 | 29.91 | -5.12 | 11.96 | 0.4107 | -339.0 | -336.5 | |
|
previous
or next observation for the same group /

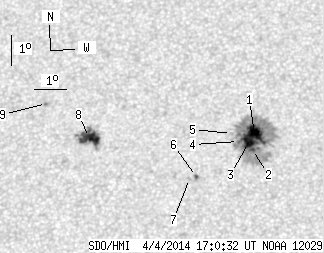

back to the solar disc SDO HMI 2014-04-04 17:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.90 | 149.98 | 8.63 | 81.23 | 17.33 | 30.94 | -4.09 | 9.64 | 0.4088 | -1154.5 | -454.5 | |
| 2.90 | -1.00 | 1.57 | -1.00 | 16.81 | 30.88 | -4.15 | 9.99 | 0.4007 | -1237.7 | 999999 | |
| 8.70 | -1.00 | 4.71 | -1.00 | 17.04 | 30.75 | -4.28 | 10.19 | 0.4047 | -1262.7 | 999999 | |
| 1.41 | -1.00 | 0.76 | -1.00 | 17.08 | 30.44 | -4.59 | 10.91 | 0.4061 | -904.1 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 17.34 | 30.21 | -4.82 | 11.30 | 0.4110 | -323.0 | -306.9 | |
| 0.70 | 1.85 | 0.38 | 0.99 | 15.95 | 29.15 | -5.88 | 14.58 | 0.3931 | -873.8 | -711.1 | |
| 0.00 | 1.49 | 0.00 | 0.80 | 15.89 | 28.93 | -6.10 | 15.13 | 0.3930 | -694.0 | -563.6 | |
| 17.31 | 30.05 | 9.49 | 16.47 | 17.28 | 25.72 | -9.31 | 21.15 | 0.4300 | 1046.0 | 689.5 | |
| 0.00 | 1.85 | 0.00 | 1.03 | 18.43 | 24.28 | -10.75 | 22.99 | 0.4550 | 823.0 | 601.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
