groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

12027 74.07 443.53 41.34 248.09 12.38 13.58 -20.35 47.19 0.4651 -673.6 -339.5


previous   or   next   observation for the same group / back to the solar disc

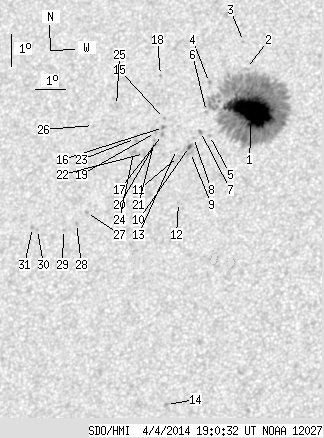

SDO HMI 2014-04-04 19:00:32 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 73.19 398.82 40.85 222.73 12.50 13.89 -20.04 46.59 0.4624 -1408.5 -422.6
2 0.00 2.02 0.00 1.14 13.88 13.60 -20.32 44.84 0.4800 -563.0 -363.3
3 0.00 1.05 0.00 0.60 14.75 13.42 -20.50 43.81 0.4913 633.0 518.7
4 0.00 1.49 0.00 0.85 13.48 12.42 -21.51 47.07 0.4889 -641.0 -454.1
5 0.00 1.05 0.00 0.59 11.80 12.57 -21.36 49.55 0.4704 -647.0 -459.2
6 0.00 1.49 0.00 0.84 12.56 12.40 -21.52 48.53 0.4798 -598.0 -441.8
7 0.00 1.85 0.00 1.04 11.94 12.26 -21.67 49.73 0.4754 -679.0 -443.3
8 0.00 0.79 0.00 0.44 11.76 12.04 -21.88 50.31 0.4762 -426.0 -290.2
9 0.00 2.72 0.00 1.53 11.29 11.98 -21.94 51.16 0.4724 -740.0 -497.2
10 0.88 2.20 0.49 1.23 11.48 11.93 -21.99 50.91 0.4748 -553.0 -458.1
11 0.00 1.05 0.00 0.59 11.18 11.59 -22.33 51.84 0.4760 185.0 160.0
12 0.00 0.79 0.00 0.44 9.74 11.70 -22.22 54.20 0.4615 615.0 533.3
13 0.00 1.05 0.00 0.59 11.40 11.51 -22.42 51.57 0.4791 513.0 360.8
14 0.00 1.76 0.00 0.96 3.53 11.60 -22.32 66.71 0.4145 858.0 633.7
15 0.00 0.79 0.00 0.45 12.40 11.02 -22.90 50.54 0.4943 852.0 726.0
16 0.00 1.49 0.00 0.85 12.12 11.02 -22.91 51.01 0.4917 1027.0 884.8
17 0.00 1.41 0.00 0.80 11.90 11.00 -22.92 51.38 0.4898 986.0 814.6
18 0.00 0.97 0.00 0.56 13.78 10.75 -23.17 48.73 0.5105 -760.0 -635.9
19 0.00 0.88 0.00 0.50 11.97 10.76 -23.16 51.55 0.4933 819.0 742.2
20 0.00 1.67 0.00 0.95 11.59 10.76 -23.16 52.17 0.4899 902.0 691.5
21 0.00 0.88 0.00 0.50 11.72 10.75 -23.17 51.97 0.4911 814.0 645.7
22 0.00 2.99 0.00 1.70 11.33 10.45 -23.47 52.98 0.4912 766.0 575.7
23 0.00 2.99 0.00 1.71 11.81 10.11 -23.82 52.58 0.4997 626.0 520.9
24 0.00 2.55 0.00 1.45 11.37 10.08 -23.84 53.33 0.4961 783.0 620.2
25 0.00 2.11 0.00 1.22 12.89 9.36 -24.56 51.73 0.5182 746.0 627.0
26 0.00 0.97 0.00 0.56 12.30 8.64 -25.28 53.46 0.5214 642.0 452.9
27 0.00 1.14 0.00 0.65 9.57 8.65 -25.27 57.93 0.4987 740.0 549.9
28 0.00 1.23 0.00 0.70 9.24 8.34 -25.58 58.81 0.5002 757.0 592.8
29 0.00 0.79 0.00 0.45 9.08 7.92 -26.01 59.52 0.5045 589.0 449.7
30 0.00 1.05 0.00 0.61 9.12 7.03 -26.89 60.29 0.5163 778.0 583.3
31 0.00 1.49 0.00 0.86 9.19 6.85 -27.07 60.33 0.5191 732.0 579.2


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
