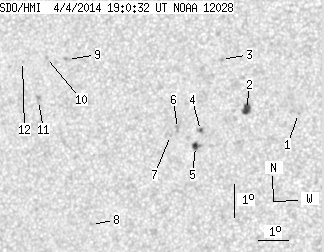

SDO HMI 2014-04-04 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.55 | 28.65 | 4.08 | 15.73 | -8.32 | 8.37 | -25.56 | 96.19 | 0.4311 | 438.6 | 224.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 19:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.05 | 0.00 | 0.56 | -8.53 | 12.74 | -21.19 | 97.27 | 0.3618 | 808.0 | 618.6 | |
| 4.74 | 7.29 | 2.55 | 3.92 | -8.34 | 11.05 | -22.87 | 96.45 | 0.3887 | 1023.1 | 722.6 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -6.81 | 10.32 | -23.61 | 92.49 | 0.3997 | 882.0 | 631.6 | |
| 0.53 | 2.11 | 0.29 | 1.15 | -8.90 | 9.49 | -24.44 | 97.59 | 0.4141 | 1075.7 | 856.5 | |
| 2.28 | 5.10 | 1.24 | 2.78 | -9.37 | 9.29 | -24.64 | 98.68 | 0.4179 | 933.7 | 702.4 | |
| 0.00 | 2.72 | 0.00 | 1.49 | -8.81 | 8.73 | -25.20 | 97.23 | 0.4259 | 779.0 | 646.8 | |
| 0.00 | 0.26 | 0.00 | 0.14 | -9.00 | 8.48 | -25.45 | 97.65 | 0.4300 | 819.0 | 773.3 | |
| 0.00 | 1.32 | 0.00 | 0.74 | -11.54 | 5.53 | -28.39 | 102.53 | 0.4792 | 722.0 | 616.0 | |
| 0.00 | 2.55 | 0.00 | 1.44 | -6.55 | 5.14 | -28.78 | 92.06 | 0.4806 | -864.0 | -680.0 | |
| 0.00 | 1.41 | 0.00 | 0.80 | -6.45 | 4.42 | -29.50 | 91.89 | 0.4916 | -792.0 | -549.1 | |
| 0.00 | 2.64 | 0.00 | 1.50 | -7.72 | 4.05 | -29.87 | 94.48 | 0.4970 | -649.0 | -559.6 | |
| 0.00 | 0.88 | 0.00 | 0.50 | -6.53 | 3.58 | -30.34 | 92.08 | 0.5042 | -684.0 | -518.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
