SDO HMI 2014-04-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 157.15 | 859.62 | 80.74 | 442.18 | -11.41 | 17.83 | -14.44 | 111.37 | 0.2625 | -166.8 | -193.0 | |
|
previous
or next observation for the same group /

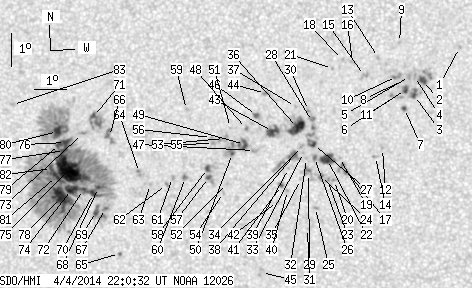

back to the solar disc SDO HMI 2014-04-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.32 | 0.00 | 0.66 | -8.12 | 27.87 | -4.40 | 112.45 | 0.0825 | 877.0 | 754.9 | |
| 3.25 | 11.51 | 1.62 | 5.73 | -9.10 | 26.73 | -5.54 | 117.02 | 0.1075 | 1199.3 | 861.3 | |
| 1.49 | 12.66 | 0.75 | 6.31 | -9.55 | 26.48 | -5.79 | 119.56 | 0.1149 | 1031.8 | 871.5 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -8.98 | 26.49 | -5.78 | 115.05 | 0.1103 | 1096.0 | 922.0 | |
| 0.00 | 2.72 | 0.00 | 1.36 | -8.97 | 26.33 | -5.93 | 114.49 | 0.1127 | 1045.0 | 884.5 | |
| 2.11 | -3.00 | 1.05 | -3.00 | -9.36 | 26.20 | -6.06 | 117.09 | 0.1176 | 1180.9 | 999999 | |
| 1.05 | 2.20 | 0.53 | 1.10 | -9.93 | 26.16 | -6.10 | 121.12 | 0.1229 | 982.0 | 809.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.09 | 26.12 | -6.15 | 114.67 | 0.1169 | 964.0 | 846.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -7.95 | 26.05 | -6.22 | 104.98 | 0.1116 | 900.0 | 730.7 | |
| 0.00 | 4.75 | 0.00 | 2.37 | -8.97 | 25.94 | -6.33 | 113.12 | 0.1190 | 1087.0 | 938.1 | |
| 0.00 | 4.75 | 0.00 | 2.37 | -9.57 | 25.89 | -6.37 | 117.49 | 0.1239 | 925.0 | 818.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -11.13 | 25.46 | -6.81 | 125.89 | 0.1442 | 882.0 | 655.7 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -8.39 | 25.40 | -6.87 | 107.17 | 0.1244 | 854.0 | 682.0 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -11.36 | 25.24 | -7.03 | 126.37 | 0.1496 | 732.0 | 670.4 | |
| 0.00 | 4.31 | 0.00 | 2.15 | -8.93 | 24.96 | -7.31 | 110.09 | 0.1344 | 904.0 | 779.9 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -8.50 | 24.60 | -7.66 | 106.32 | 0.1381 | 849.0 | 752.5 | |
| 0.44 | 8.70 | 0.22 | 4.37 | -11.62 | 24.21 | -8.05 | 124.13 | 0.1665 | 1176.2 | 474.6 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -8.44 | 24.30 | -7.97 | 105.32 | 0.1429 | 776.0 | 643.8 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.38 | 24.13 | -8.14 | 122.62 | 0.1655 | 752.0 | 607.1 | |
| 0.00 | 1.58 | 0.00 | 0.80 | -12.07 | 23.95 | -8.31 | 125.50 | 0.1745 | 748.0 | 682.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -8.70 | 23.99 | -8.28 | 106.54 | 0.1492 | 835.0 | 613.9 | |
| 9.32 | 13.18 | 4.68 | 6.63 | -11.43 | 23.76 | -8.51 | 121.78 | 0.1714 | 1184.7 | 832.0 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -12.03 | 23.74 | -8.53 | 124.67 | 0.1772 | 668.0 | 612.0 | |
| 0.00 | 2.02 | 0.00 | 1.02 | -11.94 | 23.52 | -8.74 | 123.58 | 0.1793 | 977.0 | 838.7 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -12.87 | 23.33 | -8.93 | 127.22 | 0.1909 | 689.0 | 666.5 | |
| 0.00 | 2.37 | 0.00 | 1.19 | -11.36 | 23.36 | -8.91 | 120.32 | 0.1767 | 1070.0 | 907.6 | |
| 1.85 | 12.30 | 0.93 | 6.19 | -10.97 | 23.34 | -8.93 | 118.29 | 0.1738 | 1189.7 | 874.6 | |
| 0.00 | 5.98 | 0.00 | 3.00 | -10.28 | 23.33 | -8.94 | 114.60 | 0.1689 | 1109.0 | 1003.7 | |
| 0.00 | 9.23 | 0.00 | 4.65 | -11.84 | 23.15 | -9.11 | 122.09 | 0.1838 | 637.0 | 509.3 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -9.95 | 23.21 | -9.05 | 112.51 | 0.1685 | 915.0 | 804.2 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -13.50 | 23.06 | -9.21 | 128.99 | 0.2011 | 743.0 | 600.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -11.39 | 23.11 | -9.16 | 119.79 | 0.1806 | 809.0 | 702.2 | |
| 0.00 | 1.05 | 0.00 | 0.53 | -11.21 | 23.02 | -9.25 | 118.67 | 0.1805 | 842.0 | 616.0 | |
| 0.00 | 1.85 | 0.00 | 0.93 | -11.02 | 22.97 | -9.30 | 117.63 | 0.1799 | 939.0 | 822.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.02 | 22.90 | -9.37 | 122.22 | 0.1890 | 32.0 | 97.3 | |
| 13.36 | 23.99 | 6.72 | 12.08 | -10.45 | 22.86 | -9.41 | 114.46 | 0.1774 | 1144.7 | 632.0 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.82 | 22.82 | -9.45 | 111.01 | 0.1741 | 733.0 | 510.8 | |
| 2.20 | 19.60 | 1.11 | 9.89 | -11.26 | 22.74 | -9.53 | 118.25 | 0.1851 | 953.5 | 513.1 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.68 | 22.54 | -9.73 | 119.75 | 0.1914 | -569.0 | -389.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.34 | 22.48 | -9.78 | 122.57 | 0.1979 | -841.0 | -642.2 | |
| 0.88 | 2.46 | 0.44 | 1.24 | -12.19 | 22.30 | -9.96 | 121.45 | 0.1992 | -924.2 | -709.6 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.67 | 22.16 | -10.11 | 123.14 | 0.2054 | -754.0 | -616.7 | |
| 6.50 | 13.80 | 3.28 | 6.96 | -10.56 | 22.08 | -10.18 | 113.39 | 0.1902 | 1044.2 | 780.7 | |
| 0.00 | 3.08 | 0.00 | 1.55 | -9.41 | 21.90 | -10.36 | 107.31 | 0.1867 | 974.0 | 752.5 | |
| 0.00 | 3.69 | 0.00 | 1.88 | -14.80 | 21.56 | -10.71 | 129.66 | 0.2344 | 356.0 | 637.8 | |
| 1.32 | 2.90 | 0.67 | 1.46 | -10.07 | 21.60 | -10.66 | 110.14 | 0.1949 | 939.3 | 798.3 | |
| 0.00 | 2.90 | 0.00 | 1.47 | -11.12 | 21.50 | -10.76 | 114.92 | 0.2030 | -745.0 | -631.0 | |
| 0.00 | 1.93 | 0.00 | 0.98 | -10.45 | 21.28 | -10.99 | 111.44 | 0.2023 | 990.0 | 833.3 | |
| 2.99 | 22.94 | 1.51 | 11.62 | -10.93 | 21.20 | -11.07 | 113.51 | 0.2065 | 1114.4 | 541.3 | |
| 0.70 | -49.00 | 0.36 | -49.00 | -11.19 | 20.82 | -11.45 | 113.99 | 0.2141 | 602.5 | 999999 | |
| 0.00 | 0.53 | 0.00 | 0.27 | -10.41 | 20.79 | -11.48 | 110.47 | 0.2099 | 600.0 | 443.5 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -12.09 | 20.62 | -11.65 | 117.41 | 0.2234 | -825.0 | -611.0 | |
| 0.00 | 5.36 | 0.00 | 2.72 | -10.73 | 20.59 | -11.68 | 111.62 | 0.2149 | 600.0 | 664.3 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -12.36 | 20.48 | -11.78 | 118.22 | 0.2274 | -838.0 | -659.9 | |
| 0.00 | 2.11 | 0.00 | 1.07 | -10.88 | 20.24 | -12.03 | 111.69 | 0.2213 | 626.0 | 535.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -10.69 | 20.18 | -12.08 | 110.83 | 0.2211 | 679.0 | 432.5 | |
| 1.23 | 5.98 | 0.63 | 3.04 | -11.89 | 20.03 | -12.23 | 115.57 | 0.2309 | -1012.9 | -772.6 | |
| 2.02 | 5.80 | 1.03 | 2.95 | -11.62 | 20.02 | -12.25 | 114.45 | 0.2294 | -1088.3 | -761.0 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -9.83 | 19.44 | -12.83 | 106.22 | 0.2289 | 676.0 | 557.9 | |
| 0.00 | 2.99 | 0.00 | 1.53 | -11.88 | 19.31 | -12.95 | 114.33 | 0.2418 | -1135.0 | -872.5 | |
| 0.00 | 1.76 | 0.00 | 0.90 | -11.87 | 18.90 | -13.36 | 113.68 | 0.2481 | -1004.0 | -837.1 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -12.07 | 18.71 | -13.56 | 114.16 | 0.2524 | -1087.0 | -723.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -12.06 | 18.20 | -14.07 | 113.40 | 0.2601 | -920.0 | -687.6 | |
| 0.00 | 2.99 | 0.00 | 1.53 | -11.69 | 17.87 | -14.39 | 111.64 | 0.2631 | -802.0 | -758.2 | |
| 0.35 | 1.49 | 0.18 | 0.77 | -14.11 | 17.09 | -15.18 | 118.68 | 0.2908 | 798.2 | 653.6 | |
| 0.00 | 8.70 | 0.00 | 4.48 | -10.58 | 16.98 | -15.28 | 106.69 | 0.2717 | -946.0 | -862.9 | |
| 0.62 | 566.35 | 0.32 | 294.02 | -12.74 | 16.73 | -15.54 | 113.83 | 0.2869 | -1113.0 | -458.2 | |
| 1.32 | -67.00 | 0.68 | -67.00 | -12.10 | 16.55 | -15.72 | 111.51 | 0.2860 | -1207.9 | 999999 | |
| 2.99 | -67.00 | 1.55 | -67.00 | -12.82 | 16.44 | -15.83 | 113.73 | 0.2918 | -1009.7 | 999999 | |
| 3.60 | -67.00 | 1.86 | -67.00 | -12.28 | 16.38 | -15.89 | 111.90 | 0.2896 | -1027.8 | 999999 | |
| 1.85 | 17.14 | 0.95 | 8.83 | -9.96 | 16.51 | -15.76 | 104.11 | 0.2770 | -944.1 | -882.5 | |
| 1.41 | -67.00 | 0.73 | -67.00 | -12.15 | 16.07 | -16.20 | 111.13 | 0.2937 | -1084.1 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -10.46 | 16.14 | -16.13 | 105.57 | 0.2849 | -1037.0 | -840.5 | |
| 8.53 | -67.00 | 4.42 | -67.00 | -12.13 | 15.68 | -16.58 | 110.70 | 0.2996 | -1211.6 | 999999 | |
| 38.23 | -67.00 | 19.83 | -67.00 | -11.53 | 15.63 | -16.64 | 108.70 | 0.2975 | -1379.6 | 999999 | |
| 3.52 | -67.00 | 1.82 | -67.00 | -10.72 | 15.58 | -16.69 | 105.99 | 0.2948 | -1188.3 | 999999 | |
| 1.93 | -67.00 | 1.00 | -67.00 | -10.95 | 15.53 | -16.73 | 106.74 | 0.2965 | -1272.1 | 999999 | |
| 25.31 | -67.00 | 13.16 | -67.00 | -12.37 | 15.35 | -16.92 | 111.08 | 0.3060 | -1040.3 | 999999 | |
| 2.55 | -67.00 | 1.32 | -67.00 | -10.77 | 15.39 | -16.88 | 106.01 | 0.2981 | -957.9 | 999999 | |
| 6.59 | -67.00 | 3.42 | -67.00 | -10.38 | 15.35 | -16.92 | 104.69 | 0.2973 | -1089.2 | 999999 | |
| 4.83 | -67.00 | 2.51 | -67.00 | -11.73 | 15.23 | -17.04 | 108.97 | 0.3047 | -1005.4 | 999999 | |
| 2.81 | -67.00 | 1.46 | -67.00 | -11.48 | 15.09 | -17.18 | 108.06 | 0.3058 | -819.6 | 999999 | |
| 0.00 | 1.93 | 0.00 | 1.01 | -9.52 | 13.96 | -18.31 | 101.12 | 0.3172 | -915.0 | -577.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
