SDO HMI 2014-04-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.81 | 33.15 | 3.11 | 17.88 | -8.74 | 8.81 | -23.46 | 97.29 | 0.3986 | 549.0 | 455.7 | |
|
previous
or next observation for the same group /

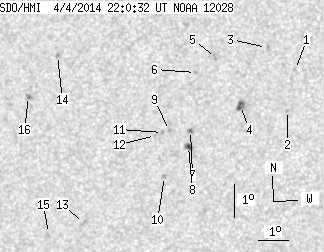

back to the solar disc SDO HMI 2014-04-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.60 | -7.26 | 12.95 | -19.31 | 93.87 | 0.3303 | 74.0 | 112.2 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -8.48 | 12.63 | -19.63 | 97.48 | 0.3366 | 860.0 | 708.5 | |
| 0.00 | 0.53 | 0.00 | 0.28 | -6.57 | 12.05 | -20.21 | 91.78 | 0.3449 | 555.0 | 594.2 | |
| 2.64 | 5.98 | 1.40 | 3.17 | -8.27 | 11.13 | -21.14 | 96.55 | 0.3608 | 1004.7 | 819.6 | |
| 0.00 | 2.29 | 0.00 | 1.22 | -6.80 | 10.39 | -21.88 | 92.45 | 0.3719 | 764.0 | 655.0 | |
| 0.00 | 1.41 | 0.00 | 0.75 | -7.22 | 9.72 | -22.55 | 93.56 | 0.3828 | 844.0 | 661.4 | |
| 0.62 | 1.76 | 0.33 | 0.94 | -8.95 | 9.45 | -22.82 | 98.03 | 0.3886 | 1004.6 | 867.8 | |
| 2.20 | 4.75 | 1.18 | 2.55 | -9.43 | 9.35 | -22.92 | 99.23 | 0.3909 | 1038.0 | 701.0 | |
| 0.00 | 1.32 | 0.00 | 0.71 | -8.92 | 8.76 | -23.51 | 97.80 | 0.3995 | 1009.0 | 786.8 | |
| 0.00 | 1.67 | 0.00 | 0.90 | -10.29 | 8.49 | -23.78 | 101.13 | 0.4061 | 716.0 | 572.8 | |
| 0.00 | 1.76 | 0.00 | 0.95 | -8.97 | 8.52 | -23.75 | 97.88 | 0.4033 | 854.0 | 642.2 | |
| 0.00 | 1.49 | 0.00 | 0.81 | -9.05 | 8.28 | -23.99 | 98.03 | 0.4071 | 669.0 | 498.5 | |
| 0.00 | 2.64 | 0.00 | 1.46 | -11.57 | 5.63 | -26.64 | 103.15 | 0.4529 | 629.0 | 568.8 | |
| 0.00 | 1.49 | 0.00 | 0.83 | -6.49 | 5.16 | -27.11 | 91.86 | 0.4548 | -973.0 | -761.1 | |
| 0.00 | 1.14 | 0.00 | 0.64 | -11.81 | 4.40 | -27.87 | 103.26 | 0.4720 | 562.0 | 497.5 | |
| 0.35 | 2.46 | 0.20 | 1.38 | -7.67 | 4.09 | -28.17 | 94.42 | 0.4713 | -947.8 | -707.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
