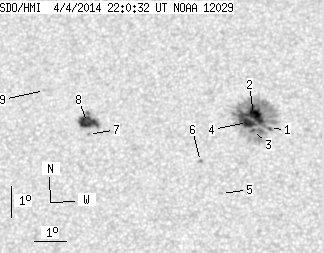

SDO HMI 2014-04-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.90 | 158.99 | 25.97 | 86.13 | 17.34 | 30.00 | -2.27 | 5.33 | 0.4062 | -391.8 | -323.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-04 22:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.70 | 131.13 | 0.38 | 70.98 | 17.05 | 31.38 | -0.88 | 2.13 | 0.3990 | -796.6 | -434.3 | |
| 21.62 | -1.00 | 11.71 | -1.00 | 17.51 | 30.88 | -1.39 | 3.27 | 0.4068 | -1036.1 | 999999 | |
| 0.88 | -1.00 | 0.47 | -1.00 | 16.99 | 30.85 | -1.42 | 3.42 | 0.3984 | -1180.0 | 999999 | |
| 10.55 | -1.00 | 5.70 | -1.00 | 17.25 | 30.69 | -1.58 | 3.75 | 0.4028 | -1169.8 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.70 | 14.95 | 29.90 | -2.37 | 6.27 | 0.3668 | 412.0 | 204.4 | |
| 0.00 | 1.76 | 0.00 | 0.94 | 15.99 | 29.23 | -3.03 | 7.63 | 0.3849 | -818.0 | -682.0 | |
| 0.00 | 1.14 | 0.00 | 0.62 | 16.91 | 25.70 | -6.57 | 15.52 | 0.4107 | 896.0 | 786.5 | |
| 14.15 | 22.85 | 7.71 | 12.45 | 17.30 | 25.65 | -6.61 | 15.36 | 0.4169 | 1040.7 | 676.5 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 18.38 | 24.24 | -8.02 | 17.62 | 0.4395 | 594.0 | 527.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
