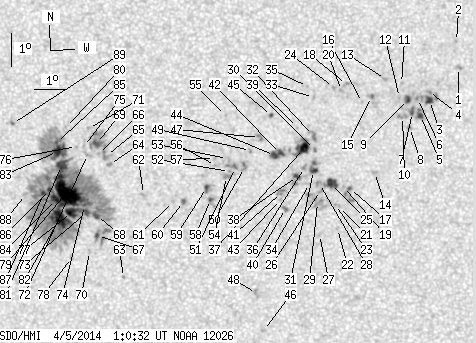

SDO HMI 2014-04-05 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 146.94 | 799.88 | 75.09 | 408.70 | -11.38 | 17.76 | -12.85 | 113.89 | 0.2379 | -179.8 | -190.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 01:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.64 | 0.00 | 1.31 | -8.04 | 27.78 | -2.83 | 121.40 | 0.0575 | 942.0 | 698.1 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -7.26 | 27.73 | -2.88 | 108.00 | 0.0527 | 794.0 | 684.8 | |
| 3.43 | 11.61 | 1.70 | 5.77 | -9.02 | 26.89 | -3.72 | 126.31 | 0.0798 | 1133.6 | 807.3 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -8.75 | 26.87 | -3.74 | 123.26 | 0.0776 | 985.0 | 817.1 | |
| 1.93 | 12.93 | 0.96 | 6.43 | -9.47 | 26.62 | -4.00 | 128.61 | 0.0884 | 1016.1 | 867.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -8.96 | 26.53 | -4.08 | 123.19 | 0.0844 | 1115.0 | 936.2 | |
| 1.32 | -5.00 | 0.66 | -5.00 | -9.37 | 26.37 | -4.24 | 126.17 | 0.0908 | 1217.1 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -9.82 | 26.28 | -4.34 | 129.38 | 0.0968 | 939.0 | 771.1 | |
| 2.29 | 6.24 | 1.14 | 3.10 | -8.98 | 26.23 | -4.39 | 121.62 | 0.0891 | 1169.1 | 858.4 | |
| 0.00 | 4.66 | 0.00 | 2.32 | -9.49 | 26.07 | -4.55 | 125.33 | 0.0963 | 900.0 | 786.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.50 | 26.05 | -4.56 | 115.86 | 0.0878 | 830.0 | 603.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -8.92 | 25.98 | -4.63 | 119.69 | 0.0922 | 610.0 | 532.4 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -8.38 | 25.56 | -5.05 | 112.49 | 0.0946 | 863.0 | 676.5 | |
| 0.00 | 2.20 | 0.00 | 1.10 | -11.16 | 25.18 | -5.43 | 132.37 | 0.1263 | 849.0 | 689.2 | |
| 0.00 | 3.17 | 0.00 | 1.58 | -8.88 | 25.13 | -5.48 | 115.45 | 0.1050 | 1205.0 | 931.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.06 | 24.85 | -5.76 | 115.87 | 0.1106 | 624.0 | 558.4 | |
| 0.62 | 8.88 | 0.31 | 4.45 | -11.64 | 24.40 | -6.21 | 131.29 | 0.1416 | 995.1 | 377.5 | |
| 0.00 | 2.90 | 0.00 | 1.45 | -8.51 | 24.38 | -6.24 | 109.77 | 0.1147 | 833.0 | 715.1 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.57 | 24.22 | -6.39 | 130.14 | 0.1433 | 882.0 | 766.2 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -8.69 | 24.22 | -6.39 | 110.78 | 0.1183 | 903.0 | 703.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -12.17 | 24.05 | -6.56 | 132.52 | 0.1523 | 721.0 | 576.0 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -12.84 | 24.00 | -6.61 | 135.43 | 0.1607 | 774.0 | 538.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -12.11 | 23.96 | -6.65 | 131.83 | 0.1527 | 842.0 | 696.0 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -8.60 | 23.98 | -6.63 | 109.38 | 0.1217 | 917.0 | 758.9 | |
| 6.68 | 9.76 | 3.35 | 4.89 | -11.48 | 23.85 | -6.76 | 128.09 | 0.1472 | 1199.0 | 841.1 | |
| 0.00 | 2.29 | 0.00 | 1.15 | -11.68 | 23.51 | -7.10 | 127.84 | 0.1541 | 753.0 | 728.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -13.01 | 23.44 | -7.17 | 133.90 | 0.1696 | 812.0 | 563.1 | |
| 0.00 | 2.64 | 0.00 | 1.32 | -11.47 | 23.48 | -7.13 | 126.62 | 0.1523 | 900.0 | 795.1 | |
| 0.00 | 13.10 | 0.00 | 6.57 | -12.04 | 23.40 | -7.21 | 129.28 | 0.1592 | 231.0 | 374.8 | |
| 0.00 | 1.93 | 0.00 | 0.97 | -10.45 | 23.35 | -7.26 | 120.31 | 0.1446 | 1037.0 | 856.7 | |
| 2.73 | 8.09 | 1.37 | 4.05 | -11.08 | 23.31 | -7.30 | 123.82 | 0.1509 | 1091.3 | 905.8 | |
| 0.00 | 5.80 | 0.00 | 2.90 | -10.03 | 23.33 | -7.28 | 117.63 | 0.1414 | 1116.0 | 913.4 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -8.89 | 23.36 | -7.25 | 110.01 | 0.1333 | 982.0 | 688.0 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -11.47 | 23.17 | -7.44 | 125.47 | 0.1565 | 669.0 | 708.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -8.55 | 23.18 | -7.43 | 107.23 | 0.1345 | 807.0 | 631.6 | |
| 0.00 | 2.81 | 0.00 | 1.41 | -10.99 | 23.03 | -7.58 | 122.36 | 0.1540 | 867.0 | 700.2 | |
| 7.74 | 23.21 | 3.88 | 11.63 | -10.41 | 23.02 | -7.59 | 119.01 | 0.1493 | 1213.2 | 775.7 | |
| 2.02 | 9.06 | 1.01 | 4.54 | -11.25 | 22.81 | -7.80 | 123.08 | 0.1596 | 967.7 | 660.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.78 | 22.85 | -7.76 | 114.65 | 0.1471 | 495.0 | 247.0 | |
| 0.00 | 2.99 | 0.00 | 1.50 | -12.21 | 22.41 | -8.20 | 126.58 | 0.1744 | -995.0 | -822.6 | |
| 0.00 | 4.40 | 0.00 | 2.21 | -11.73 | 22.30 | -8.31 | 123.90 | 0.1713 | 629.0 | 689.4 | |
| 2.37 | 11.43 | 1.19 | 5.74 | -10.55 | 22.31 | -8.31 | 117.74 | 0.1612 | 1094.2 | 795.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -11.94 | 22.26 | -8.35 | 124.81 | 0.1738 | 249.0 | 154.4 | |
| 3.43 | -42.00 | 1.72 | -42.00 | -10.61 | 22.12 | -8.49 | 117.55 | 0.1645 | 970.8 | 999999 | |
| 0.62 | 1.76 | 0.31 | 0.88 | -9.41 | 22.06 | -8.55 | 110.48 | 0.1573 | 958.1 | 802.9 | |
| 0.00 | 1.93 | 0.00 | 0.98 | -15.89 | 21.58 | -9.03 | 137.92 | 0.2264 | 630.0 | 432.5 | |
| 0.00 | 3.43 | 0.00 | 1.72 | -10.06 | 21.67 | -8.94 | 113.43 | 0.1675 | 801.0 | 805.1 | |
| 0.00 | 3.87 | 0.00 | 1.96 | -14.76 | 21.41 | -9.20 | 133.72 | 0.2150 | 738.0 | 654.3 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -10.45 | 21.38 | -9.23 | 114.87 | 0.1746 | 1052.0 | 869.2 | |
| 0.00 | 4.31 | 0.00 | 2.17 | -10.95 | 21.18 | -9.43 | 117.01 | 0.1814 | 927.0 | 767.2 | |
| 0.00 | 2.20 | 0.00 | 1.11 | -10.95 | 20.90 | -9.71 | 116.34 | 0.1856 | 1041.0 | 871.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -11.06 | 20.71 | -9.90 | 116.49 | 0.1894 | 439.0 | 391.9 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -10.67 | 20.66 | -9.95 | 114.47 | 0.1874 | 701.0 | 627.8 | |
| 0.00 | 4.22 | 0.00 | 2.13 | -11.21 | 20.61 | -10.00 | 116.98 | 0.1920 | -99.0 | 3.0 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -9.38 | 20.64 | -9.97 | 107.78 | 0.1802 | 683.0 | 549.0 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.88 | 20.29 | -10.33 | 114.69 | 0.1946 | 650.0 | 491.7 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -10.66 | 20.26 | -10.35 | 113.63 | 0.1936 | 608.0 | 344.6 | |
| 0.88 | 4.57 | 0.44 | 2.31 | -11.90 | 20.09 | -10.52 | 118.92 | 0.2051 | -1100.2 | -780.7 | |
| 1.23 | 6.42 | 0.62 | 3.25 | -11.53 | 19.98 | -10.63 | 117.08 | 0.2040 | -1088.1 | -775.4 | |
| 0.79 | 2.20 | 0.40 | 1.12 | -11.94 | 19.25 | -11.37 | 117.35 | 0.2181 | -1038.6 | -846.7 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -11.93 | 18.93 | -11.68 | 116.73 | 0.2227 | -835.0 | -659.0 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -11.70 | 18.00 | -12.61 | 114.20 | 0.2354 | -829.0 | -679.5 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -14.18 | 17.24 | -13.37 | 121.88 | 0.2653 | 786.0 | 680.1 | |
| 0.00 | 2.29 | 0.00 | 1.17 | -10.77 | 16.98 | -13.63 | 109.14 | 0.2462 | -1094.0 | -873.9 | |
| 0.00 | 5.72 | 0.00 | 2.92 | -10.49 | 16.90 | -13.71 | 107.98 | 0.2461 | -639.0 | -813.8 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -10.43 | 16.65 | -13.96 | 107.45 | 0.2498 | -972.0 | -816.7 | |
| 1.32 | 19.43 | 0.68 | 9.98 | -12.89 | 16.49 | -14.12 | 116.29 | 0.2665 | -1018.5 | -728.7 | |
| 2.64 | 511.57 | 1.35 | 263.49 | -12.29 | 16.49 | -14.12 | 114.18 | 0.2624 | -1068.9 | -445.6 | |
| 2.73 | 18.64 | 1.39 | 9.53 | -10.13 | 16.60 | -14.01 | 106.22 | 0.2493 | -1227.9 | -724.5 | |
| 0.00 | 1.58 | 0.00 | 0.81 | -13.37 | 16.21 | -14.41 | 117.47 | 0.2740 | -719.0 | -523.7 | |
| 0.00 | 1.93 | 0.00 | 0.99 | -9.67 | 16.37 | -14.24 | 104.23 | 0.2513 | -795.0 | -656.2 | |
| 0.00 | 3.43 | 0.00 | 1.76 | -10.45 | 16.31 | -14.31 | 107.17 | 0.2555 | -852.0 | -741.7 | |
| 2.73 | -68.00 | 1.40 | -68.00 | -12.19 | 16.18 | -14.43 | 113.41 | 0.2666 | -1038.9 | 999999 | |
| 0.88 | -68.00 | 0.45 | -68.00 | -11.98 | 16.13 | -14.48 | 112.59 | 0.2661 | -1024.1 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -10.20 | 16.19 | -14.42 | 106.13 | 0.2563 | -728.0 | -584.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | -10.20 | 15.97 | -14.64 | 105.91 | 0.2598 | -768.0 | -607.9 | |
| 8.88 | -68.00 | 4.57 | -68.00 | -12.18 | 15.71 | -14.90 | 112.75 | 0.2739 | -1161.6 | 999999 | |
| 0.00 | 2.81 | 0.00 | 1.45 | -13.53 | 15.62 | -14.99 | 117.15 | 0.2839 | -679.0 | -517.3 | |
| 43.35 | -68.00 | 22.31 | -68.00 | -11.57 | 15.58 | -15.03 | 110.50 | 0.2724 | -1317.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.62 | 15.65 | -14.96 | 103.47 | 0.2629 | -643.0 | -519.2 | |
| 8.00 | -68.00 | 4.12 | -68.00 | -10.75 | 15.47 | -15.14 | 107.48 | 0.2703 | -1143.7 | 999999 | |
| 22.77 | -68.00 | 11.75 | -68.00 | -12.35 | 15.32 | -15.30 | 112.84 | 0.2809 | -1038.9 | 999999 | |
| 5.80 | -68.00 | 2.98 | -68.00 | -10.33 | 15.37 | -15.25 | 105.86 | 0.2702 | -1104.9 | 999999 | |
| 6.16 | -68.00 | 3.17 | -68.00 | -11.77 | 15.25 | -15.36 | 110.83 | 0.2786 | -972.0 | 999999 | |
| 0.26 | -68.00 | 0.14 | -68.00 | -10.06 | 15.35 | -15.26 | 104.86 | 0.2694 | -831.0 | 999999 | |
| 1.85 | -68.00 | 0.95 | -68.00 | -11.46 | 15.05 | -15.56 | 109.55 | 0.2803 | -792.9 | 999999 | |
| 1.49 | -68.00 | 0.77 | -68.00 | -11.58 | 14.85 | -15.76 | 109.74 | 0.2839 | -755.9 | 999999 | |
| 0.00 | 2.55 | 0.00 | 1.32 | -11.59 | 14.28 | -16.33 | 109.21 | 0.2930 | -63.0 | -45.6 | |
| 0.00 | 1.49 | 0.00 | 0.77 | -9.45 | 13.99 | -16.63 | 101.77 | 0.2896 | -781.0 | -668.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
