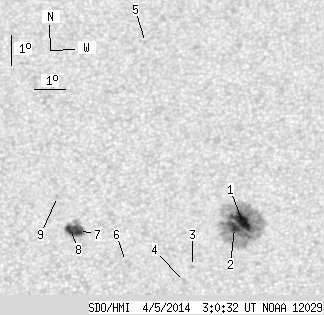

SDO HMI 2014-04-05 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 35.61 | 174.25 | 19.31 | 94.41 | 17.53 | 30.09 | 0.57 | 358.64 | 0.4073 | -247.2 | -385.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 03:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.74 | 146.62 | 8.54 | 79.42 | 17.60 | 30.92 | 1.40 | 356.71 | 0.4080 | -1118.6 | -474.6 | |
| 6.68 | -1.00 | 3.62 | -1.00 | 17.41 | 30.66 | 1.15 | 357.27 | 0.4046 | -1231.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.52 | 16.13 | 29.34 | -0.17 | 0.43 | 0.3837 | -726.0 | -555.7 | |
| 0.00 | 1.94 | 0.00 | 1.03 | 15.65 | 29.09 | -0.42 | 1.08 | 0.3759 | -690.0 | -611.5 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 23.64 | 27.80 | -1.71 | 3.13 | 0.5022 | 625.0 | 568.1 | |
| 0.00 | 0.79 | 0.00 | 0.43 | 16.30 | 27.25 | -2.26 | 5.63 | 0.3882 | 682.0 | 484.9 | |
| 6.86 | 21.55 | 3.72 | 11.69 | 17.33 | 25.76 | -3.75 | 8.86 | 0.4075 | 1025.2 | 664.1 | |
| 6.33 | -7.00 | 3.43 | -7.00 | 17.36 | 25.51 | -4.01 | 9.43 | 0.4087 | 1060.6 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.77 | 18.45 | 25.07 | -4.44 | 9.95 | 0.4270 | 658.0 | 501.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
