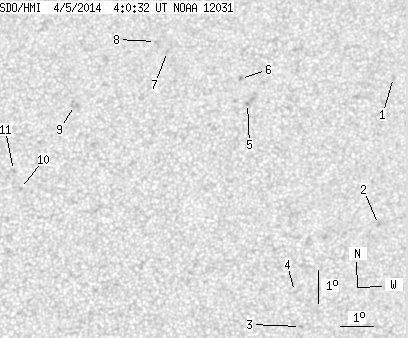

SDO HMI 2014-04-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.92 | 0.00 | 9.71 | 6.29 | 21.99 | -6.98 | 27.36 | 0.2570 | 210.5 | 318.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 04:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.58 | 0.00 | 0.81 | 8.07 | 28.70 | -0.27 | 1.06 | 0.2497 | -800.0 | -578.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | 3.56 | 28.24 | -0.72 | 4.19 | 0.1729 | -873.0 | -705.0 | |
| 0.00 | 1.23 | 0.00 | 0.62 | 0.48 | 25.90 | -3.06 | 24.31 | 0.1304 | -970.0 | -803.3 | |
| 0.00 | 0.44 | 0.00 | 0.22 | 1.54 | 25.72 | -3.24 | 22.49 | 0.1485 | -638.0 | -528.0 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 7.30 | 24.28 | -4.69 | 19.02 | 0.2497 | 956.0 | 762.6 | |
| 0.00 | 1.41 | 0.00 | 0.72 | 8.07 | 24.06 | -4.91 | 18.85 | 0.2634 | 1004.0 | 839.8 | |
| 0.00 | 1.67 | 0.00 | 0.87 | 8.94 | 21.82 | -7.15 | 25.10 | 0.2910 | 813.0 | 700.3 | |
| 0.00 | 0.44 | 0.00 | 0.23 | 9.25 | 21.44 | -7.52 | 25.77 | 0.2984 | 611.0 | 422.8 | |
| 0.00 | 5.37 | 0.00 | 2.78 | 7.32 | 19.00 | -9.96 | 36.24 | 0.2916 | 469.0 | 597.6 | |
| 0.00 | 1.67 | 0.00 | 0.86 | 4.80 | 17.39 | -11.57 | 46.35 | 0.2775 | 895.0 | 740.1 | |
| 0.00 | 1.94 | 0.00 | 1.00 | 5.36 | 17.17 | -11.80 | 45.48 | 0.2867 | 849.0 | 640.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
