SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.99 | 713.37 | 71.70 | 360.74 | -11.35 | 17.47 | -9.85 | 121.95 | 0.1936 | -140.4 | -238.0 | |
|
previous
or next observation for the same group /

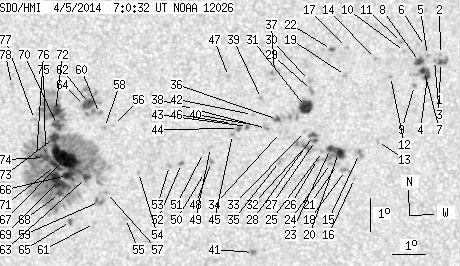

back to the solar disc SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.32 | 5.72 | 0.65 | 2.84 | -8.94 | 27.22 | -0.10 | 177.75 | 0.0463 | 1208.9 | 888.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.70 | 27.22 | -0.10 | 177.53 | 0.0421 | 916.0 | 770.7 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -8.88 | 27.03 | -0.29 | 173.73 | 0.0455 | 1024.0 | 871.2 | |
| 2.82 | 19.44 | 1.40 | 9.64 | -9.33 | 26.82 | -0.50 | 170.73 | 0.0538 | 1023.8 | 872.5 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -8.73 | 26.82 | -0.50 | 168.52 | 0.0434 | 1060.0 | 883.8 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -8.46 | 26.76 | -0.56 | 165.63 | 0.0390 | 833.0 | 715.3 | |
| 3.61 | -4.00 | 1.79 | -4.00 | -9.21 | 26.73 | -0.59 | 168.65 | 0.0520 | 1228.0 | 999999 | |
| 3.61 | -4.00 | 1.79 | -4.00 | -8.91 | 26.58 | -0.74 | 164.29 | 0.0475 | 1312.3 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -9.63 | 26.42 | -0.90 | 165.12 | 0.0603 | 1069.0 | 865.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -8.61 | 26.12 | -1.20 | 152.85 | 0.0454 | 947.0 | 784.4 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -8.34 | 26.04 | -1.29 | 148.01 | 0.0421 | 1001.0 | 805.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.36 | 25.70 | -1.63 | 152.31 | 0.0605 | 1031.0 | 897.6 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -11.31 | 25.29 | -2.04 | 158.26 | 0.0945 | 891.0 | 726.9 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -8.81 | 25.24 | -2.08 | 140.79 | 0.0569 | 940.0 | 800.0 | |
| 0.00 | 3.87 | 0.00 | 1.93 | -11.67 | 24.73 | -2.59 | 154.70 | 0.1040 | 1046.0 | 879.2 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.42 | 24.57 | -2.75 | 156.27 | 0.1171 | 922.0 | 660.1 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -8.48 | 24.37 | -2.95 | 126.79 | 0.0640 | 886.0 | 643.3 | |
| 0.00 | 4.22 | 0.00 | 2.11 | -12.18 | 24.30 | -3.03 | 153.28 | 0.1153 | 897.0 | 752.8 | |
| 0.00 | 2.55 | 0.00 | 1.27 | -9.32 | 24.33 | -2.99 | 135.68 | 0.0741 | 969.0 | 723.1 | |
| 7.83 | 20.32 | 3.90 | 10.13 | -11.63 | 24.09 | -3.23 | 149.31 | 0.1087 | 1214.1 | 851.8 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -11.99 | 24.05 | -3.27 | 150.69 | 0.1145 | 879.0 | 678.0 | |
| 0.79 | 2.20 | 0.39 | 1.09 | -8.54 | 23.91 | -3.41 | 123.65 | 0.0710 | 1096.2 | 873.9 | |
| 2.55 | -20.00 | 1.27 | -20.00 | -11.51 | 23.84 | -3.48 | 146.84 | 0.1092 | 1153.9 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -11.96 | 23.84 | -3.48 | 148.97 | 0.1159 | 924.0 | 714.7 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.60 | 23.60 | -3.72 | 145.49 | 0.1128 | 969.0 | 784.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.84 | 23.44 | -3.88 | 145.59 | 0.1178 | 739.0 | 658.5 | |
| 0.88 | 6.42 | 0.44 | 3.20 | -11.27 | 23.39 | -3.93 | 142.21 | 0.1103 | 1122.3 | 920.5 | |
| 1.67 | -27.00 | 0.83 | -27.00 | -11.11 | 23.33 | -3.99 | 140.93 | 0.1089 | 1245.7 | 999999 | |
| 0.00 | 3.52 | 0.00 | 1.75 | -9.76 | 23.29 | -4.03 | 131.16 | 0.0925 | 1089.0 | 861.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.46 | 23.23 | -4.09 | 128.20 | 0.0900 | 984.0 | 754.5 | |
| 11.79 | 20.85 | 5.87 | 10.38 | -10.24 | 23.10 | -4.22 | 133.58 | 0.1005 | 1199.4 | 777.0 | |
| 0.00 | 11.44 | 0.00 | 5.70 | -11.44 | 23.08 | -4.24 | 141.11 | 0.1160 | 1053.0 | 728.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.99 | 23.06 | -4.27 | 138.33 | 0.1104 | 917.0 | 724.0 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.01 | 22.32 | -5.00 | 133.97 | 0.1195 | 647.0 | 573.9 | |
| 0.00 | 2.99 | 0.00 | 1.49 | -11.89 | 22.27 | -5.05 | 138.61 | 0.1309 | 697.0 | 702.8 | |
| 1.58 | 8.89 | 0.79 | 4.43 | -10.62 | 22.23 | -5.09 | 131.00 | 0.1160 | 970.7 | 787.0 | |
| 0.00 | 4.22 | 0.00 | 2.10 | -9.21 | 22.17 | -5.15 | 119.98 | 0.1029 | 766.0 | 790.9 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -10.89 | 21.89 | -5.43 | 130.89 | 0.1235 | 929.0 | 737.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.99 | 21.76 | -5.56 | 124.14 | 0.1159 | 879.0 | 770.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.80 | 21.59 | -5.73 | 128.79 | 0.1265 | 772.0 | 489.5 | |
| 0.00 | 2.99 | 0.00 | 1.51 | -14.63 | 21.40 | -5.92 | 145.53 | 0.1771 | 1230.0 | 930.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.46 | 21.47 | -5.85 | 126.12 | 0.1246 | 1002.0 | 822.7 | |
| 0.53 | 1.67 | 0.26 | 0.84 | -10.82 | 21.31 | -6.01 | 127.67 | 0.1305 | 1103.5 | 911.3 | |
| 0.70 | 2.99 | 0.35 | 1.50 | -10.88 | 21.03 | -6.29 | 126.79 | 0.1349 | 948.8 | 743.2 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.06 | 20.84 | -6.48 | 127.05 | 0.1394 | 780.0 | 564.6 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.73 | 20.85 | -6.47 | 125.11 | 0.1359 | 963.0 | 782.5 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -9.31 | 20.76 | -6.56 | 115.27 | 0.1253 | 937.0 | 733.8 | |
| 0.00 | 1.94 | 0.00 | 0.97 | -11.86 | 20.18 | -7.14 | 128.75 | 0.1568 | -1102.0 | -943.1 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.44 | 20.16 | -7.16 | 126.48 | 0.1527 | -902.0 | -639.4 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -12.19 | 19.95 | -7.37 | 129.53 | 0.1633 | -838.0 | -580.9 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -11.59 | 19.94 | -7.38 | 126.45 | 0.1572 | -805.0 | -642.6 | |
| 0.00 | 1.94 | 0.00 | 0.97 | -11.91 | 19.25 | -8.07 | 125.70 | 0.1700 | -1189.0 | -936.1 | |
| 0.00 | 2.11 | 0.00 | 1.06 | -11.96 | 18.87 | -8.45 | 124.77 | 0.1757 | -907.0 | -794.6 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -12.15 | 17.91 | -9.42 | 122.89 | 0.1913 | 750.0 | 511.3 | |
| 0.00 | 1.94 | 0.00 | 0.98 | -13.53 | 17.44 | -9.88 | 127.40 | 0.2109 | -884.0 | -697.9 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -10.72 | 17.18 | -10.14 | 114.49 | 0.1910 | -855.0 | -681.9 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.74 | 16.88 | -10.44 | 122.80 | 0.2112 | -902.0 | -791.0 | |
| 0.00 | 1.85 | 0.00 | 0.93 | -10.78 | 16.90 | -10.42 | 114.19 | 0.1957 | -1164.0 | -910.6 | |
| 0.00 | 5.98 | 0.00 | 3.04 | -13.00 | 16.65 | -10.67 | 123.32 | 0.2168 | -880.0 | -892.6 | |
| 0.00 | 1.76 | 0.00 | 0.89 | -10.36 | 16.76 | -10.56 | 111.91 | 0.1952 | -1097.0 | -853.8 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -13.67 | 16.47 | -10.86 | 125.41 | 0.2255 | -1009.0 | -773.0 | |
| 5.37 | 28.77 | 2.71 | 14.54 | -10.05 | 16.46 | -10.86 | 109.93 | 0.1983 | -1225.7 | -813.7 | |
| 3.43 | 493.05 | 1.74 | 250.61 | -12.27 | 16.28 | -11.04 | 119.53 | 0.2161 | -984.1 | -476.4 | |
| 1.85 | -62.00 | 0.93 | -62.00 | -10.10 | 16.30 | -11.02 | 109.96 | 0.2011 | -1106.1 | 999999 | |
| 0.97 | 2.46 | 0.49 | 1.26 | -13.59 | 15.71 | -11.61 | 123.41 | 0.2353 | -879.9 | -690.6 | |
| 5.54 | -63.00 | 2.82 | -63.00 | -12.20 | 15.69 | -11.63 | 118.03 | 0.2243 | -1232.1 | 999999 | |
| 34.31 | -63.00 | 17.43 | -63.00 | -11.68 | 15.62 | -11.70 | 115.80 | 0.2217 | -1456.4 | 999999 | |
| 1.76 | -63.00 | 0.90 | -63.00 | -12.74 | 15.41 | -11.91 | 119.60 | 0.2326 | -848.7 | 999999 | |
| 15.66 | -63.00 | 7.97 | -63.00 | -12.37 | 15.37 | -11.95 | 118.11 | 0.2304 | -1127.0 | 999999 | |
| 5.28 | -63.00 | 2.68 | -63.00 | -10.69 | 15.44 | -11.88 | 111.27 | 0.2181 | -1197.7 | 999999 | |
| 5.98 | -63.00 | 3.04 | -63.00 | -11.89 | 15.33 | -11.99 | 116.12 | 0.2275 | -1074.8 | 999999 | |
| 9.06 | -63.00 | 4.60 | -63.00 | -10.23 | 15.40 | -11.92 | 109.23 | 0.2163 | -1131.3 | 999999 | |
| 5.89 | -63.00 | 2.99 | -63.00 | -11.05 | 15.33 | -11.99 | 112.64 | 0.2219 | -1134.1 | 999999 | |
| 4.84 | -63.00 | 2.46 | -63.00 | -11.64 | 15.02 | -12.30 | 114.60 | 0.2305 | -909.7 | 999999 | |
| 1.14 | -63.00 | 0.58 | -63.00 | -11.43 | 15.03 | -12.29 | 113.76 | 0.2290 | -771.2 | 999999 | |
| 1.23 | -63.00 | 0.63 | -63.00 | -11.60 | 14.74 | -12.58 | 114.00 | 0.2346 | -773.9 | 999999 | |
| 0.00 | 2.82 | 0.00 | 1.43 | -10.49 | 14.73 | -12.59 | 109.43 | 0.2283 | -178.0 | -112.5 | |
| 0.00 | 0.70 | 0.00 | 0.36 | -9.42 | 14.06 | -13.26 | 104.20 | 0.2345 | -811.0 | -711.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
