SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 38.97 | 159.34 | 21.14 | 86.45 | 17.54 | 30.20 | 2.87 | 353.28 | 0.4097 | -384.9 | -386.9 | |
|
previous
or next observation for the same group /

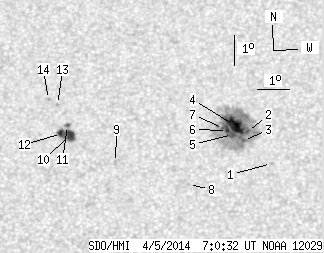

back to the solar disc SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.66 | 16.44 | 32.03 | 4.71 | 348.47 | 0.3959 | -775.0 | -586.1 | |
| 1.67 | 135.76 | 0.91 | 73.69 | 17.48 | 31.31 | 3.98 | 350.66 | 0.4102 | -856.1 | -464.6 | |
| 0.79 | -2.00 | 0.43 | -2.00 | 17.19 | 31.17 | 3.85 | 350.85 | 0.4052 | -996.2 | 999999 | |
| 17.51 | -2.00 | 9.51 | -2.00 | 17.68 | 30.90 | 3.58 | 351.67 | 0.4123 | -1194.9 | 999999 | |
| 4.31 | -2.00 | 2.34 | -2.00 | 17.38 | 30.83 | 3.51 | 351.72 | 0.4074 | -1335.4 | 999999 | |
| 1.32 | -2.00 | 0.72 | -2.00 | 17.51 | 30.68 | 3.35 | 352.13 | 0.4092 | -1345.6 | 999999 | |
| 0.26 | -2.00 | 0.14 | -2.00 | 17.58 | 30.55 | 3.23 | 352.44 | 0.4099 | -1087.3 | 999999 | |
| 0.00 | 0.70 | 0.00 | 0.38 | 15.75 | 29.43 | 2.11 | 354.62 | 0.3786 | -778.0 | -654.6 | |
| 0.00 | 1.76 | 0.00 | 0.95 | 16.46 | 27.15 | -0.17 | 0.42 | 0.3886 | 701.0 | 528.0 | |
| 8.09 | 15.75 | 4.38 | 8.52 | 17.34 | 25.71 | -1.62 | 3.84 | 0.4037 | 1068.1 | 783.5 | |
| 0.97 | 1.94 | 0.52 | 1.05 | 17.67 | 25.64 | -1.68 | 3.94 | 0.4090 | 681.3 | 534.2 | |
| 4.05 | -10.00 | 2.19 | -10.00 | 17.41 | 25.45 | -1.87 | 4.42 | 0.4050 | 1064.2 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.53 | 18.37 | 25.32 | -2.00 | 4.55 | 0.4204 | 804.0 | 635.3 | |
| 0.00 | 1.23 | 0.00 | 0.67 | 18.53 | 25.03 | -2.29 | 5.15 | 0.4234 | 755.0 | 640.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
