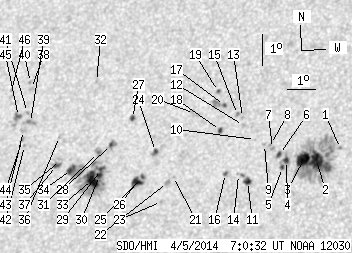

SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.42 | 313.85 | 44.10 | 183.88 | 10.70 | 359.94 | -27.38 | 57.87 | 0.5337 | -116.2 | -103.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.69 | 10.73 | 4.97 | -22.35 | 52.69 | 0.4718 | -809.0 | -619.5 | |
| 14.52 | 120.27 | 8.18 | 67.78 | 10.39 | 4.20 | -23.12 | 54.21 | 0.4782 | -1103.0 | -488.8 | |
| 12.41 | -2.00 | 7.01 | -2.00 | 10.44 | 3.76 | -23.56 | 54.63 | 0.4840 | -1003.3 | 999999 | |
| 2.29 | 10.03 | 1.30 | 5.70 | 10.43 | 3.20 | -24.13 | 55.28 | 0.4910 | -1027.5 | -639.0 | |
| 1.06 | -4.00 | 0.60 | -4.00 | 10.22 | 3.08 | -24.24 | 55.77 | 0.4907 | -822.2 | 999999 | |
| 1.41 | 2.73 | 0.80 | 1.55 | 10.63 | 2.94 | -24.38 | 55.22 | 0.4959 | -839.7 | -631.9 | |
| 0.00 | 1.50 | 0.00 | 0.85 | 10.83 | 2.69 | -24.63 | 55.17 | 0.5007 | -807.0 | -612.7 | |
| 0.00 | 0.53 | 0.00 | 0.30 | 10.96 | 2.61 | -24.71 | 55.04 | 0.5027 | -762.0 | -650.0 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 10.97 | 2.41 | -24.91 | 55.24 | 0.5053 | -670.0 | -574.5 | |
| 0.00 | 0.26 | 0.00 | 0.15 | 11.15 | 2.09 | -25.23 | 55.30 | 0.5107 | -614.0 | -585.3 | |
| 2.90 | 6.07 | 1.66 | 3.48 | 9.84 | 1.93 | -25.39 | 57.65 | 0.5021 | -894.6 | -641.6 | |
| 0.00 | 1.76 | 0.00 | 1.02 | 11.61 | 1.64 | -25.68 | 55.03 | 0.5201 | -804.0 | -571.3 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 11.86 | 1.58 | -25.74 | 54.68 | 0.5230 | -715.0 | -557.8 | |
| 0.00 | 0.97 | 0.00 | 0.56 | 10.07 | 1.61 | -25.71 | 57.58 | 0.5080 | -309.0 | -369.9 | |
| 0.00 | 2.02 | 0.00 | 1.18 | 11.97 | 1.40 | -25.92 | 54.71 | 0.5260 | -847.0 | -637.4 | |
| 0.70 | 2.20 | 0.41 | 1.27 | 10.13 | 1.16 | -26.16 | 57.94 | 0.5141 | -754.2 | -563.5 | |
| 0.70 | 7.65 | 0.41 | 4.49 | 12.28 | 0.92 | -26.40 | 54.72 | 0.5343 | -821.0 | -598.3 | |
| 1.41 | 2.64 | 0.82 | 1.54 | 11.49 | 0.87 | -26.45 | 56.01 | 0.5286 | -770.5 | -613.9 | |
| 0.62 | 1.76 | 0.36 | 1.03 | 12.73 | 0.67 | -26.66 | 54.27 | 0.5412 | 871.4 | 703.1 | |
| 0.00 | 4.84 | 0.00 | 2.85 | 12.08 | 359.91 | -27.41 | 56.03 | 0.5449 | -455.0 | -526.2 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 10.13 | 359.38 | -27.94 | 59.63 | 0.5367 | 748.0 | 533.6 | |
| 0.00 | 2.73 | 0.00 | 1.60 | 9.95 | 359.19 | -28.13 | 60.09 | 0.5378 | 897.0 | 719.6 | |
| 0.00 | 1.58 | 0.00 | 0.93 | 9.37 | 359.04 | -28.28 | 61.18 | 0.5357 | 660.0 | 538.1 | |
| 1.41 | 3.52 | 0.83 | 2.09 | 10.95 | 358.68 | -28.64 | 58.95 | 0.5515 | 980.9 | 839.0 | |
| 0.97 | 11.35 | 0.57 | 6.73 | 10.16 | 358.30 | -29.02 | 60.53 | 0.5506 | 921.5 | 682.5 | |
| 5.98 | -25.00 | 3.55 | -25.00 | 10.01 | 358.11 | -29.21 | 60.93 | 0.5520 | 952.3 | 999999 | |
| 1.58 | 2.46 | 0.95 | 1.48 | 12.04 | 357.75 | -29.57 | 58.08 | 0.5709 | 775.2 | 643.1 | |
| 1.41 | 5.81 | 0.85 | 3.50 | 11.26 | 357.10 | -30.23 | 59.82 | 0.5733 | 714.1 | 460.1 | |
| 1.41 | 78.57 | 0.85 | 47.48 | 10.49 | 356.83 | -30.49 | 61.23 | 0.5714 | 910.1 | 253.9 | |
| 2.73 | -29.00 | 1.64 | -29.00 | 10.31 | 356.78 | -30.55 | 61.55 | 0.5709 | 1095.2 | 999999 | |
| 0.44 | 5.02 | 0.27 | 3.04 | 11.03 | 356.66 | -30.66 | 60.52 | 0.5772 | 571.0 | 414.8 | |
| 0.00 | 1.32 | 0.00 | 0.81 | 13.30 | 356.30 | -31.02 | 57.45 | 0.5973 | -651.0 | -383.7 | |
| 13.11 | -29.00 | 7.91 | -29.00 | 10.20 | 356.54 | -30.78 | 61.91 | 0.5731 | 949.2 | 999999 | |
| 4.93 | -29.00 | 3.00 | -29.00 | 10.56 | 355.75 | -31.57 | 61.97 | 0.5853 | -1065.6 | 999999 | |
| 0.00 | 2.46 | 0.00 | 1.51 | 10.87 | 355.32 | -32.00 | 61.83 | 0.5926 | -501.0 | -418.1 | |
| 0.00 | 1.06 | 0.00 | 0.65 | 11.63 | 355.19 | -32.13 | 60.78 | 0.5992 | -443.0 | -386.0 | |
| 2.02 | 4.84 | 1.24 | 2.97 | 10.72 | 355.19 | -32.13 | 62.14 | 0.5933 | -783.1 | -576.3 | |
| 0.00 | 2.11 | 0.00 | 1.34 | 13.22 | 353.94 | -33.38 | 59.42 | 0.6245 | 728.0 | 657.8 | |
| 0.00 | 5.28 | 0.00 | 3.31 | 12.14 | 354.06 | -33.26 | 60.88 | 0.6161 | 980.0 | 794.6 | |
| 0.00 | 1.32 | 0.00 | 0.84 | 13.41 | 353.87 | -33.45 | 59.20 | 0.6265 | 640.0 | 562.2 | |
| 0.00 | 1.41 | 0.00 | 0.89 | 12.46 | 353.90 | -33.42 | 60.52 | 0.6200 | 820.0 | 732.6 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 11.42 | 353.94 | -33.38 | 62.01 | 0.6131 | 790.0 | 629.4 | |
| 0.00 | 2.38 | 0.00 | 1.49 | 11.90 | 353.84 | -33.49 | 61.38 | 0.6173 | 708.0 | 634.1 | |
| 0.00 | 1.67 | 0.00 | 1.05 | 11.62 | 353.84 | -33.48 | 61.79 | 0.6155 | 758.0 | 637.1 | |
| 1.41 | 7.30 | 0.89 | 4.62 | 12.36 | 353.59 | -33.74 | 60.91 | 0.6231 | 840.1 | 616.7 | |
| 0.00 | 1.06 | 0.00 | 0.67 | 13.20 | 353.20 | -34.13 | 59.99 | 0.6330 | 547.0 | 460.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
