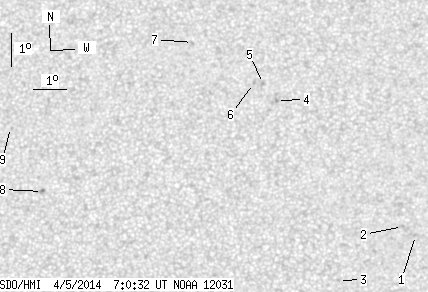

SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.95 | 0.00 | 6.09 | 6.05 | 23.66 | -3.66 | 312.84 | 0.2319 | 269.6 | 296.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 07:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.14 | 0.00 | 0.57 | 3.37 | 28.76 | 1.44 | 351.49 | 0.1706 | -877.0 | -668.5 | |
| 0.00 | 1.41 | 0.00 | 0.71 | 3.64 | 28.37 | 1.05 | 353.94 | 0.1745 | -810.0 | -693.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | 2.01 | 26.45 | -0.87 | 6.00 | 0.1459 | -817.0 | -531.2 | |
| 0.00 | 1.50 | 0.00 | 0.76 | 7.52 | 24.57 | -2.75 | 11.26 | 0.2445 | 985.0 | 840.9 | |
| 0.00 | 1.58 | 0.00 | 0.81 | 8.05 | 24.18 | -3.14 | 12.37 | 0.2547 | 913.0 | 667.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | 8.05 | 23.87 | -3.45 | 13.52 | 0.2559 | 750.0 | 527.1 | |
| 0.00 | 1.58 | 0.00 | 0.82 | 9.34 | 22.00 | -5.32 | 18.77 | 0.2855 | 707.0 | 580.4 | |
| 0.00 | 2.02 | 0.00 | 1.04 | 4.82 | 17.50 | -9.83 | 41.64 | 0.2571 | 981.0 | 852.8 | |
| 0.00 | 0.35 | 0.00 | 0.18 | 6.80 | 16.48 | -10.84 | 39.72 | 0.2936 | 594.0 | 598.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
