SDO HMI 2014-04-05 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.63 | 323.77 | 43.40 | 188.81 | 10.62 | 359.89 | -26.88 | 57.51 | 0.5270 | -53.5 | -96.6 | |
|
previous
or next observation for the same group /

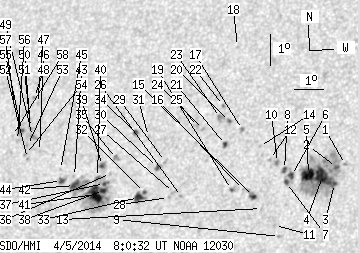

back to the solar disc SDO HMI 2014-04-05 08:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.79 | 10.71 | 4.98 | -21.79 | 52.03 | 0.4647 | -748.0 | -604.4 | |
| 1.14 | 117.46 | 0.64 | 65.91 | 10.63 | 4.69 | -22.08 | 52.53 | 0.4675 | -940.8 | -507.3 | |
| 0.97 | -2.00 | 0.54 | -2.00 | 10.13 | 4.66 | -22.11 | 53.44 | 0.4633 | -1113.7 | 999999 | |
| 15.84 | -2.00 | 8.88 | -2.00 | 10.36 | 4.25 | -22.53 | 53.54 | 0.4705 | -1122.0 | 999999 | |
| 11.09 | -2.00 | 6.24 | -2.00 | 10.45 | 3.78 | -23.00 | 53.96 | 0.4771 | -1036.3 | 999999 | |
| 1.94 | 13.81 | 1.09 | 7.82 | 10.44 | 3.21 | -23.56 | 54.63 | 0.4840 | -1028.8 | -593.6 | |
| 1.41 | -6.00 | 0.80 | -6.00 | 10.23 | 3.06 | -23.71 | 55.17 | 0.4841 | -815.1 | 999999 | |
| 1.58 | -6.00 | 0.90 | -6.00 | 10.64 | 2.96 | -23.81 | 54.58 | 0.4889 | -810.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 8.56 | 2.95 | -23.82 | 58.26 | 0.4716 | -853.0 | -687.8 | |
| 0.00 | 2.29 | 0.00 | 1.30 | 10.87 | 2.71 | -24.06 | 54.48 | 0.4940 | -947.0 | -760.2 | |
| 0.00 | 1.50 | 0.00 | 0.84 | 8.91 | 2.76 | -24.01 | 57.83 | 0.4769 | -653.0 | -527.7 | |
| 0.00 | 1.67 | 0.00 | 0.95 | 10.98 | 2.43 | -24.34 | 54.61 | 0.4983 | -746.0 | -523.6 | |
| 0.00 | 1.58 | 0.00 | 0.90 | 9.46 | 2.29 | -24.49 | 57.37 | 0.4874 | -537.0 | -463.0 | |
| 0.00 | 1.06 | 0.00 | 0.61 | 11.41 | 2.06 | -24.72 | 54.32 | 0.5066 | -657.0 | -512.6 | |
| 1.76 | 6.16 | 1.00 | 3.51 | 9.85 | 1.99 | -24.78 | 57.01 | 0.4944 | -919.0 | -685.1 | |
| 0.00 | 0.97 | 0.00 | 0.55 | 10.08 | 1.63 | -25.14 | 56.99 | 0.5008 | -541.0 | -467.4 | |
| 0.00 | 1.85 | 0.00 | 1.07 | 11.97 | 1.43 | -25.35 | 54.10 | 0.5191 | -862.0 | -671.6 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 14.64 | 0.96 | -25.82 | 50.55 | 0.5478 | 543.0 | 514.4 | |
| 0.53 | 2.55 | 0.30 | 1.46 | 10.10 | 1.23 | -25.55 | 57.38 | 0.5061 | -778.3 | -582.1 | |
| 0.62 | 2.11 | 0.36 | 1.23 | 12.25 | 0.96 | -25.82 | 54.16 | 0.5271 | -861.6 | -643.4 | |
| 1.41 | 2.73 | 0.82 | 1.58 | 11.53 | 0.89 | -25.88 | 55.37 | 0.5218 | -772.1 | -581.4 | |
| 0.00 | 1.23 | 0.00 | 0.72 | 12.77 | 0.70 | -26.08 | 53.63 | 0.5346 | 769.0 | 727.6 | |
| 0.00 | 4.22 | 0.00 | 2.47 | 12.39 | 0.63 | -26.14 | 54.27 | 0.5321 | -678.0 | -586.1 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 12.04 | 0.09 | -26.69 | 55.38 | 0.5358 | -728.0 | -708.8 | |
| 0.00 | 1.41 | 0.00 | 0.83 | 12.15 | 359.87 | -26.90 | 55.43 | 0.5393 | -555.0 | -516.4 | |
| 0.00 | 1.14 | 0.00 | 0.67 | 9.97 | 359.54 | -27.24 | 59.25 | 0.5266 | 896.0 | 755.2 | |
| 0.00 | 1.85 | 0.00 | 1.08 | 10.11 | 359.25 | -27.52 | 59.29 | 0.5313 | 758.0 | 644.5 | |
| 0.00 | 0.97 | 0.00 | 0.57 | 9.96 | 359.09 | -27.68 | 59.68 | 0.5322 | 910.0 | 807.5 | |
| 0.00 | 2.02 | 0.00 | 1.19 | 11.10 | 358.88 | -27.90 | 58.04 | 0.5433 | 812.0 | 620.9 | |
| 1.32 | 2.82 | 0.78 | 1.66 | 10.93 | 358.62 | -28.16 | 58.55 | 0.5452 | 926.7 | 740.6 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 11.92 | 358.20 | -28.58 | 57.38 | 0.5579 | 572.0 | 406.8 | |
| 0.79 | 10.47 | 0.47 | 6.18 | 10.17 | 358.24 | -28.53 | 60.11 | 0.5444 | 914.3 | 733.6 | |
| 4.75 | -32.00 | 2.80 | -32.00 | 10.02 | 358.05 | -28.73 | 60.51 | 0.5459 | 949.7 | 999999 | |
| 1.50 | 2.99 | 0.90 | 1.79 | 12.08 | 357.72 | -29.05 | 57.57 | 0.5648 | 841.1 | 638.1 | |
| 0.00 | 2.90 | 0.00 | 1.74 | 11.29 | 357.14 | -29.63 | 59.28 | 0.5662 | 942.0 | 712.4 | |
| 0.00 | 1.23 | 0.00 | 0.74 | 10.83 | 356.98 | -29.79 | 60.13 | 0.5649 | 580.0 | 449.6 | |
| 1.06 | 97.13 | 0.63 | 58.36 | 10.53 | 356.80 | -29.97 | 60.75 | 0.5651 | 906.9 | 203.3 | |
| 2.55 | -37.00 | 1.53 | -37.00 | 10.31 | 356.79 | -29.98 | 61.10 | 0.5637 | 1101.4 | 999999 | |
| 1.41 | 4.05 | 0.85 | 2.44 | 11.10 | 356.67 | -30.10 | 59.97 | 0.5706 | 657.1 | 393.8 | |
| 0.97 | -37.00 | 0.58 | -37.00 | 10.73 | 356.53 | -30.24 | 60.65 | 0.5698 | 462.6 | 999999 | |
| 13.81 | -37.00 | 8.29 | -37.00 | 10.20 | 356.52 | -30.25 | 61.50 | 0.5664 | 911.9 | 999999 | |
| 4.66 | -37.00 | 2.83 | -37.00 | 10.53 | 355.74 | -31.03 | 61.60 | 0.5784 | -1018.2 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.85 | 10.81 | 355.71 | -31.07 | 61.19 | 0.5806 | -195.0 | -357.1 | |
| 1.94 | 4.22 | 1.18 | 2.57 | 10.71 | 355.25 | -31.52 | 61.69 | 0.5857 | -799.7 | -580.2 | |
| 0.00 | 0.88 | 0.00 | 0.54 | 11.06 | 355.18 | -31.60 | 61.22 | 0.5889 | -262.0 | -196.6 | |
| 0.00 | 0.97 | 0.00 | 0.60 | 11.68 | 354.34 | -32.43 | 60.94 | 0.6031 | 708.0 | 498.2 | |
| 0.00 | 1.14 | 0.00 | 0.72 | 13.21 | 354.05 | -32.72 | 58.93 | 0.6166 | 732.0 | 560.5 | |
| 0.00 | 1.23 | 0.00 | 0.78 | 13.41 | 353.91 | -32.86 | 58.76 | 0.6196 | 734.0 | 605.7 | |
| 0.44 | 3.08 | 0.27 | 1.92 | 12.17 | 354.02 | -32.76 | 60.46 | 0.6102 | 955.8 | 792.7 | |
| 0.00 | 1.94 | 0.00 | 1.21 | 12.46 | 353.90 | -32.87 | 60.12 | 0.6134 | 743.0 | 732.0 | |
| 0.00 | 1.23 | 0.00 | 0.77 | 12.75 | 353.83 | -32.95 | 59.76 | 0.6162 | 739.0 | 548.9 | |
| 0.00 | 0.79 | 0.00 | 0.49 | 11.49 | 353.93 | -32.85 | 61.53 | 0.6069 | 793.0 | 713.8 | |
| 0.00 | 1.14 | 0.00 | 0.71 | 11.90 | 353.87 | -32.90 | 60.97 | 0.6102 | 732.0 | 677.8 | |
| 0.00 | 1.58 | 0.00 | 0.99 | 11.62 | 353.84 | -32.94 | 61.40 | 0.6088 | 733.0 | 609.4 | |
| 1.14 | 4.40 | 0.72 | 2.76 | 12.39 | 353.58 | -33.19 | 60.47 | 0.6168 | 831.6 | 681.7 | |
| 0.00 | 1.58 | 0.00 | 0.99 | 12.08 | 353.48 | -33.29 | 60.99 | 0.6160 | 588.0 | 480.1 | |
| 0.00 | 1.23 | 0.00 | 0.78 | 13.20 | 353.20 | -33.57 | 59.59 | 0.6265 | 506.0 | 470.6 | |
| 0.00 | 0.97 | 0.00 | 0.61 | 12.25 | 353.27 | -33.50 | 60.89 | 0.6196 | 574.0 | 419.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
