SDO HMI 2014-04-05 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 138.26 | 656.12 | 69.45 | 329.80 | -11.35 | 17.70 | -7.43 | 132.90 | 0.1628 | -74.7 | -229.6 | |
|
previous
or next observation for the same group /

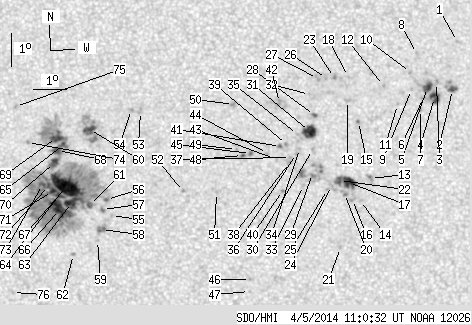

back to the solar disc SDO HMI 2014-04-05 11:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.52 | -7.45 | 27.63 | 2.50 | 244.66 | 0.0480 | 905.0 | 664.5 | |
| 2.55 | 9.32 | 1.27 | 4.63 | -8.89 | 27.48 | 2.35 | 221.67 | 0.0613 | 1071.6 | 847.0 | |
| 0.00 | 2.29 | 0.00 | 1.13 | -8.68 | 27.00 | 1.87 | 217.53 | 0.0531 | 849.0 | 681.3 | |
| 5.98 | 18.82 | 2.97 | 9.34 | -9.13 | 26.94 | 1.81 | 212.04 | 0.0590 | 1086.0 | 847.2 | |
| 4.66 | -4.00 | 2.31 | -4.00 | -8.83 | 26.73 | 1.59 | 211.69 | 0.0525 | 1276.8 | 999999 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -9.13 | 26.61 | 1.47 | 207.03 | 0.0561 | 822.0 | 797.0 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -9.49 | 26.51 | 1.38 | 203.02 | 0.0611 | 924.0 | 749.2 | |
| 0.00 | 1.58 | 0.00 | 0.78 | -7.81 | 26.39 | 1.26 | 219.14 | 0.0346 | 818.0 | 684.7 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.89 | 26.24 | 1.11 | 202.75 | 0.0496 | 752.0 | 546.8 | |
| 0.00 | 1.50 | 0.00 | 0.74 | -8.38 | 26.21 | 1.08 | 206.90 | 0.0413 | 1038.0 | 746.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.34 | 25.82 | 0.68 | 192.43 | 0.0549 | 842.0 | 636.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -8.77 | 25.39 | 0.26 | 185.85 | 0.0439 | 1030.0 | 824.3 | |
| 0.00 | 3.25 | 0.00 | 1.62 | -11.57 | 24.99 | -0.14 | 178.50 | 0.0925 | 1055.0 | 841.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -12.23 | 24.68 | -0.45 | 175.77 | 0.1044 | 811.0 | 697.7 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.85 | 24.63 | -0.50 | 172.09 | 0.0631 | 1038.0 | 902.8 | |
| 0.00 | 2.46 | 0.00 | 1.23 | -12.20 | 24.44 | -0.69 | 173.45 | 0.1042 | 827.0 | 704.4 | |
| 9.32 | 19.00 | 4.64 | 9.45 | -11.69 | 24.32 | -0.81 | 171.59 | 0.0956 | 1178.9 | 837.7 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -8.50 | 24.33 | -0.80 | 160.30 | 0.0413 | 659.0 | 456.1 | |
| 0.00 | 3.25 | 0.00 | 1.61 | -9.22 | 24.30 | -0.84 | 164.31 | 0.0535 | 824.0 | 633.6 | |
| 0.00 | 3.69 | 0.00 | 1.84 | -12.02 | 24.19 | -0.94 | 170.89 | 0.1017 | 861.0 | 690.7 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -13.65 | 24.06 | -1.07 | 171.94 | 0.1301 | 817.0 | 671.8 | |
| 2.99 | -17.00 | 1.49 | -17.00 | -11.63 | 24.04 | -1.09 | 168.68 | 0.0954 | 1181.3 | 999999 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -8.53 | 23.91 | -1.23 | 151.62 | 0.0448 | 1077.0 | 892.3 | |
| 0.00 | 6.60 | 0.00 | 3.28 | -11.78 | 23.80 | -1.34 | 166.59 | 0.0989 | 740.0 | 590.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.90 | 23.67 | -1.46 | 165.71 | 0.1014 | 468.0 | 307.9 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -8.56 | 23.66 | -1.47 | 147.44 | 0.0474 | 844.0 | 636.8 | |
| 0.00 | 2.73 | 0.00 | 1.35 | -8.56 | 23.39 | -1.74 | 142.87 | 0.0501 | 945.0 | 826.9 | |
| 0.79 | 1.94 | 0.39 | 0.96 | -9.67 | 23.29 | -1.84 | 151.81 | 0.0673 | 1099.3 | 916.8 | |
| 0.00 | 21.29 | 0.00 | 10.59 | -11.41 | 23.22 | -1.91 | 159.88 | 0.0957 | 855.0 | 742.2 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.69 | 23.22 | -1.91 | 156.93 | 0.0839 | 858.0 | 665.5 | |
| 11.44 | 14.25 | 5.68 | 7.08 | -10.15 | 23.14 | -2.00 | 153.05 | 0.0760 | 1179.4 | 797.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.04 | 23.14 | -1.99 | 144.52 | 0.0593 | 818.0 | 658.1 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.77 | 22.94 | -2.19 | 158.62 | 0.1033 | -602.0 | -258.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.66 | 22.83 | -2.31 | 152.62 | 0.0864 | 1051.0 | 827.4 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -10.24 | 22.77 | -2.36 | 149.55 | 0.0804 | 719.0 | 527.2 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.81 | 22.73 | -2.40 | 152.49 | 0.0894 | 907.0 | 790.7 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.93 | 22.55 | -2.58 | 151.36 | 0.0928 | 908.0 | 709.3 | |
| 0.00 | 2.02 | 0.00 | 1.01 | -11.08 | 22.52 | -2.62 | 151.84 | 0.0953 | 932.0 | 735.0 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -10.53 | 22.43 | -2.70 | 148.03 | 0.0879 | 958.0 | 739.6 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.92 | 22.29 | -2.84 | 153.76 | 0.1101 | 837.0 | 680.1 | |
| 0.44 | 1.67 | 0.22 | 0.83 | -10.59 | 22.25 | -2.89 | 146.68 | 0.0905 | 1020.0 | 828.9 | |
| 0.00 | 3.43 | 0.00 | 1.70 | -9.27 | 22.23 | -2.90 | 136.28 | 0.0726 | 953.0 | 844.0 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.98 | 22.12 | -3.01 | 147.85 | 0.0974 | 921.0 | 630.5 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.80 | 21.85 | -3.29 | 144.51 | 0.0974 | 969.0 | 743.6 | |
| 0.44 | 2.11 | 0.22 | 1.05 | -10.80 | 21.33 | -3.80 | 140.45 | 0.1028 | 1102.8 | 832.9 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -14.60 | 21.27 | -3.87 | 155.75 | 0.1596 | 1053.0 | 777.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -14.96 | 21.23 | -3.91 | 156.47 | 0.1656 | 790.0 | 595.5 | |
| 0.79 | 2.73 | 0.39 | 1.36 | -10.86 | 21.08 | -4.05 | 139.06 | 0.1064 | 893.6 | 681.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.67 | 20.90 | -4.23 | 136.66 | 0.1061 | 810.0 | 650.8 | |
| 0.00 | 2.99 | 0.00 | 1.49 | -9.32 | 20.83 | -4.30 | 125.73 | 0.0916 | 1082.0 | 832.5 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.96 | 20.27 | -4.87 | 140.11 | 0.1300 | -892.0 | -769.7 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.92 | 19.25 | -5.88 | 134.57 | 0.1414 | -971.0 | -799.9 | |
| 0.00 | 3.17 | 0.00 | 1.58 | -9.50 | 17.98 | -7.15 | 114.87 | 0.1359 | -781.0 | -706.3 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -9.43 | 17.71 | -7.42 | 113.66 | 0.1398 | -990.0 | -795.1 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -12.61 | 17.01 | -8.13 | 128.89 | 0.1781 | -790.0 | -620.2 | |
| 0.53 | 443.33 | 0.27 | 223.75 | -12.13 | 16.87 | -8.27 | 126.21 | 0.1750 | -1007.7 | -486.7 | |
| 0.00 | 2.64 | 0.00 | 1.33 | -12.43 | 16.73 | -8.40 | 127.16 | 0.1798 | -963.0 | -843.7 | |
| 0.00 | 6.77 | 0.00 | 3.41 | -13.03 | 16.68 | -8.45 | 129.63 | 0.1868 | -887.0 | -889.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -13.36 | 16.54 | -8.59 | 130.56 | 0.1921 | -748.0 | -593.2 | |
| 6.16 | 27.71 | 3.09 | 13.91 | -10.01 | 16.41 | -8.73 | 113.92 | 0.1642 | -1252.7 | -846.9 | |
| 2.02 | -56.00 | 1.02 | -56.00 | -12.30 | 16.33 | -8.80 | 125.35 | 0.1841 | -937.2 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -13.77 | 15.78 | -9.35 | 129.83 | 0.2065 | -907.0 | -682.3 | |
| 8.27 | -56.00 | 4.17 | -56.00 | -12.20 | 15.78 | -9.36 | 123.32 | 0.1910 | -1209.6 | 999999 | |
| 32.72 | -56.00 | 16.50 | -56.00 | -11.71 | 15.61 | -9.52 | 120.67 | 0.1892 | -1391.9 | 999999 | |
| 1.50 | -56.00 | 0.75 | -56.00 | -10.45 | 15.59 | -9.54 | 114.44 | 0.1799 | -1210.5 | 999999 | |
| 21.46 | -56.00 | 10.85 | -56.00 | -12.40 | 15.40 | -9.74 | 123.21 | 0.1983 | -1080.2 | 999999 | |
| 2.55 | -56.00 | 1.29 | -56.00 | -11.98 | 15.38 | -9.75 | 121.31 | 0.1948 | -1134.0 | 999999 | |
| 4.13 | -56.00 | 2.08 | -56.00 | -10.63 | 15.40 | -9.73 | 114.93 | 0.1841 | -1168.0 | 999999 | |
| 7.30 | -56.00 | 3.68 | -56.00 | -10.23 | 15.38 | -9.75 | 112.91 | 0.1818 | -1135.3 | 999999 | |
| 4.66 | -56.00 | 2.35 | -56.00 | -10.98 | 15.29 | -9.84 | 116.47 | 0.1883 | -1143.1 | 999999 | |
| 2.55 | -56.00 | 1.29 | -56.00 | -11.86 | 15.20 | -9.93 | 120.31 | 0.1964 | -983.9 | 999999 | |
| 2.55 | -56.00 | 1.29 | -56.00 | -11.67 | 15.08 | -10.05 | 119.21 | 0.1967 | -931.3 | 999999 | |
| 2.46 | -56.00 | 1.24 | -56.00 | -11.64 | 14.90 | -10.24 | 118.63 | 0.1992 | -875.5 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.76 | -10.37 | 14.48 | -10.65 | 111.88 | 0.1969 | 580.0 | 279.4 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -9.28 | 14.14 | -10.99 | 106.07 | 0.1967 | -811.0 | -664.9 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -14.88 | 13.80 | -11.33 | 128.60 | 0.2440 | -819.0 | -488.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
