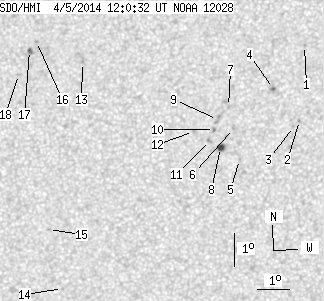

SDO HMI 2014-04-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.13 | 29.55 | 2.12 | 15.28 | -8.91 | 8.31 | -16.28 | 100.59 | 0.2835 | 391.7 | 319.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.06 | 0.00 | 0.53 | -6.82 | 12.37 | -12.21 | 93.21 | 0.2113 | 879.0 | 635.6 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -9.06 | 12.15 | -12.44 | 103.49 | 0.2197 | 920.0 | 807.0 | |
| 0.00 | 1.06 | 0.00 | 0.54 | -9.24 | 11.95 | -12.63 | 104.08 | 0.2235 | 848.0 | 671.6 | |
| 0.44 | 1.67 | 0.22 | 0.85 | -8.08 | 11.37 | -13.21 | 98.61 | 0.2299 | 1046.4 | 836.9 | |
| 0.00 | 0.79 | 0.00 | 0.41 | -10.18 | 10.22 | -14.36 | 106.30 | 0.2555 | 883.0 | 672.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.25 | 10.08 | -14.51 | 102.58 | 0.2545 | -703.0 | -598.8 | |
| 0.00 | 1.23 | 0.00 | 0.63 | -8.58 | 9.95 | -14.64 | 99.91 | 0.2548 | 761.0 | 588.9 | |
| 2.99 | 4.31 | 1.53 | 2.21 | -9.80 | 9.64 | -14.94 | 104.37 | 0.2634 | 1090.4 | 809.4 | |
| 0.00 | 3.69 | 0.00 | 1.90 | -8.96 | 9.59 | -15.00 | 101.16 | 0.2617 | 699.0 | 603.1 | |
| 0.00 | 1.50 | 0.00 | 0.77 | -9.26 | 9.48 | -15.10 | 102.21 | 0.2643 | 713.0 | 660.9 | |
| 0.00 | 2.81 | 0.00 | 1.45 | -9.58 | 9.31 | -15.28 | 103.30 | 0.2682 | 734.0 | 656.7 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -9.30 | 8.82 | -15.77 | 101.94 | 0.2753 | 837.0 | 662.5 | |
| 0.00 | 0.62 | 0.00 | 0.32 | -7.11 | 5.39 | -19.19 | 93.60 | 0.3283 | -884.0 | -730.0 | |
| 0.00 | 0.88 | 0.00 | 0.47 | -13.88 | 4.28 | -20.30 | 112.39 | 0.3659 | 729.0 | 563.4 | |
| 0.00 | 1.23 | 0.00 | 0.65 | -12.08 | 3.98 | -20.61 | 107.41 | 0.3623 | 778.0 | 563.8 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -6.43 | 3.94 | -20.64 | 91.55 | 0.3520 | -775.0 | -642.2 | |
| 0.70 | 2.99 | 0.37 | 1.58 | -6.69 | 3.70 | -20.88 | 92.30 | 0.3558 | -804.6 | -697.8 | |
| 0.00 | 1.58 | 0.00 | 0.84 | -7.39 | 3.31 | -21.27 | 94.25 | 0.3623 | -772.0 | -608.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
