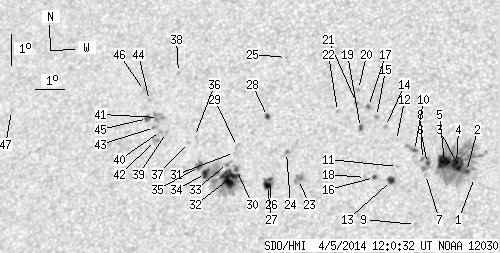

SDO HMI 2014-04-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.91 | 300.18 | 40.45 | 171.52 | 10.61 | 0.09 | -24.50 | 55.00 | 0.4971 | -140.7 | -122.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 12:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.67 | 0.00 | 0.92 | 9.89 | 4.81 | -19.77 | 50.77 | 0.4321 | -527.0 | -380.4 | |
| 1.67 | 122.78 | 0.92 | 67.81 | 10.08 | 4.54 | -20.05 | 50.80 | 0.4373 | -1122.3 | -501.3 | |
| 5.01 | -2.00 | 2.77 | -2.00 | 10.22 | 4.30 | -20.28 | 50.89 | 0.4415 | -1220.3 | 999999 | |
| 8.36 | -2.00 | 4.62 | -2.00 | 10.38 | 4.19 | -20.39 | 50.75 | 0.4444 | -1103.6 | 999999 | |
| 14.34 | -2.00 | 7.94 | -2.00 | 10.43 | 3.80 | -20.78 | 51.21 | 0.4496 | -1018.0 | 999999 | |
| 0.97 | 7.56 | 0.54 | 4.21 | 10.39 | 3.25 | -21.34 | 52.02 | 0.4560 | -954.5 | -710.8 | |
| 0.00 | 0.79 | 0.00 | 0.44 | 10.05 | 3.21 | -21.38 | 52.67 | 0.4533 | -580.0 | -449.7 | |
| 0.00 | 2.02 | 0.00 | 1.13 | 10.52 | 3.07 | -21.51 | 52.01 | 0.4593 | -853.0 | -695.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 8.50 | 2.98 | -21.61 | 55.80 | 0.4422 | -680.0 | -639.9 | |
| 0.62 | 5.54 | 0.34 | 3.10 | 10.81 | 2.79 | -21.80 | 51.87 | 0.4656 | -846.4 | -560.3 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 10.34 | 2.26 | -22.32 | 53.36 | 0.4676 | -662.0 | -488.0 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 11.15 | 2.17 | -22.42 | 52.07 | 0.4763 | -396.0 | -338.9 | |
| 3.08 | 5.01 | 1.72 | 2.80 | 9.91 | 2.10 | -22.49 | 54.31 | 0.4658 | -899.2 | -664.3 | |
| 0.00 | 1.76 | 0.00 | 1.00 | 11.61 | 1.77 | -22.82 | 51.81 | 0.4853 | -811.0 | -553.9 | |
| 0.00 | 1.76 | 0.00 | 1.00 | 11.94 | 1.44 | -23.15 | 51.66 | 0.4923 | -804.0 | -646.3 | |
| 0.97 | 1.85 | 0.54 | 1.04 | 10.03 | 1.53 | -23.06 | 54.79 | 0.4740 | -756.5 | -621.3 | |
| 0.62 | 2.11 | 0.35 | 1.20 | 12.27 | 1.14 | -23.45 | 51.49 | 0.4989 | -784.3 | -622.0 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 10.04 | 1.23 | -23.36 | 55.11 | 0.4779 | -437.0 | -366.1 | |
| 0.97 | 2.29 | 0.55 | 1.30 | 11.62 | 0.93 | -23.65 | 52.79 | 0.4954 | -795.3 | -628.3 | |
| 0.00 | 0.88 | 0.00 | 0.51 | 12.83 | 0.75 | -23.84 | 51.07 | 0.5086 | 821.0 | 673.7 | |
| 0.00 | 1.58 | 0.00 | 0.91 | 12.42 | 0.72 | -23.86 | 51.75 | 0.5051 | -682.0 | -642.1 | |
| 0.00 | 1.14 | 0.00 | 0.66 | 12.16 | 0.11 | -24.48 | 52.86 | 0.5101 | -667.0 | -644.0 | |
| 0.00 | 7.74 | 0.00 | 4.44 | 10.08 | 358.98 | -25.61 | 57.49 | 0.5066 | 956.0 | 766.8 | |
| 0.00 | 1.67 | 0.00 | 0.97 | 10.95 | 358.49 | -26.09 | 56.54 | 0.5196 | 874.0 | 736.4 | |
| 0.00 | 1.06 | 0.00 | 0.62 | 13.97 | 358.17 | -26.42 | 52.18 | 0.5487 | -561.0 | -442.9 | |
| 1.06 | 10.20 | 0.61 | 5.90 | 10.14 | 357.99 | -26.59 | 58.39 | 0.5195 | 882.4 | 755.0 | |
| 3.87 | -26.00 | 2.24 | -26.00 | 9.95 | 357.94 | -26.65 | 58.75 | 0.5188 | 973.5 | 999999 | |
| 1.58 | 2.46 | 0.93 | 1.45 | 12.13 | 357.73 | -26.86 | 55.44 | 0.5385 | 773.7 | 651.8 | |
| 0.00 | 2.20 | 0.00 | 1.30 | 11.23 | 356.78 | -27.80 | 57.76 | 0.5430 | 519.0 | 549.9 | |
| 1.32 | 75.46 | 0.77 | 44.36 | 10.51 | 356.82 | -27.76 | 58.88 | 0.5371 | 849.7 | 142.1 | |
| 0.00 | 0.44 | 0.00 | 0.26 | 11.05 | 356.70 | -27.88 | 58.13 | 0.5426 | 743.0 | 569.0 | |
| 18.29 | -30.00 | 10.73 | -30.00 | 10.24 | 356.61 | -27.98 | 59.51 | 0.5378 | 923.2 | 999999 | |
| 0.00 | 3.08 | 0.00 | 1.81 | 10.72 | 356.49 | -28.09 | 58.85 | 0.5428 | 369.0 | 336.1 | |
| 4.05 | -30.00 | 2.40 | -30.00 | 10.44 | 355.75 | -28.83 | 59.94 | 0.5501 | -1024.0 | 999999 | |
| 2.46 | 5.54 | 1.46 | 3.29 | 10.68 | 355.52 | -29.06 | 59.78 | 0.5546 | -880.7 | -657.4 | |
| 0.00 | 0.62 | 0.00 | 0.37 | 11.63 | 355.24 | -29.34 | 58.53 | 0.5650 | -591.0 | -553.0 | |
| 0.00 | 0.88 | 0.00 | 0.53 | 11.45 | 355.05 | -29.54 | 58.97 | 0.5660 | -626.0 | -576.7 | |
| 0.00 | 1.41 | 0.00 | 0.86 | 13.70 | 354.41 | -30.18 | 56.16 | 0.5902 | 677.0 | 560.4 | |
| 0.00 | 0.97 | 0.00 | 0.59 | 11.82 | 354.23 | -30.36 | 59.11 | 0.5786 | 641.0 | 602.5 | |
| 0.00 | 1.32 | 0.00 | 0.80 | 11.86 | 354.01 | -30.58 | 59.22 | 0.5816 | 867.0 | 738.5 | |
| 0.00 | 7.92 | 0.00 | 4.83 | 12.31 | 353.88 | -30.70 | 58.66 | 0.5863 | 647.0 | 784.8 | |
| 0.00 | 3.52 | 0.00 | 2.14 | 11.59 | 353.86 | -30.72 | 59.76 | 0.5815 | 831.0 | 691.2 | |
| 0.00 | 2.11 | 0.00 | 1.29 | 12.00 | 353.78 | -30.81 | 59.20 | 0.5854 | 805.0 | 743.9 | |
| 0.00 | 1.85 | 0.00 | 1.14 | 12.87 | 353.48 | -31.10 | 58.16 | 0.5950 | 686.0 | 561.2 | |
| 1.67 | 3.34 | 1.02 | 2.05 | 12.30 | 353.49 | -31.10 | 58.99 | 0.5910 | 753.3 | 631.4 | |
| 0.00 | 1.93 | 0.00 | 1.20 | 13.20 | 353.26 | -31.33 | 57.86 | 0.6000 | 493.0 | 459.1 | |
| 0.00 | 1.06 | 0.00 | 0.69 | 12.88 | 348.37 | -36.22 | 61.89 | 0.6553 | 564.0 | 434.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
