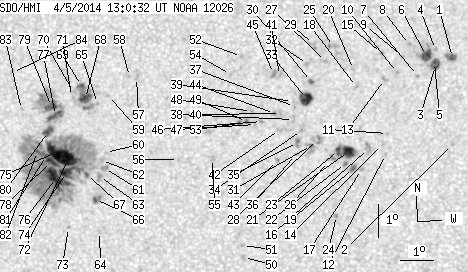

SDO HMI 2014-04-05 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 141.68 | 652.92 | 71.00 | 327.38 | -11.38 | 17.94 | -6.09 | 140.00 | 0.1485 | -80.7 | -188.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.37 | 7.04 | 1.18 | 3.50 | -8.85 | 27.60 | 3.57 | 233.75 | 0.0766 | 1076.2 | 919.9 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.47 | 27.63 | 3.59 | 214.14 | 0.1100 | 907.0 | 709.4 | |
| 4.13 | 25.06 | 2.05 | 12.44 | -9.09 | 27.09 | 3.05 | 226.87 | 0.0724 | 1016.8 | 801.0 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -8.61 | 27.08 | 3.05 | 232.14 | 0.0669 | 956.0 | 748.6 | |
| 1.58 | -3.00 | 0.79 | -3.00 | -9.00 | 27.06 | 3.02 | 227.52 | 0.0709 | 1199.2 | 999999 | |
| 6.51 | -3.00 | 3.23 | -3.00 | -8.79 | 26.81 | 2.78 | 227.41 | 0.0653 | 1235.3 | 999999 | |
| 0.00 | 1.50 | 0.00 | 0.74 | -9.40 | 26.54 | 2.51 | 218.39 | 0.0698 | 792.0 | 688.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -8.47 | 26.29 | 2.26 | 225.55 | 0.0549 | 987.0 | 807.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.83 | 26.08 | 2.05 | 218.43 | 0.0571 | 867.0 | 655.2 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.31 | 25.93 | 1.90 | 211.72 | 0.0625 | 938.0 | 750.2 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -11.14 | 25.64 | 1.60 | 197.92 | 0.0895 | 808.0 | 658.6 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.77 | 25.58 | 1.54 | 195.39 | 0.0998 | 789.0 | 585.0 | |
| 0.00 | 2.81 | 0.00 | 1.40 | -9.52 | 25.54 | 1.50 | 204.60 | 0.0625 | 927.0 | 754.8 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.47 | 25.49 | 1.45 | 195.32 | 0.0943 | 736.0 | 579.7 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.74 | 25.45 | 1.41 | 209.54 | 0.0496 | 1106.0 | 839.2 | |
| 0.00 | 6.42 | 0.00 | 3.19 | -11.59 | 25.06 | 1.02 | 190.68 | 0.0947 | 865.0 | 776.4 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -12.23 | 24.84 | 0.81 | 187.58 | 0.1050 | 793.0 | 638.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.73 | 24.69 | 0.65 | 190.57 | 0.0615 | 939.0 | 739.5 | |
| 0.97 | 3.96 | 0.48 | 1.97 | -12.20 | 24.60 | 0.56 | 185.32 | 0.1040 | 987.6 | 785.1 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -9.22 | 24.60 | 0.56 | 190.68 | 0.0524 | 843.0 | 647.0 | |
| 9.23 | 25.06 | 4.59 | 12.47 | -11.68 | 24.45 | 0.41 | 184.25 | 0.0949 | 1180.3 | 778.1 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -12.05 | 24.35 | 0.32 | 183.09 | 0.1011 | 887.0 | 766.5 | |
| 2.64 | -21.00 | 1.31 | -21.00 | -11.65 | 24.14 | 0.10 | 181.08 | 0.0941 | 1150.3 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -13.61 | 24.08 | 0.04 | 180.31 | 0.1283 | 980.0 | 838.0 | |
| 0.00 | 4.49 | 0.00 | 2.22 | -8.53 | 23.99 | -0.05 | 178.86 | 0.0394 | 709.0 | 837.8 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -11.98 | 23.83 | -0.20 | 178.00 | 0.0999 | 399.0 | 457.2 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -8.98 | 23.75 | -0.29 | 173.97 | 0.0476 | 954.0 | 790.8 | |
| 0.00 | 6.51 | 0.00 | 3.24 | -11.32 | 23.50 | -0.54 | 174.02 | 0.0888 | 866.0 | 876.3 | |
| 0.00 | 5.28 | 0.00 | 2.62 | -8.47 | 23.38 | -0.65 | 163.59 | 0.0400 | 885.0 | 628.5 | |
| 0.70 | 2.37 | 0.35 | 1.18 | -9.58 | 23.32 | -0.72 | 167.92 | 0.0591 | 1125.0 | 917.0 | |
| 0.35 | 6.95 | 0.17 | 3.46 | -11.50 | 23.31 | -0.72 | 172.27 | 0.0923 | 1087.0 | 513.1 | |
| 0.00 | 2.02 | 0.00 | 1.00 | -9.07 | 23.20 | -0.84 | 163.52 | 0.0510 | 959.0 | 762.3 | |
| 10.64 | 13.46 | 5.28 | 6.68 | -10.09 | 23.17 | -0.87 | 167.33 | 0.0684 | 1168.3 | 810.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.05 | 23.01 | -1.03 | 168.07 | 0.0854 | 937.0 | 766.2 | |
| 0.00 | 4.57 | 0.00 | 2.27 | -11.41 | 22.89 | -1.15 | 167.59 | 0.0920 | 1003.0 | 859.4 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -11.77 | 22.82 | -1.21 | 167.78 | 0.0984 | -528.0 | -381.6 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.33 | 22.80 | -1.24 | 163.27 | 0.0741 | 903.0 | 683.0 | |
| 0.00 | 2.73 | 0.00 | 1.35 | -10.72 | 22.77 | -1.27 | 164.30 | 0.0808 | 810.0 | 803.7 | |
| 0.00 | 0.44 | 0.00 | 0.22 | -10.18 | 22.74 | -1.30 | 161.87 | 0.0719 | 327.0 | 431.6 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -10.54 | 22.37 | -1.66 | 158.97 | 0.0799 | 929.0 | 673.2 | |
| 0.00 | 2.73 | 0.00 | 1.35 | -9.39 | 22.35 | -1.69 | 151.89 | 0.0619 | 855.0 | 725.2 | |
| 0.00 | 2.73 | 0.00 | 1.36 | -11.02 | 22.34 | -1.70 | 160.61 | 0.0880 | 791.0 | 707.9 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.95 | 22.27 | -1.77 | 163.04 | 0.1038 | 907.0 | 659.4 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -10.54 | 22.19 | -1.85 | 156.89 | 0.0811 | 1001.0 | 868.0 | |
| 0.00 | 3.78 | 0.00 | 1.88 | -9.33 | 22.17 | -1.87 | 148.88 | 0.0626 | 1121.0 | 941.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -10.77 | 21.79 | -2.25 | 153.86 | 0.0878 | 936.0 | 715.1 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -10.86 | 21.61 | -2.43 | 152.50 | 0.0906 | 671.0 | 552.3 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -10.47 | 21.49 | -2.55 | 149.15 | 0.0857 | 840.0 | 763.2 | |
| 0.44 | 1.67 | 0.22 | 0.83 | -10.77 | 21.33 | -2.70 | 149.42 | 0.0915 | 1005.8 | 843.9 | |
| 0.00 | 2.55 | 0.00 | 1.28 | -14.87 | 21.19 | -2.85 | 162.21 | 0.1578 | 761.0 | 637.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -14.51 | 21.16 | -2.87 | 161.29 | 0.1520 | 884.0 | 701.6 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -8.82 | 21.20 | -2.84 | 132.23 | 0.0664 | 762.0 | 686.8 | |
| 0.79 | 1.67 | 0.39 | 0.83 | -10.83 | 21.12 | -2.92 | 147.82 | 0.0943 | 957.3 | 837.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.36 | 20.86 | -3.18 | 134.54 | 0.0771 | 1037.0 | 825.6 | |
| 0.00 | 3.78 | 0.00 | 1.89 | -11.88 | 20.28 | -3.76 | 146.72 | 0.1175 | -773.0 | -683.5 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -11.90 | 19.23 | -4.80 | 140.17 | 0.1285 | -926.0 | -744.3 | |
| 0.00 | 2.20 | 0.00 | 1.10 | -9.42 | 17.99 | -6.04 | 118.04 | 0.1182 | -802.0 | -671.3 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.38 | 17.78 | -6.26 | 117.01 | 0.1212 | -782.0 | -564.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.95 | 17.12 | -6.91 | 118.64 | 0.1357 | -754.0 | -660.0 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.66 | 16.99 | -7.05 | 128.20 | 0.1536 | -884.0 | -591.2 | |
| 0.00 | 3.61 | 0.00 | 1.81 | -12.14 | 16.95 | -7.09 | 130.46 | 0.1593 | -936.0 | -786.2 | |
| 0.00 | 3.43 | 0.00 | 1.72 | -11.90 | 16.86 | -7.18 | 128.93 | 0.1579 | -339.0 | -312.2 | |
| 0.00 | 3.87 | 0.00 | 1.94 | -12.38 | 16.78 | -7.25 | 130.98 | 0.1641 | -1002.0 | -829.1 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -14.04 | 16.73 | -7.30 | 137.77 | 0.1844 | -786.0 | -630.8 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.18 | 16.78 | -7.25 | 119.00 | 0.1428 | -910.0 | -724.8 | |
| 1.06 | 5.19 | 0.53 | 2.61 | -13.07 | 16.64 | -7.40 | 133.53 | 0.1738 | -995.9 | -846.2 | |
| 0.97 | 361.36 | 0.49 | 181.93 | -12.31 | 16.38 | -7.65 | 129.19 | 0.1686 | -909.6 | -456.7 | |
| 6.86 | 26.65 | 3.44 | 13.34 | -10.03 | 16.42 | -7.62 | 116.92 | 0.1471 | -1225.1 | -859.1 | |
| 1.32 | -68.00 | 0.66 | -68.00 | -9.63 | 16.30 | -7.73 | 114.15 | 0.1460 | -923.5 | 999999 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -9.81 | 16.05 | -7.98 | 114.59 | 0.1512 | -731.0 | -700.8 | |
| 0.00 | 0.35 | 0.00 | 0.18 | -9.96 | 15.99 | -8.05 | 115.32 | 0.1532 | -361.0 | -574.5 | |
| 16.89 | -67.00 | 8.49 | -67.00 | -11.82 | 15.84 | -8.19 | 125.00 | 0.1711 | -1441.7 | 999999 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -13.90 | 15.77 | -8.27 | 133.79 | 0.1942 | -847.0 | -608.8 | |
| 10.47 | -67.00 | 5.27 | -67.00 | -12.24 | 15.77 | -8.27 | 126.76 | 0.1763 | -1188.3 | 999999 | |
| 16.89 | -67.00 | 8.49 | -67.00 | -11.63 | 15.45 | -8.59 | 122.87 | 0.1750 | -1288.0 | 999999 | |
| 24.54 | -67.00 | 12.36 | -67.00 | -12.42 | 15.42 | -8.62 | 126.46 | 0.1828 | -1059.7 | 999999 | |
| 4.92 | 59.36 | 2.47 | 29.82 | -10.52 | 15.48 | -8.56 | 117.20 | 0.1652 | -1181.5 | -602.2 | |
| 4.92 | -67.00 | 2.48 | -67.00 | -11.90 | 15.31 | -8.72 | 123.77 | 0.1793 | -1094.6 | 999999 | |
| 5.89 | -77.00 | 2.96 | -77.00 | -10.25 | 15.36 | -8.67 | 115.40 | 0.1650 | -1108.9 | 999999 | |
| 4.75 | -77.00 | 2.39 | -77.00 | -11.00 | 15.25 | -8.79 | 119.12 | 0.1724 | -1137.0 | 999999 | |
| 0.79 | -67.00 | 0.40 | -67.00 | -11.72 | 15.16 | -8.87 | 122.47 | 0.1798 | -935.6 | 999999 | |
| 1.06 | -67.00 | 0.53 | -67.00 | -11.59 | 14.89 | -9.15 | 121.11 | 0.1827 | -858.7 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -10.32 | 14.44 | -9.60 | 113.69 | 0.1800 | 219.0 | 37.0 | |
| 0.00 | 1.41 | 0.00 | 0.71 | -9.21 | 14.19 | -9.84 | 107.32 | 0.1776 | -761.0 | -541.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
