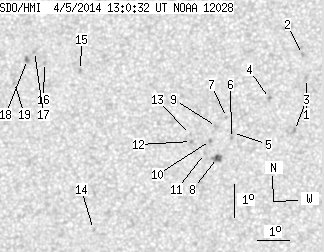

SDO HMI 2014-04-05 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.20 | 32.98 | 1.13 | 16.97 | -8.54 | 8.65 | -15.39 | 99.82 | 0.2679 | 282.8 | 269.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 13:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.90 | 0.00 | 1.47 | -7.52 | 12.51 | -11.52 | 96.86 | 0.2004 | 836.0 | 612.9 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -6.80 | 12.41 | -11.63 | 93.22 | 0.2013 | 955.0 | 768.5 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -9.07 | 12.09 | -11.94 | 104.02 | 0.2116 | 995.0 | 757.6 | |
| 0.00 | 1.93 | 0.00 | 0.98 | -8.09 | 11.35 | -12.68 | 98.96 | 0.2211 | 1007.0 | 810.7 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -9.08 | 10.16 | -13.87 | 102.39 | 0.2435 | -621.0 | -462.7 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -9.26 | 10.12 | -13.91 | 103.09 | 0.2447 | -565.0 | -412.5 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -8.63 | 9.99 | -14.04 | 100.43 | 0.2451 | 775.0 | 596.5 | |
| 2.20 | 5.98 | 1.13 | 3.06 | -9.82 | 9.66 | -14.38 | 104.90 | 0.2543 | 1144.1 | 831.4 | |
| 0.00 | 2.20 | 0.00 | 1.12 | -8.89 | 9.67 | -14.37 | 101.28 | 0.2511 | 939.0 | 656.6 | |
| 0.00 | 1.32 | 0.00 | 0.68 | -9.30 | 9.46 | -14.57 | 102.75 | 0.2557 | 808.0 | 594.8 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -9.69 | 9.26 | -14.78 | 104.07 | 0.2604 | 718.0 | 547.2 | |
| 0.00 | 1.14 | 0.00 | 0.59 | -9.32 | 8.86 | -15.17 | 102.39 | 0.2656 | 984.0 | 764.6 | |
| 0.00 | 0.97 | 0.00 | 0.50 | -9.10 | 8.84 | -15.19 | 101.59 | 0.2653 | 738.0 | 514.0 | |
| 0.00 | 1.32 | 0.00 | 0.69 | -11.86 | 5.59 | -18.44 | 108.35 | 0.3276 | 785.0 | 636.5 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -7.07 | 5.45 | -18.59 | 93.53 | 0.3183 | -934.0 | -734.8 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -6.79 | 4.31 | -19.73 | 92.61 | 0.3370 | -879.0 | -591.9 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -6.45 | 4.00 | -20.03 | 91.60 | 0.3420 | -793.0 | -652.6 | |
| 0.00 | 2.73 | 0.00 | 1.44 | -6.68 | 3.77 | -20.27 | 92.28 | 0.3458 | -922.0 | -762.4 | |
| 0.00 | 1.50 | 0.00 | 0.79 | -7.35 | 3.32 | -20.72 | 94.19 | 0.3534 | -708.0 | -532.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
