SDO HMI 2014-04-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 134.98 | 645.76 | 67.58 | 323.51 | -11.36 | 17.92 | -5.56 | 142.88 | 0.1432 | -126.6 | -212.6 | |
|
previous
or next observation for the same group /

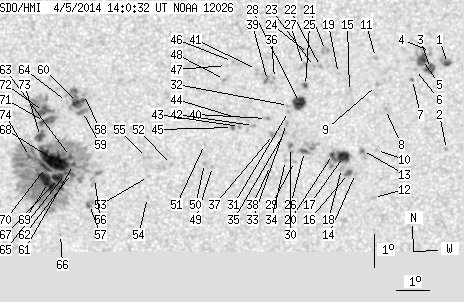

back to the solar disc SDO HMI 2014-04-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.46 | 8.62 | 1.22 | 4.28 | -8.88 | 27.66 | 4.18 | 237.65 | 0.0856 | 1027.0 | 834.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.46 | 27.66 | 4.18 | 218.25 | 0.1159 | 893.0 | 755.2 | |
| 4.66 | 24.45 | 2.32 | 12.14 | -9.03 | 27.15 | 3.66 | 232.62 | 0.0797 | 1087.7 | 809.3 | |
| 0.00 | 3.34 | 0.00 | 1.66 | -8.52 | 27.14 | 3.66 | 238.08 | 0.0747 | 771.0 | 657.5 | |
| 6.42 | -3.00 | 3.19 | -3.00 | -8.76 | 26.90 | 3.42 | 233.57 | 0.0735 | 1240.5 | 999999 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.06 | 26.69 | 3.21 | 228.59 | 0.0740 | 890.0 | 680.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.36 | 26.60 | 3.12 | 224.85 | 0.0764 | 834.0 | 632.9 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.27 | 25.79 | 2.30 | 209.58 | 0.0804 | 810.0 | 717.4 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.55 | 25.51 | 2.02 | 211.39 | 0.0671 | 792.0 | 591.6 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.50 | 25.52 | 2.03 | 200.90 | 0.0979 | 866.0 | 559.5 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -8.71 | 25.48 | 1.99 | 218.98 | 0.0548 | 1030.0 | 788.4 | |
| 0.00 | 2.37 | 0.00 | 1.18 | -12.92 | 25.44 | 1.95 | 196.01 | 0.1209 | 644.0 | 592.4 | |
| 0.53 | 4.66 | 0.26 | 2.32 | -11.50 | 25.09 | 1.60 | 196.78 | 0.0955 | 1062.0 | 792.2 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -12.19 | 24.88 | 1.39 | 192.99 | 0.1063 | 899.0 | 758.8 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -9.73 | 24.69 | 1.20 | 198.97 | 0.0639 | 756.0 | 698.1 | |
| 1.67 | 3.61 | 0.83 | 1.80 | -12.19 | 24.66 | 1.18 | 191.04 | 0.1055 | 1010.8 | 826.3 | |
| 8.97 | 24.97 | 4.46 | 12.43 | -11.68 | 24.51 | 1.02 | 190.53 | 0.0962 | 1195.3 | 836.3 | |
| 0.00 | 2.73 | 0.00 | 1.36 | -12.04 | 24.45 | 0.96 | 189.30 | 0.1023 | 761.0 | 710.9 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -9.19 | 24.35 | 0.87 | 196.41 | 0.0531 | 850.0 | 716.2 | |
| 1.23 | -17.00 | 0.61 | -17.00 | -11.62 | 24.17 | 0.69 | 187.19 | 0.0943 | 1158.2 | 999999 | |
| 0.00 | 4.92 | 0.00 | 2.44 | -8.50 | 23.96 | 0.47 | 191.90 | 0.0397 | 785.0 | 860.9 | |
| 0.00 | 1.58 | 0.00 | 0.78 | -8.98 | 23.81 | 0.32 | 186.70 | 0.0476 | 1045.0 | 802.4 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.98 | 23.62 | 0.14 | 182.90 | 0.0473 | 766.0 | 628.3 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -8.59 | 23.44 | -0.04 | 178.94 | 0.0405 | 1046.0 | 884.7 | |
| 0.88 | 2.37 | 0.44 | 1.18 | -9.55 | 23.35 | -0.14 | 177.66 | 0.0573 | 1165.1 | 954.3 | |
| 1.85 | 12.22 | 0.92 | 6.08 | -11.53 | 23.32 | -0.17 | 178.19 | 0.0920 | 979.1 | 755.6 | |
| 0.00 | 5.28 | 0.00 | 2.62 | -8.95 | 23.29 | -0.20 | 175.86 | 0.0469 | 871.0 | 745.5 | |
| 10.46 | 13.10 | 5.19 | 6.50 | -10.06 | 23.17 | -0.32 | 175.24 | 0.0664 | 1186.8 | 801.0 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.83 | 23.01 | -0.48 | 175.19 | 0.0975 | -307.0 | -199.9 | |
| 0.00 | 5.10 | 0.00 | 2.54 | -11.41 | 22.89 | -0.60 | 173.48 | 0.0904 | 960.0 | 800.0 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.33 | 22.83 | -0.65 | 170.95 | 0.0718 | 998.0 | 760.7 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -10.15 | 22.83 | -0.65 | 170.54 | 0.0687 | 605.0 | 614.3 | |
| 0.00 | 2.20 | 0.00 | 1.09 | -10.69 | 22.77 | -0.72 | 170.91 | 0.0782 | 949.0 | 871.1 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -11.80 | 22.73 | -0.75 | 172.40 | 0.0975 | -514.0 | -373.8 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.96 | 22.71 | -0.78 | 170.71 | 0.0830 | 939.0 | 833.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.33 | 22.41 | -1.08 | 160.82 | 0.0567 | 960.0 | 765.9 | |
| 0.00 | 3.25 | 0.00 | 1.62 | -11.02 | 22.37 | -1.12 | 166.98 | 0.0852 | 946.0 | 797.9 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.95 | 22.27 | -1.21 | 168.17 | 0.1014 | 880.0 | 701.5 | |
| 0.00 | 4.66 | 0.00 | 2.31 | -9.39 | 22.20 | -1.29 | 157.78 | 0.0590 | 1041.0 | 883.1 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -10.53 | 22.16 | -1.33 | 162.96 | 0.0780 | 992.0 | 814.8 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -9.06 | 21.86 | -1.62 | 150.09 | 0.0563 | 751.0 | 539.7 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -10.74 | 21.76 | -1.72 | 159.22 | 0.0837 | 871.0 | 682.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.77 | 21.33 | -2.15 | 154.80 | 0.0871 | 1081.0 | 945.5 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.53 | 21.31 | -2.18 | 153.25 | 0.0835 | 794.0 | 696.3 | |
| 0.44 | 1.49 | 0.22 | 0.74 | -10.80 | 21.12 | -2.37 | 152.81 | 0.0891 | 1001.8 | 885.5 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -8.82 | 21.14 | -2.35 | 137.62 | 0.0604 | 713.0 | 597.2 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -8.94 | 20.95 | -2.53 | 136.80 | 0.0641 | 754.0 | 572.1 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -9.36 | 20.89 | -2.60 | 140.28 | 0.0703 | 1026.0 | 860.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.97 | 20.50 | -2.99 | 152.80 | 0.1122 | -786.0 | -538.5 | |
| 0.00 | 1.76 | 0.00 | 0.88 | -11.88 | 20.25 | -3.24 | 150.53 | 0.1128 | -1032.0 | -838.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -11.31 | 20.26 | -3.23 | 147.84 | 0.1042 | -627.0 | -359.8 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.90 | 19.24 | -4.25 | 143.58 | 0.1227 | -877.0 | -665.6 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.25 | 18.52 | -4.96 | 141.03 | 0.1350 | -799.0 | -574.8 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -12.89 | 18.48 | -5.01 | 143.63 | 0.1441 | -849.0 | -593.9 | |
| 0.00 | 2.46 | 0.00 | 1.23 | -11.68 | 18.47 | -5.01 | 137.86 | 0.1281 | -589.0 | -614.3 | |
| 0.00 | 8.00 | 0.00 | 4.01 | -12.30 | 16.86 | -6.63 | 133.09 | 0.1552 | -697.0 | -770.0 | |
| 0.00 | 4.92 | 0.00 | 2.47 | -13.08 | 16.68 | -6.81 | 135.90 | 0.1666 | -1000.0 | -917.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.76 | 16.58 | -6.91 | 117.46 | 0.1341 | -839.0 | -745.4 | |
| 0.00 | 4.57 | 0.00 | 2.29 | -10.27 | 16.54 | -6.95 | 120.63 | 0.1390 | -1045.0 | -936.8 | |
| 6.60 | 21.46 | 3.30 | 10.73 | -10.00 | 16.39 | -7.09 | 118.39 | 0.1389 | -1223.9 | -859.5 | |
| 0.88 | 429.21 | 0.44 | 215.71 | -11.86 | 16.22 | -7.27 | 128.43 | 0.1587 | -997.6 | -487.8 | |
| 0.88 | -61.00 | 0.44 | -61.00 | -12.13 | 16.15 | -7.33 | 129.50 | 0.1625 | -1035.7 | 999999 | |
| 0.97 | -61.00 | 0.49 | -61.00 | -11.62 | 16.14 | -7.35 | 126.87 | 0.1574 | -987.1 | 999999 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -9.97 | 16.06 | -7.43 | 117.11 | 0.1438 | -696.0 | -577.4 | |
| 1.76 | -61.00 | 0.88 | -61.00 | -12.13 | 15.97 | -7.52 | 128.80 | 0.1649 | -1085.8 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -13.97 | 15.75 | -7.74 | 135.90 | 0.1886 | -857.0 | -647.0 | |
| 8.62 | -61.00 | 4.33 | -61.00 | -12.28 | 15.74 | -7.74 | 128.71 | 0.1695 | -1204.5 | 999999 | |
| 34.91 | -61.00 | 17.53 | -61.00 | -11.73 | 15.64 | -7.85 | 125.70 | 0.1654 | -1350.7 | 999999 | |
| 21.63 | -61.00 | 10.88 | -61.00 | -12.39 | 15.43 | -8.05 | 128.17 | 0.1749 | -1074.3 | 999999 | |
| 4.75 | -61.00 | 2.39 | -61.00 | -11.94 | 15.35 | -8.13 | 125.77 | 0.1714 | -1127.7 | 999999 | |
| 2.90 | -61.00 | 1.46 | -61.00 | -10.56 | 15.36 | -8.12 | 118.58 | 0.1589 | -1164.0 | 999999 | |
| 5.45 | -61.00 | 2.73 | -61.00 | -10.26 | 15.34 | -8.15 | 116.80 | 0.1569 | -1108.3 | 999999 | |
| 4.48 | -61.00 | 2.25 | -61.00 | -11.01 | 15.23 | -8.26 | 120.64 | 0.1646 | -1118.7 | 999999 | |
| 1.58 | -61.00 | 0.80 | -61.00 | -11.60 | 14.87 | -8.62 | 122.63 | 0.1751 | -864.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
