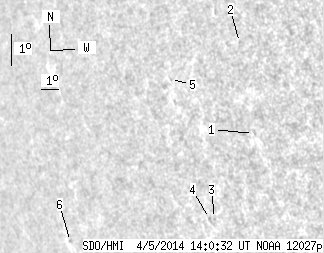

SDO HMI 2014-04-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.01 | 0.00 | 4.63 | -17.19 | 325.59 | -57.90 | 106.41 | 0.8426 | 324.0 | 170.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.35 | 0.00 | 0.28 | -16.14 | 331.36 | -52.13 | 105.61 | 0.7896 | 382.0 | 380.0 | |
| 0.00 | 0.88 | 0.00 | 0.70 | -13.37 | 331.59 | -51.89 | 102.10 | 0.7852 | 543.0 | 446.9 | |
| 0.00 | 0.88 | 0.00 | 0.76 | -18.51 | 328.26 | -55.23 | 108.22 | 0.8222 | 517.0 | 440.1 | |
| 0.00 | 0.97 | 0.00 | 0.84 | -18.49 | 327.99 | -55.50 | 108.16 | 0.8247 | 496.0 | 405.6 | |
| 0.00 | 0.44 | 0.00 | 0.38 | -14.16 | 327.69 | -55.80 | 102.89 | 0.8248 | 402.0 | 377.6 | |
| 0.00 | 1.49 | 0.00 | 1.67 | -18.39 | 319.20 | -64.28 | 107.44 | 0.8980 | -396.0 | -270.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
