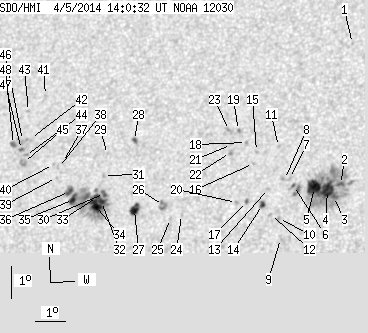

SDO HMI 2014-04-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 73.25 | 298.09 | 41.46 | 168.73 | 10.56 | 0.12 | -23.36 | 53.76 | 0.4829 | -218.6 | -163.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 14:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.53 | 0.00 | 0.30 | 14.94 | 4.70 | -18.79 | 41.13 | 0.4750 | 694.0 | 523.2 | |
| 1.76 | 123.37 | 0.96 | 67.65 | 10.48 | 4.65 | -18.84 | 48.34 | 0.4268 | -988.6 | -494.5 | |
| 0.79 | -2.00 | 0.43 | -2.00 | 10.11 | 4.44 | -19.04 | 49.30 | 0.4254 | -1231.1 | 999999 | |
| 14.77 | -2.00 | 8.10 | -2.00 | 10.30 | 4.24 | -19.25 | 49.26 | 0.4299 | -1157.5 | 999999 | |
| 14.68 | -2.00 | 8.08 | -2.00 | 10.41 | 3.81 | -19.67 | 49.69 | 0.4361 | -1034.0 | 999999 | |
| 0.53 | 8.44 | 0.29 | 4.66 | 10.50 | 3.12 | -20.36 | 50.50 | 0.4453 | -763.8 | -749.4 | |
| 0.00 | 1.85 | 0.00 | 1.02 | 10.73 | 2.98 | -20.51 | 50.31 | 0.4492 | -704.0 | -473.7 | |
| 0.00 | 1.23 | 0.00 | 0.68 | 10.70 | 2.82 | -20.67 | 50.57 | 0.4509 | -792.0 | -497.2 | |
| 0.00 | 1.06 | 0.00 | 0.58 | 8.87 | 2.80 | -20.68 | 53.92 | 0.4336 | -638.0 | -609.4 | |
| 0.00 | 2.02 | 0.00 | 1.11 | 9.49 | 2.70 | -20.78 | 52.89 | 0.4407 | -939.0 | -737.2 | |
| 0.00 | 1.41 | 0.00 | 0.79 | 11.75 | 2.54 | -20.94 | 49.16 | 0.4645 | -641.0 | -500.1 | |
| 0.00 | 1.49 | 0.00 | 0.83 | 9.63 | 2.43 | -21.05 | 53.00 | 0.4453 | -697.0 | -491.3 | |
| 0.00 | 1.41 | 0.00 | 0.78 | 10.44 | 2.31 | -21.17 | 51.71 | 0.4545 | -621.0 | -522.9 | |
| 2.02 | 3.34 | 1.12 | 1.85 | 9.95 | 2.15 | -21.34 | 52.79 | 0.4519 | -860.3 | -706.3 | |
| 0.00 | 1.32 | 0.00 | 0.74 | 11.63 | 1.83 | -21.66 | 50.32 | 0.4716 | -807.0 | -626.2 | |
| 0.00 | 0.88 | 0.00 | 0.49 | 11.25 | 1.76 | -21.73 | 51.04 | 0.4689 | -714.0 | -525.0 | |
| 0.53 | 2.02 | 0.29 | 1.13 | 10.07 | 1.62 | -21.87 | 53.27 | 0.4595 | -855.0 | -638.1 | |
| 0.00 | 1.23 | 0.00 | 0.69 | 11.92 | 1.47 | -22.01 | 50.29 | 0.4787 | -774.0 | -638.8 | |
| 0.00 | 1.41 | 0.00 | 0.80 | 12.32 | 1.17 | -22.31 | 50.03 | 0.4860 | -815.0 | -698.4 | |
| 0.00 | 1.93 | 0.00 | 1.08 | 10.05 | 1.29 | -22.20 | 53.71 | 0.4634 | -704.0 | -473.0 | |
| 0.00 | 0.62 | 0.00 | 0.35 | 11.88 | 0.98 | -22.51 | 50.98 | 0.4841 | -408.0 | -373.3 | |
| 0.00 | 2.20 | 0.00 | 1.24 | 11.63 | 0.97 | -22.52 | 51.41 | 0.4819 | -935.0 | -760.7 | |
| 0.00 | 3.52 | 0.00 | 2.00 | 12.33 | 0.87 | -22.61 | 50.39 | 0.4896 | -829.0 | -617.3 | |
| 0.00 | 0.70 | 0.00 | 0.40 | 9.76 | 359.49 | -24.00 | 56.33 | 0.4835 | 825.0 | 657.4 | |
| 0.00 | 1.23 | 0.00 | 0.70 | 9.65 | 359.13 | -24.36 | 56.92 | 0.4872 | 769.0 | 588.9 | |
| 0.00 | 6.33 | 0.00 | 3.60 | 10.07 | 358.86 | -24.62 | 56.49 | 0.4940 | 919.0 | 815.6 | |
| 6.86 | 9.50 | 3.93 | 5.45 | 9.99 | 357.89 | -25.59 | 57.64 | 0.5057 | 944.0 | 635.8 | |
| 1.23 | 3.34 | 0.72 | 1.94 | 12.17 | 357.69 | -25.80 | 54.29 | 0.5260 | 756.2 | 532.5 | |
| 0.00 | 0.35 | 0.00 | 0.21 | 11.77 | 356.81 | -26.68 | 55.83 | 0.5334 | -417.0 | -221.2 | |
| 2.02 | 90.75 | 1.17 | 52.84 | 10.55 | 356.82 | -26.66 | 57.78 | 0.5235 | 808.6 | 103.8 | |
| 0.00 | 1.23 | 0.00 | 0.72 | 11.11 | 356.74 | -26.75 | 56.94 | 0.5291 | 735.0 | 645.4 | |
| 3.78 | -30.00 | 2.19 | -30.00 | 10.30 | 356.74 | -26.74 | 58.26 | 0.5226 | 1065.5 | 999999 | |
| 2.55 | -30.00 | 1.48 | -30.00 | 10.46 | 356.59 | -26.89 | 58.14 | 0.5258 | 761.7 | 999999 | |
| 11.70 | -30.00 | 6.79 | -30.00 | 10.19 | 356.55 | -26.94 | 58.64 | 0.5242 | 986.3 | 999999 | |
| 4.75 | -30.00 | 2.78 | -30.00 | 10.41 | 355.77 | -27.71 | 58.99 | 0.5358 | -1040.5 | 999999 | |
| 3.43 | -30.00 | 2.01 | -30.00 | 10.67 | 355.61 | -27.88 | 58.72 | 0.5397 | -889.8 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.52 | 11.60 | 355.27 | -28.22 | 57.57 | 0.5509 | -716.0 | -595.2 | |
| 0.00 | 1.14 | 0.00 | 0.68 | 11.45 | 355.15 | -28.34 | 57.91 | 0.5513 | -639.0 | -557.7 | |
| 0.00 | 0.70 | 0.00 | 0.42 | 11.14 | 355.11 | -28.38 | 58.44 | 0.5494 | -546.0 | -415.2 | |
| 0.00 | 0.79 | 0.00 | 0.47 | 11.56 | 354.96 | -28.53 | 57.92 | 0.5543 | -421.0 | -385.3 | |
| 0.00 | 1.23 | 0.00 | 0.75 | 13.77 | 354.41 | -29.08 | 55.09 | 0.5778 | 643.0 | 535.8 | |
| 0.00 | 0.44 | 0.00 | 0.27 | 12.43 | 354.05 | -29.44 | 57.40 | 0.5719 | 482.0 | 522.2 | |
| 0.00 | 1.41 | 0.00 | 0.85 | 13.29 | 353.87 | -29.62 | 56.28 | 0.5805 | 603.0 | 534.9 | |
| 0.00 | 1.76 | 0.00 | 1.06 | 11.90 | 353.94 | -29.55 | 58.30 | 0.5693 | 806.0 | 738.5 | |
| 0.00 | 4.92 | 0.00 | 2.96 | 11.68 | 353.89 | -29.59 | 58.67 | 0.5683 | 774.0 | 736.0 | |
| 0.00 | 4.75 | 0.00 | 2.87 | 12.38 | 353.77 | -29.71 | 57.71 | 0.5748 | 820.0 | 719.3 | |
| 0.62 | 1.93 | 0.37 | 1.17 | 12.09 | 353.77 | -29.71 | 58.14 | 0.5728 | 872.7 | 764.7 | |
| 1.23 | 3.43 | 0.75 | 2.08 | 12.27 | 353.47 | -30.02 | 58.14 | 0.5777 | 786.6 | 645.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
