SDO HMI 2014-04-05 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.17 | 656.82 | 59.10 | 328.74 | -11.28 | 17.90 | -5.04 | 145.63 | 0.1373 | -41.1 | -217.3 | |
|
previous
or next observation for the same group /

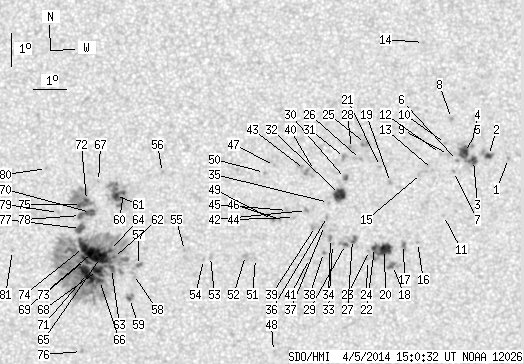

back to the solar disc SDO HMI 2014-04-05 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.41 | 0.00 | 0.70 | -8.93 | 28.30 | 5.36 | 243.16 | 0.1039 | 952.0 | 737.1 | |
| 2.20 | 5.98 | 1.09 | 2.97 | -8.84 | 27.69 | 4.75 | 241.13 | 0.0939 | 1060.5 | 880.8 | |
| 3.52 | 21.98 | 1.75 | 10.93 | -9.00 | 27.23 | 4.30 | 237.17 | 0.0885 | 1108.2 | 826.8 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -8.52 | 27.17 | 4.23 | 241.65 | 0.0833 | 770.0 | 750.7 | |
| 7.12 | -3.00 | 3.54 | -3.00 | -8.76 | 26.96 | 4.02 | 237.85 | 0.0822 | 1240.0 | 999999 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.00 | 26.75 | 3.81 | 233.97 | 0.0815 | 975.0 | 746.2 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.33 | 26.63 | 3.69 | 229.91 | 0.0834 | 854.0 | 653.1 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -7.74 | 26.55 | 3.62 | 247.61 | 0.0679 | 923.0 | 761.1 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -8.82 | 26.47 | 3.54 | 233.80 | 0.0759 | 898.0 | 762.4 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -8.49 | 26.38 | 3.44 | 236.81 | 0.0713 | 1034.0 | 751.5 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -10.66 | 26.34 | 3.40 | 217.30 | 0.0966 | 864.0 | 644.1 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -8.79 | 26.23 | 3.29 | 232.17 | 0.0722 | 843.0 | 618.2 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -9.28 | 25.99 | 3.05 | 225.07 | 0.0746 | 898.0 | 760.6 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -5.47 | 25.70 | 2.76 | 286.30 | 0.0502 | 807.0 | 593.0 | |
| 0.00 | 4.31 | 0.00 | 2.14 | -9.40 | 25.65 | 2.72 | 220.64 | 0.0722 | 269.0 | 524.1 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.47 | 25.55 | 2.61 | 206.24 | 0.1015 | 989.0 | 822.1 | |
| 0.53 | 4.92 | 0.26 | 2.45 | -11.53 | 25.12 | 2.18 | 202.16 | 0.0994 | 1111.8 | 843.3 | |
| 0.00 | 6.68 | 0.00 | 3.33 | -12.17 | 24.79 | 1.85 | 197.10 | 0.1079 | 1123.0 | 869.7 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -9.67 | 24.71 | 1.78 | 207.31 | 0.0669 | 949.0 | 729.5 | |
| 10.29 | 23.92 | 5.12 | 11.90 | -11.68 | 24.54 | 1.60 | 196.20 | 0.0986 | 1174.9 | 814.9 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.19 | 24.41 | 1.47 | 206.51 | 0.0571 | 873.0 | 648.1 | |
| 1.76 | -20.00 | 0.88 | -20.00 | -11.62 | 24.23 | 1.30 | 193.38 | 0.0962 | 1144.3 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.72 | 24.08 | 1.14 | 191.65 | 0.0972 | 484.0 | 610.6 | |
| 0.00 | 0.62 | 0.00 | 0.31 | -12.02 | 24.02 | 1.08 | 190.48 | 0.1022 | 543.0 | 564.1 | |
| 0.00 | 4.75 | 0.00 | 2.35 | -8.50 | 23.95 | 1.01 | 204.31 | 0.0428 | 801.0 | 919.2 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -8.98 | 23.80 | 0.86 | 197.53 | 0.0497 | 906.0 | 833.8 | |
| 0.00 | 5.45 | 0.00 | 2.71 | -11.38 | 23.56 | 0.62 | 186.83 | 0.0900 | 800.0 | 899.3 | |
| 0.00 | 2.46 | 0.00 | 1.22 | -8.65 | 23.53 | 0.59 | 193.83 | 0.0428 | 654.0 | 806.2 | |
| 0.88 | 4.66 | 0.44 | 2.32 | -11.53 | 23.34 | 0.41 | 184.36 | 0.0923 | 1013.3 | 772.1 | |
| 0.88 | 3.34 | 0.44 | 1.66 | -9.55 | 23.34 | 0.41 | 187.02 | 0.0578 | 1135.3 | 831.1 | |
| 0.00 | 3.78 | 0.00 | 1.87 | -8.92 | 23.31 | 0.38 | 188.06 | 0.0468 | 1096.0 | 892.5 | |
| 9.67 | 12.66 | 4.80 | 6.29 | -10.03 | 23.16 | 0.23 | 183.40 | 0.0659 | 1214.1 | 824.3 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -11.53 | 22.95 | 0.01 | 180.12 | 0.0920 | 701.0 | 601.6 | |
| 0.00 | 2.64 | 0.00 | 1.31 | -11.35 | 22.89 | -0.05 | 179.45 | 0.0889 | 1115.0 | 905.3 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.27 | 22.83 | -0.11 | 178.46 | 0.0700 | 897.0 | 745.9 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -10.69 | 22.80 | -0.14 | 178.21 | 0.0773 | 969.0 | 715.3 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -10.96 | 22.70 | -0.23 | 177.21 | 0.0821 | 1037.0 | 815.3 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.78 | 22.67 | -0.26 | 177.30 | 0.0963 | -507.0 | -464.1 | |
| 0.00 | 5.80 | 0.00 | 2.88 | -10.99 | 22.43 | -0.51 | 173.96 | 0.0830 | 874.0 | 727.8 | |
| 0.00 | 1.32 | 0.00 | 0.65 | -9.31 | 22.40 | -0.53 | 170.15 | 0.0539 | 916.0 | 682.5 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -11.95 | 22.24 | -0.69 | 173.17 | 0.1001 | 885.0 | 657.8 | |
| 0.00 | 2.11 | 0.00 | 1.05 | -10.51 | 22.16 | -0.78 | 169.72 | 0.0753 | 1139.0 | 889.2 | |
| 0.00 | 10.46 | 0.00 | 5.19 | -9.28 | 22.10 | -0.84 | 164.61 | 0.0545 | 504.0 | 784.2 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.72 | 21.79 | -1.15 | 165.75 | 0.0803 | 913.0 | 706.5 | |
| 0.00 | 2.73 | 0.00 | 1.35 | -10.51 | 21.58 | -1.36 | 162.45 | 0.0777 | 906.0 | 782.6 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -10.78 | 21.36 | -1.57 | 161.02 | 0.0834 | 916.0 | 815.1 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.16 | 21.19 | -1.75 | 149.07 | 0.0588 | 807.0 | 570.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -14.76 | 21.11 | -1.82 | 168.23 | 0.1514 | 784.0 | 522.8 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -10.78 | 21.12 | -1.82 | 158.33 | 0.0848 | 1051.0 | 893.0 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.36 | 20.88 | -2.05 | 146.75 | 0.0647 | 908.0 | 829.8 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.95 | 20.59 | -2.35 | 157.92 | 0.1072 | -748.0 | -534.4 | |
| 0.00 | 2.81 | 0.00 | 1.40 | -11.86 | 20.28 | -2.65 | 155.02 | 0.1078 | -992.0 | -732.6 | |
| 0.00 | 2.29 | 0.00 | 1.14 | -11.88 | 19.21 | -3.73 | 146.95 | 0.1172 | -779.0 | -519.8 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -11.97 | 18.99 | -3.95 | 145.89 | 0.1206 | -815.0 | -608.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.69 | 18.41 | -4.52 | 140.78 | 0.1227 | -913.0 | -743.6 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.34 | 17.78 | -5.16 | 121.25 | 0.1042 | -842.0 | -602.4 | |
| 0.00 | 4.22 | 0.00 | 2.11 | -12.13 | 16.99 | -5.95 | 135.32 | 0.1448 | -1037.0 | -855.0 | |
| 0.00 | 2.46 | 0.00 | 1.23 | -12.40 | 16.83 | -6.11 | 135.88 | 0.1500 | -572.0 | -641.0 | |
| 0.97 | 5.28 | 0.49 | 2.65 | -13.12 | 16.68 | -6.25 | 138.47 | 0.1607 | -981.1 | -841.3 | |
| 0.97 | 27.61 | 0.48 | 13.79 | -9.93 | 16.58 | -6.36 | 120.50 | 0.1272 | -1089.5 | -876.2 | |
| 3.43 | -60.00 | 1.71 | -60.00 | -10.01 | 16.33 | -6.61 | 120.16 | 0.1316 | -1295.8 | 999999 | |
| 0.26 | 435.50 | 0.13 | 218.60 | -11.88 | 16.22 | -6.71 | 130.66 | 0.1515 | -1075.0 | -500.3 | |
| 2.20 | -62.00 | 1.10 | -62.00 | -12.21 | 16.15 | -6.78 | 132.02 | 0.1561 | -980.0 | 999999 | |
| 0.26 | -62.00 | 0.13 | -62.00 | -11.66 | 16.11 | -6.83 | 129.08 | 0.1507 | -1060.7 | 999999 | |
| 14.24 | -62.00 | 7.14 | -62.00 | -11.87 | 15.82 | -7.11 | 129.03 | 0.1567 | -1472.7 | 999999 | |
| 1.41 | -62.00 | 0.71 | -62.00 | -12.56 | 15.77 | -7.16 | 132.18 | 0.1650 | -948.3 | 999999 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -9.58 | 15.82 | -7.12 | 115.58 | 0.1361 | -761.0 | -590.9 | |
| 7.91 | -62.00 | 3.97 | -62.00 | -12.26 | 15.72 | -7.22 | 130.55 | 0.1623 | -1232.4 | 999999 | |
| 10.46 | -62.00 | 5.25 | -62.00 | -11.72 | 15.58 | -7.36 | 127.34 | 0.1584 | -1431.5 | 999999 | |
| 3.78 | -62.00 | 1.89 | -62.00 | -10.51 | 15.55 | -7.39 | 120.59 | 0.1475 | -1225.3 | 999999 | |
| 15.12 | -62.00 | 7.60 | -62.00 | -12.35 | 15.41 | -7.53 | 129.79 | 0.1674 | -1140.2 | 999999 | |
| 1.93 | -62.00 | 0.97 | -62.00 | -10.15 | 15.44 | -7.50 | 118.04 | 0.1462 | -1065.5 | 999999 | |
| 3.52 | -62.00 | 1.77 | -62.00 | -11.92 | 15.36 | -7.58 | 127.58 | 0.1636 | -1151.8 | 999999 | |
| 6.51 | -62.00 | 3.26 | -62.00 | -11.56 | 15.31 | -7.63 | 125.57 | 0.1606 | -1177.3 | 999999 | |
| 3.08 | -62.00 | 1.54 | -62.00 | -10.27 | 15.28 | -7.66 | 118.27 | 0.1495 | -1093.0 | 999999 | |
| 0.00 | 1.67 | 0.00 | 0.84 | -14.70 | 15.14 | -7.80 | 138.33 | 0.1983 | -828.0 | -688.6 | |
| 3.69 | -62.00 | 1.85 | -62.00 | -10.99 | 15.23 | -7.71 | 122.25 | 0.1564 | -1178.0 | 999999 | |
| 1.58 | -62.00 | 0.79 | -62.00 | -10.60 | 15.24 | -7.70 | 120.09 | 0.1528 | -1004.4 | 999999 | |
| 0.00 | 0.79 | 0.00 | 0.40 | -10.50 | 14.57 | -8.37 | 117.55 | 0.1622 | -762.0 | -605.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.17 | 14.23 | -8.70 | 109.08 | 0.1588 | -749.0 | -633.5 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -11.61 | 13.11 | -9.83 | 119.48 | 0.1930 | 840.0 | 576.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
