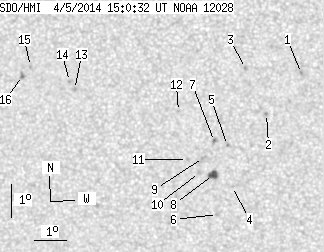

SDO HMI 2014-04-05 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.04 | 29.11 | 2.06 | 14.90 | -8.59 | 8.67 | -14.27 | 100.64 | 0.2500 | 392.5 | 273.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-04-05 15:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.62 | -6.89 | 12.51 | -10.43 | 93.94 | 0.1809 | 907.0 | 770.9 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -8.06 | 11.40 | -11.54 | 99.54 | 0.2017 | 993.0 | 832.3 | |
| 0.00 | 1.67 | 0.00 | 0.85 | -6.70 | 10.79 | -12.15 | 92.67 | 0.2102 | 952.0 | 793.2 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -10.23 | 10.27 | -12.67 | 108.32 | 0.2284 | 922.0 | 693.4 | |
| 0.00 | 0.88 | 0.00 | 0.45 | -8.99 | 10.16 | -12.78 | 102.89 | 0.2251 | -731.0 | -455.3 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -11.06 | 9.76 | -13.18 | 111.05 | 0.2408 | 730.0 | 610.1 | |
| 0.00 | 2.29 | 0.00 | 1.16 | -8.86 | 9.76 | -13.18 | 102.01 | 0.2313 | 592.0 | 554.8 | |
| 4.04 | 6.77 | 2.06 | 3.45 | -9.85 | 9.69 | -13.25 | 106.10 | 0.2361 | 1137.6 | 767.6 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -9.33 | 9.40 | -13.54 | 103.69 | 0.2389 | 811.0 | 714.4 | |
| 0.00 | 1.85 | 0.00 | 0.94 | -9.78 | 9.25 | -13.68 | 105.38 | 0.2429 | 950.0 | 724.1 | |
| 0.00 | 1.14 | 0.00 | 0.58 | -9.38 | 8.89 | -14.04 | 103.46 | 0.2473 | 932.0 | 570.1 | |
| 0.00 | 1.32 | 0.00 | 0.67 | -7.93 | 8.67 | -14.27 | 97.51 | 0.2473 | 786.0 | 558.3 | |
| 0.00 | 2.11 | 0.00 | 1.10 | -7.17 | 5.43 | -17.51 | 93.95 | 0.3005 | -913.0 | -740.8 | |
| 0.00 | 0.70 | 0.00 | 0.37 | -6.93 | 5.28 | -17.66 | 93.12 | 0.3029 | -955.0 | -825.4 | |
| 0.00 | 1.14 | 0.00 | 0.60 | -6.43 | 4.06 | -18.88 | 91.52 | 0.3230 | -657.0 | -500.0 | |
| 0.00 | 2.64 | 0.00 | 1.38 | -6.69 | 3.79 | -19.14 | 92.33 | 0.3274 | -966.0 | -774.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
