SDO HMI 2014-04-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 123.61 | 651.46 | 61.80 | 325.77 | -11.39 | 18.01 | -4.37 | 149.95 | 0.1332 | -65.2 | -211.1 | |
|
previous
or next observation for the same group /

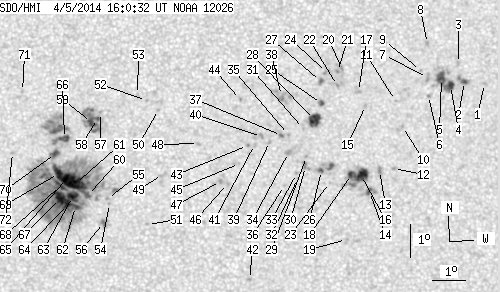

back to the solar disc SDO HMI 2014-04-05 16:00:32 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.23 | 0.00 | 0.61 | -8.89 | 28.33 | 5.94 | 245.69 | 0.1127 | 956.0 | 793.7 | |
| 1.32 | 5.63 | 0.66 | 2.80 | -8.84 | 27.72 | 5.33 | 243.82 | 0.1028 | 1082.5 | 885.0 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -8.30 | 27.53 | 5.14 | 248.06 | 0.0960 | 818.0 | 676.0 | |
| 3.96 | 25.94 | 1.97 | 12.90 | -8.96 | 27.29 | 4.91 | 240.80 | 0.0972 | 1101.4 | 833.4 | |
| 6.15 | -4.00 | 3.06 | -4.00 | -8.76 | 27.01 | 4.63 | 241.37 | 0.0913 | 1267.0 | 999999 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.27 | 26.62 | 4.24 | 234.30 | 0.0903 | 859.0 | 638.7 | |
| 0.00 | 3.78 | 0.00 | 1.88 | -8.73 | 26.59 | 4.20 | 239.30 | 0.0846 | 964.0 | 771.8 | |
| 0.00 | 2.02 | 0.00 | 1.00 | -7.71 | 26.58 | 4.19 | 250.80 | 0.0771 | 939.0 | 716.8 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -8.52 | 26.37 | 3.99 | 240.23 | 0.0796 | 872.0 | 693.7 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.20 | 25.84 | 3.46 | 220.84 | 0.0911 | 936.0 | 723.6 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -9.42 | 25.62 | 3.24 | 225.34 | 0.0787 | 775.0 | 618.5 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -11.47 | 25.58 | 3.19 | 211.07 | 0.1063 | 963.0 | 751.6 | |
| 0.00 | 4.13 | 0.00 | 2.06 | -11.53 | 25.15 | 2.77 | 207.29 | 0.1036 | 1139.0 | 834.4 | |
| 1.58 | 7.91 | 0.79 | 3.94 | -12.16 | 24.85 | 2.46 | 202.27 | 0.1114 | 1068.5 | 733.8 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.58 | 24.71 | 2.32 | 214.76 | 0.0705 | 991.0 | 787.8 | |
| 11.52 | 30.24 | 5.73 | 15.06 | -11.68 | 24.60 | 2.22 | 201.88 | 0.1020 | 1182.8 | 705.7 | |
| 0.00 | 2.46 | 0.00 | 1.22 | -9.16 | 24.49 | 2.11 | 215.85 | 0.0623 | 910.0 | 790.6 | |
| 2.90 | -16.00 | 1.44 | -16.00 | -11.65 | 24.29 | 1.91 | 199.19 | 0.0997 | 1111.5 | 999999 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -13.61 | 24.15 | 1.77 | 193.20 | 0.1318 | 761.0 | 536.5 | |
| 0.00 | 1.93 | 0.00 | 0.96 | -8.47 | 24.01 | 1.62 | 216.19 | 0.0476 | 908.0 | 773.6 | |
| 0.00 | 1.49 | 0.00 | 0.74 | -8.56 | 23.85 | 1.47 | 212.50 | 0.0474 | 1165.0 | 904.7 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -8.98 | 23.86 | 1.47 | 208.27 | 0.0538 | 1119.0 | 898.3 | |
| 0.00 | 0.88 | 0.00 | 0.44 | -11.90 | 23.62 | 1.24 | 192.17 | 0.1006 | 646.0 | 400.6 | |
| 0.00 | 2.81 | 0.00 | 1.40 | -8.59 | 23.52 | 1.14 | 205.93 | 0.0451 | 846.0 | 803.4 | |
| 1.41 | 2.99 | 0.70 | 1.48 | -9.52 | 23.37 | 0.99 | 196.71 | 0.0593 | 1088.2 | 765.6 | |
| 0.70 | 10.81 | 0.35 | 5.38 | -11.53 | 23.38 | 0.99 | 190.47 | 0.0936 | 1033.8 | 841.7 | |
| 0.44 | 3.60 | 0.22 | 1.79 | -8.86 | 23.34 | 0.95 | 200.08 | 0.0482 | 1103.2 | 891.0 | |
| 9.67 | 13.54 | 4.80 | 6.72 | -10.00 | 23.16 | 0.77 | 191.58 | 0.0666 | 1203.2 | 750.4 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -11.11 | 22.92 | 0.53 | 186.16 | 0.0851 | 1087.0 | 861.5 | |
| 0.00 | 4.22 | 0.00 | 2.10 | -11.41 | 22.89 | 0.50 | 185.47 | 0.0903 | 932.0 | 830.5 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.27 | 22.82 | 0.44 | 186.18 | 0.0703 | 821.0 | 627.4 | |
| 0.00 | 0.26 | 0.00 | 0.13 | -11.77 | 22.64 | 0.26 | 182.61 | 0.0963 | -482.0 | -456.3 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -11.62 | 22.61 | 0.23 | 182.37 | 0.0937 | 742.0 | 436.6 | |
| 0.00 | 3.78 | 0.00 | 1.88 | -10.99 | 22.37 | -0.02 | 179.78 | 0.0825 | 849.0 | 798.7 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -10.45 | 22.37 | -0.02 | 179.76 | 0.0731 | 920.0 | 787.7 | |
| 0.00 | 0.70 | 0.00 | 0.35 | -11.99 | 22.24 | -0.14 | 178.60 | 0.0999 | 918.0 | 735.9 | |
| 0.35 | 1.76 | 0.17 | 0.87 | -10.48 | 22.15 | -0.23 | 176.90 | 0.0737 | 1069.8 | 826.1 | |
| 0.00 | 13.01 | 0.00 | 6.45 | -9.28 | 22.16 | -0.23 | 175.69 | 0.0527 | 865.0 | 746.0 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -10.66 | 21.79 | -0.60 | 172.36 | 0.0774 | 898.0 | 740.2 | |
| 0.00 | 2.20 | 0.00 | 1.09 | -10.51 | 21.54 | -0.84 | 168.93 | 0.0755 | 1162.0 | 927.7 | |
| 0.00 | 1.85 | 0.00 | 0.92 | -10.75 | 21.33 | -1.06 | 166.93 | 0.0804 | 865.0 | 702.9 | |
| 0.00 | 1.49 | 0.00 | 0.75 | -14.82 | 21.15 | -1.23 | 172.03 | 0.1507 | 918.0 | 796.1 | |
| 0.00 | 1.23 | 0.00 | 0.61 | -10.78 | 21.12 | -1.27 | 164.50 | 0.0818 | 1034.0 | 912.8 | |
| 0.00 | 1.06 | 0.00 | 0.52 | -9.40 | 20.91 | -1.48 | 154.98 | 0.0603 | 944.0 | 802.9 | |
| 0.00 | 0.79 | 0.00 | 0.39 | -11.32 | 20.87 | -1.52 | 163.54 | 0.0921 | -860.0 | -567.1 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -11.92 | 20.50 | -1.89 | 161.84 | 0.1040 | -734.0 | -556.8 | |
| 0.00 | 1.67 | 0.00 | 0.83 | -11.86 | 20.28 | -2.10 | 159.74 | 0.1042 | -1026.0 | -890.4 | |
| 0.00 | 1.76 | 0.00 | 0.87 | -10.71 | 19.62 | -2.76 | 148.52 | 0.0912 | 819.0 | 675.1 | |
| 0.00 | 3.34 | 0.00 | 1.67 | -11.64 | 18.51 | -3.88 | 144.71 | 0.1152 | -505.0 | -613.4 | |
| 0.00 | 1.41 | 0.00 | 0.70 | -9.68 | 18.41 | -3.97 | 131.10 | 0.0911 | -783.0 | -667.9 | |
| 0.00 | 1.58 | 0.00 | 0.79 | -13.14 | 18.02 | -4.37 | 148.24 | 0.1415 | -892.0 | -649.7 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.41 | 18.05 | -4.33 | 126.34 | 0.0930 | -976.0 | -739.1 | |
| 0.00 | 1.14 | 0.00 | 0.57 | -9.22 | 17.78 | -4.61 | 123.12 | 0.0951 | -60.0 | -110.3 | |
| 0.00 | 1.06 | 0.00 | 0.53 | -12.49 | 16.86 | -5.52 | 139.16 | 0.1444 | -806.0 | -646.4 | |
| 0.00 | 1.23 | 0.00 | 0.62 | -12.34 | 16.80 | -5.58 | 138.15 | 0.1431 | -941.0 | -801.4 | |
| 0.00 | 3.96 | 0.00 | 1.98 | -13.06 | 16.66 | -5.72 | 140.69 | 0.1541 | -1115.0 | -918.7 | |
| 0.00 | 1.32 | 0.00 | 0.66 | -9.75 | 16.64 | -5.74 | 121.78 | 0.1166 | -845.0 | -625.5 | |
| 1.06 | 31.91 | 0.53 | 15.93 | -9.93 | 16.55 | -5.84 | 122.67 | 0.1196 | -1117.8 | -878.3 | |
| 4.66 | -58.00 | 2.33 | -58.00 | -10.05 | 16.36 | -6.03 | 122.69 | 0.1234 | -1306.4 | 999999 | |
| 1.85 | 425.17 | 0.92 | 213.15 | -12.24 | 16.19 | -6.20 | 134.74 | 0.1492 | -961.9 | -502.4 | |
| 18.99 | -60.00 | 9.51 | -60.00 | -11.88 | 15.83 | -6.56 | 131.31 | 0.1495 | -1434.7 | 999999 | |
| 2.90 | -60.00 | 1.46 | -60.00 | -12.57 | 15.81 | -6.58 | 134.61 | 0.1577 | -915.9 | 999999 | |
| 8.88 | -60.00 | 4.45 | -60.00 | -12.27 | 15.72 | -6.66 | 132.82 | 0.1552 | -1253.6 | 999999 | |
| 5.45 | -60.00 | 2.74 | -60.00 | -12.51 | 15.56 | -6.82 | 133.28 | 0.1600 | -1105.5 | 999999 | |
| 7.47 | -60.00 | 3.74 | -60.00 | -11.72 | 15.55 | -6.83 | 129.38 | 0.1514 | -1466.1 | 999999 | |
| 3.87 | -60.00 | 1.94 | -60.00 | -10.52 | 15.52 | -6.86 | 122.45 | 0.1399 | -1225.5 | 999999 | |
| 11.69 | -60.00 | 5.87 | -60.00 | -12.32 | 15.35 | -7.03 | 131.57 | 0.1606 | -1151.3 | 999999 | |
| 5.80 | -60.00 | 2.91 | -60.00 | -11.93 | 15.36 | -7.02 | 129.69 | 0.1562 | -1140.7 | 999999 | |
| 8.00 | -60.00 | 4.01 | -60.00 | -11.57 | 15.31 | -7.07 | 127.62 | 0.1530 | -1190.1 | 999999 | |
| 2.99 | -60.00 | 1.50 | -60.00 | -10.97 | 15.23 | -7.15 | 124.03 | 0.1482 | -1202.7 | 999999 | |
| 0.00 | 0.97 | 0.00 | 0.48 | -9.09 | 14.27 | -8.12 | 109.76 | 0.1488 | -764.0 | -632.8 | |
| 0.00 | 0.97 | 0.00 | 0.49 | -10.91 | 13.91 | -8.47 | 119.53 | 0.1671 | -799.0 | -573.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
